11

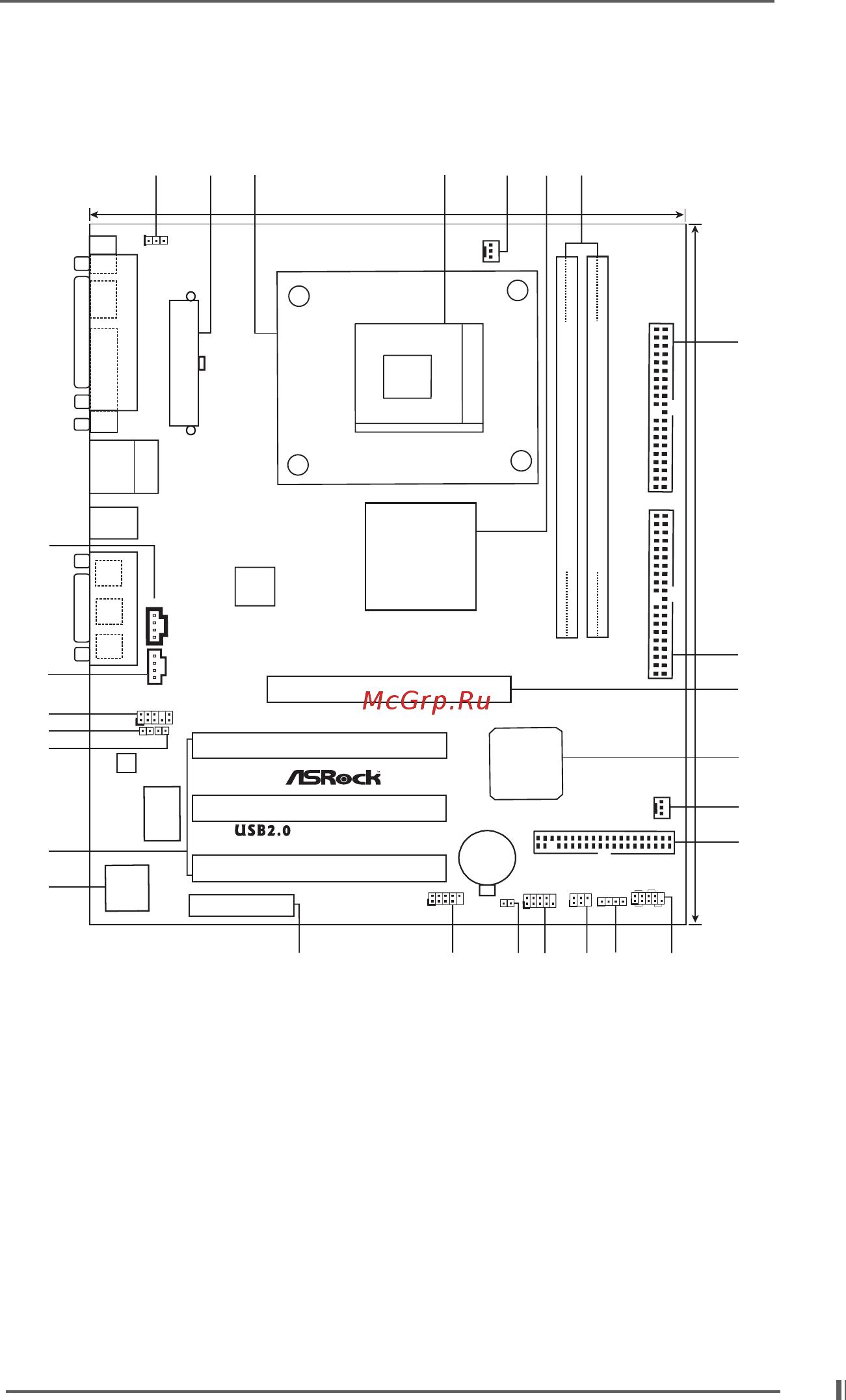

Motherboard Layout(P4i45GV)
1 PS2_USB_PWR1 Jumper 15 Chassis Speaker Header (SPEAKER1)
2 ATX Power Header (ATXPWR1) 16 Infrared Module Header (IR1)
3 CPU Heatsink Retention Module 17 COM Port Header (COM1)
4 CPU Socket 18 Clear CMOS (CLRCMOS0, 2-pin jumper)
5 CPU Fan Connector (CPU_FAN1) 19 USB 2.0 Header (USB45, Blue)
6 North Bridge Controller 20 AMR Slot (AMR1)
7 184-pin DDR DIMM Slots (DDR DIMM1- 2) 21 BIOS FWH Chip
8 Secondary IDE Connector (IDE2, Black) 22 PCI Slots (PCI 1- 3)
9 Primary IDE Connector (IDE1, Blue) 23 JL1 Jumper
10 ASRock Graphics Interface Slot (AGP1) 24 JR1 Jumper
11 South Bridge Controller 25 Front Panel Audio Header (AUDIO1)
12 Chassis Fan Connector (CHA_FAN1) 26 Internal Audio Connector: AUX1 (White)
13 Floppy Connector (FLOPPY1) 27 Internal Audio Connector: CD1 (Black)
14 System Panel Header (PANEL1)
P4i45GV
AMR1
PCI 2
PCI 1
Super
I/O
2MB
BIOS
AUDIO
CODEC
PGA478
AUX1
CD1
PCI 3
20
21
5.1CH
ATXPWR1
IDE1
HDLED RESET
PLED PWRBTN
1
PANEL 1
SPEAKER1
1
CHA_FAN1
USB45
1
CLRCMOS0
FLOPPY1
IR1
1
AGP1
1
AUDIO1
JR1 JL1
1
COM1
PS2_USB_PWR1
1
CPU_FAN1
DDR1 (64/72 bit, 184-pin module)
DDR2 (64/72 bit, 184-pin module)
Intel
ICH4
Intel
845GV
Chipset
USB 2.0
T: USB2
B: USB3
USB 2.0
T: USB0
B: USB1
Top:
RJ-45
PARALLEL PORT
VGA1
PS2
Mouse
PS2
Keyboard
GAME PORT
Line
Out
Line
In
Mic
In
4
10
1415
19
16
IDE2
REV. 5.00
PCI
LAN
20.8cm (8.2-in)
24.4cm (9.6-in)
56
7
3
21
8
9
11
12
13
17
18
22
23
24
25
26
27
CMOS
Battery
