ASRock P4i65G Motherboard

1414

EnglishEnglish

English

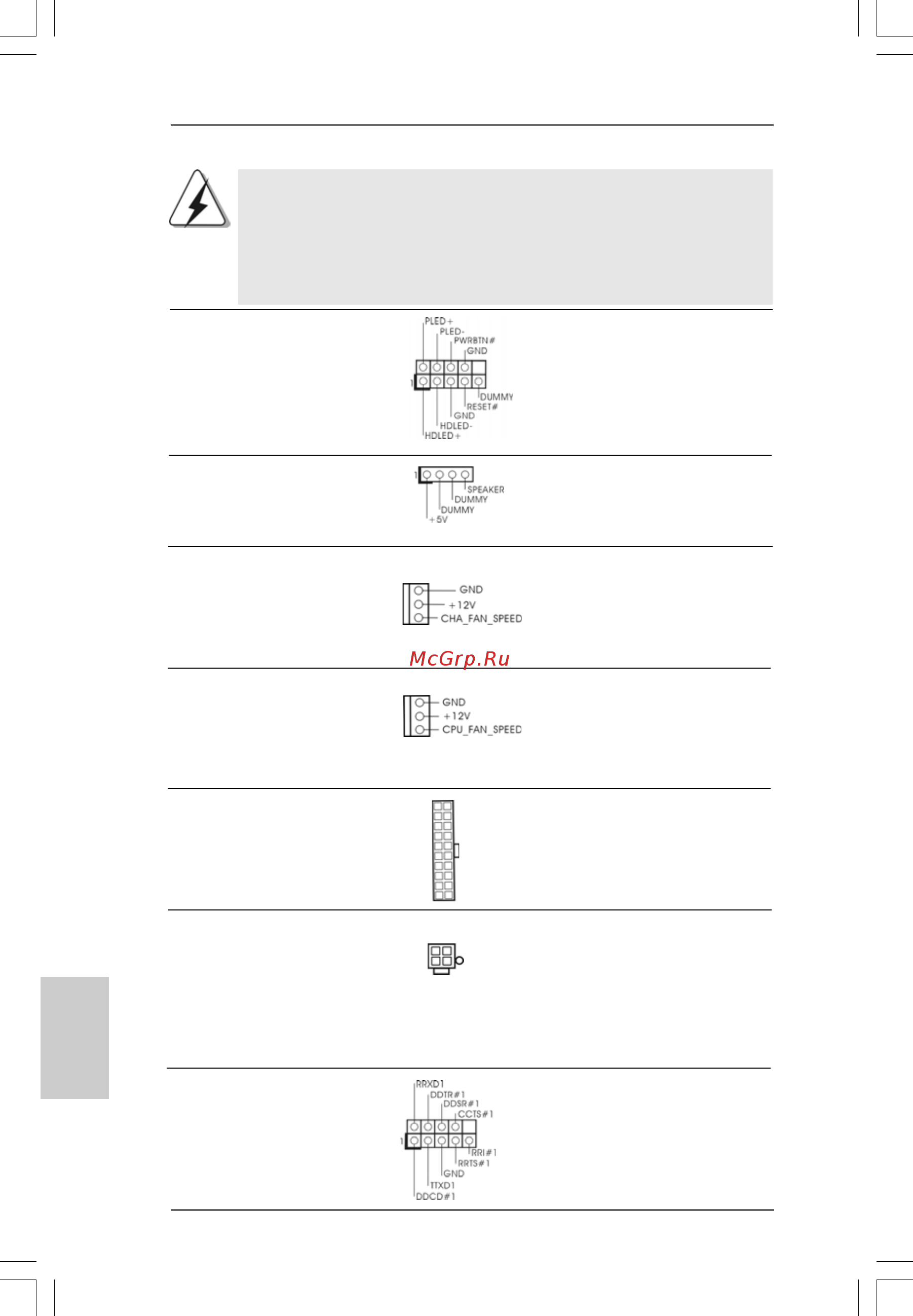

System Panel Header This header accommodates

(9-pin PANEL1) several system front panel

(see p.2 No. 17) functions.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1) speaker to this header.

(see p.2 No. 18)

Chassis Fan Connector Please connect the chassis fan

(3-pin CHA_FAN1) cable to this connector and

(see p.2 No. 16) match the black wire to the

ground pin.

CPU Fan Connector Please connect the CPU fan

(3-pin CPU_FAN1) cable to this connector and

(see p.2 No. 5) match the black wire to the

ground pin.

ATX Power Connector Please connect an ATX power

(20-pin ATXPWR1) supply to this connector.

(see p.2 No. 7)

ATX 12V Connector Please note that it is necessary

(4-pin ATX12V1) to connect a power supply with

(see p.2 No. 2) ATX 12V plug to this connector

so that it can provides sufficient

power. Failing to do so will cause

the failure to power up.

Serial port connector This COM1 connector

(9-pin COM1) supports a serial port module.

(see p.2 item 23)

1. +5VA is used for audio power only, please don’t connect it to any

other power, such as USB.

2. HD (Azalia) audio front panel and AC’97 audio front panel have

different pin-definition. Incorrect connection of the audio front panel

and the front panel audio header may cause permanent damage to

this motherboard.
