A320M-HDVP
9
English

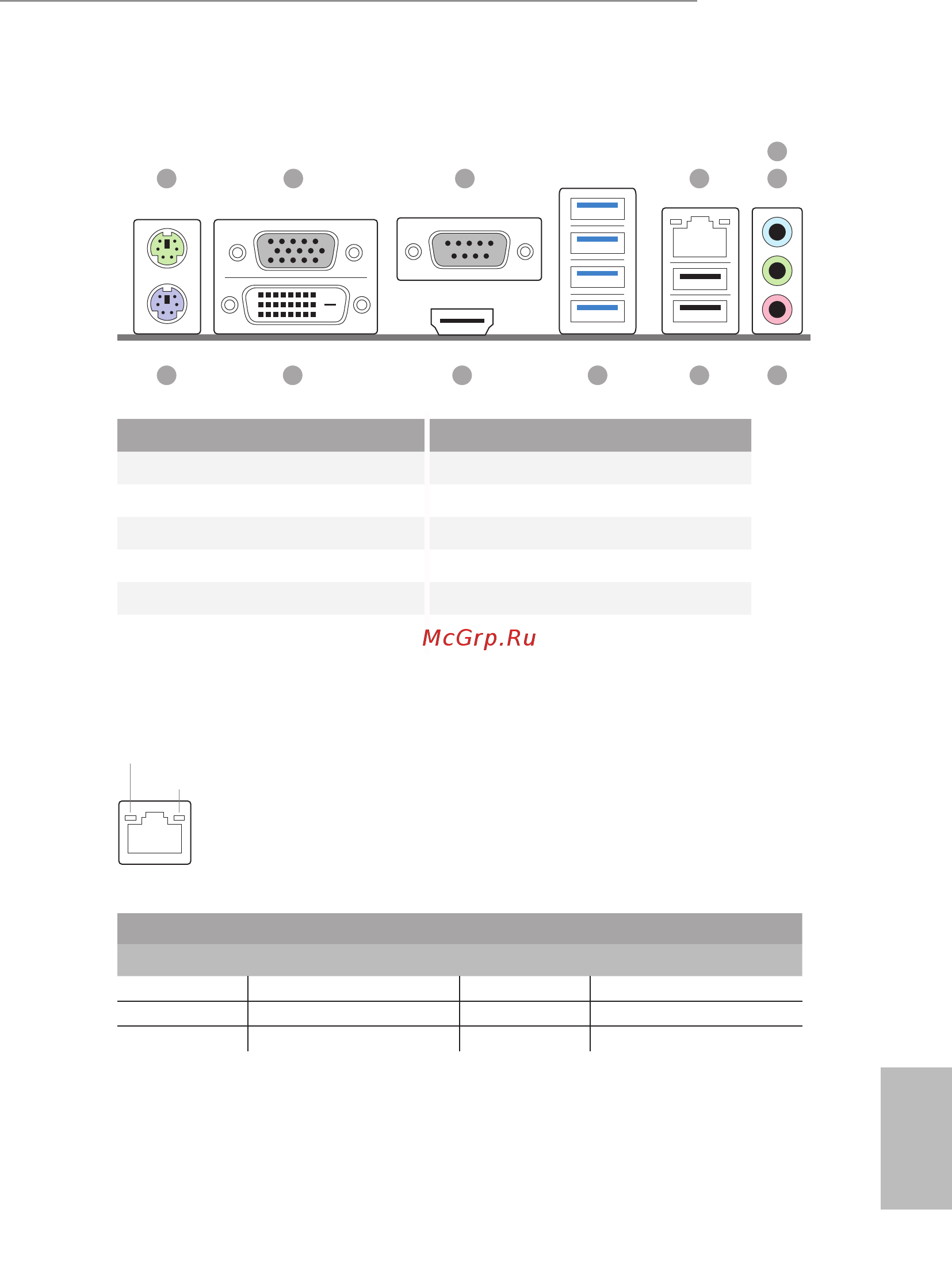

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 7 Microphone (Pink)
2 D-Sub Port 8 USB 2.0 Ports (USB_1_2)
3 COM Port 9 USB 3.2 Gen1 Ports (USB3_1_4)
4 LAN RJ-45 Port* 10 HDMI Port
5 Line In (Light Blue) 11 DVI-D Port
6 Front Speaker (Lime) 12 PS/2 Keyboard Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
1 2 3 4 6
789101112
5
ACT/LINK LED
SPEED LED
LAN Port
