60~75W Constant Current Mode LED Driver
ELG-75-C series

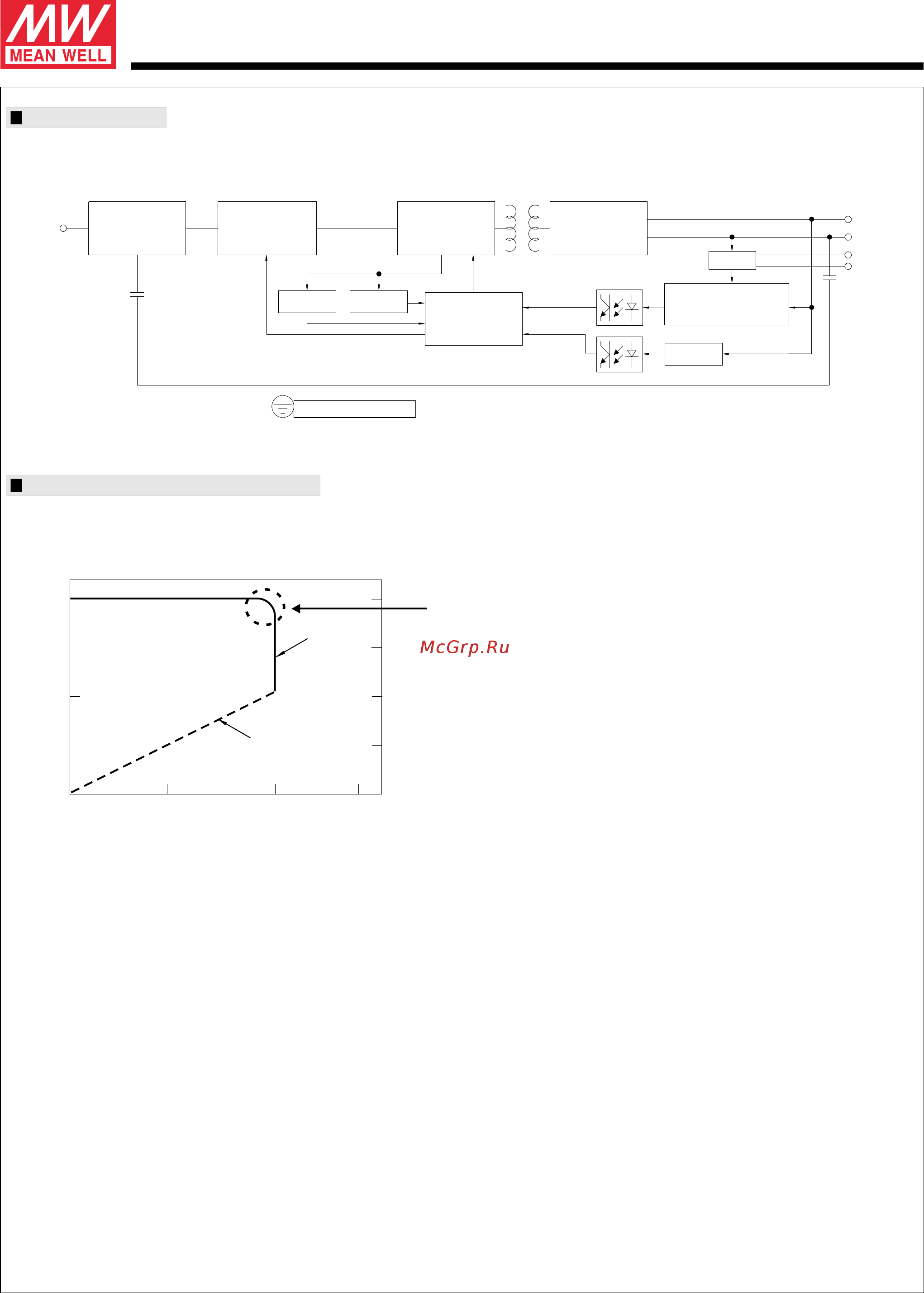

BLOCK DIAGRAM
DETECTION
PWM & PFC
CIRCUIT
O.L.P.O.T.P.
EMI FILTER
RECTIFIERS
POWER
SWITCHING
FILTER
&
RECTIFIERS
Vo+
Vo-
I/P
CONTROL
O.V.P.
&
O.L.P.
PFC
CIRCUIT
PFC fosc : 50~120KHz
PWM fosc : 60~130KHz
DIM+
(B Type)
DIM-
DRIVING METHODS OF LED MODULE
※ This series works in constant current mode to directly drive the LEDs.
Typical output current normalized by rated current (%)
In the constant current region, the highest voltage at the output of the driver
depends on the configuration of the end systems.
Should there be any compatibility issues, please contact MEAN WELL.
100
50
(min.)
Vo(%)
50
100
Io(%)
Constant
Current area
Hiccup
Protection
CASE :Protective Earth
File Name:ELG-75-C-SPEC 2018-09-30
