ASRock ALiveNF6G-DVI / ALiveNF6G-VSTA Motherboard

EnglishEnglish

English

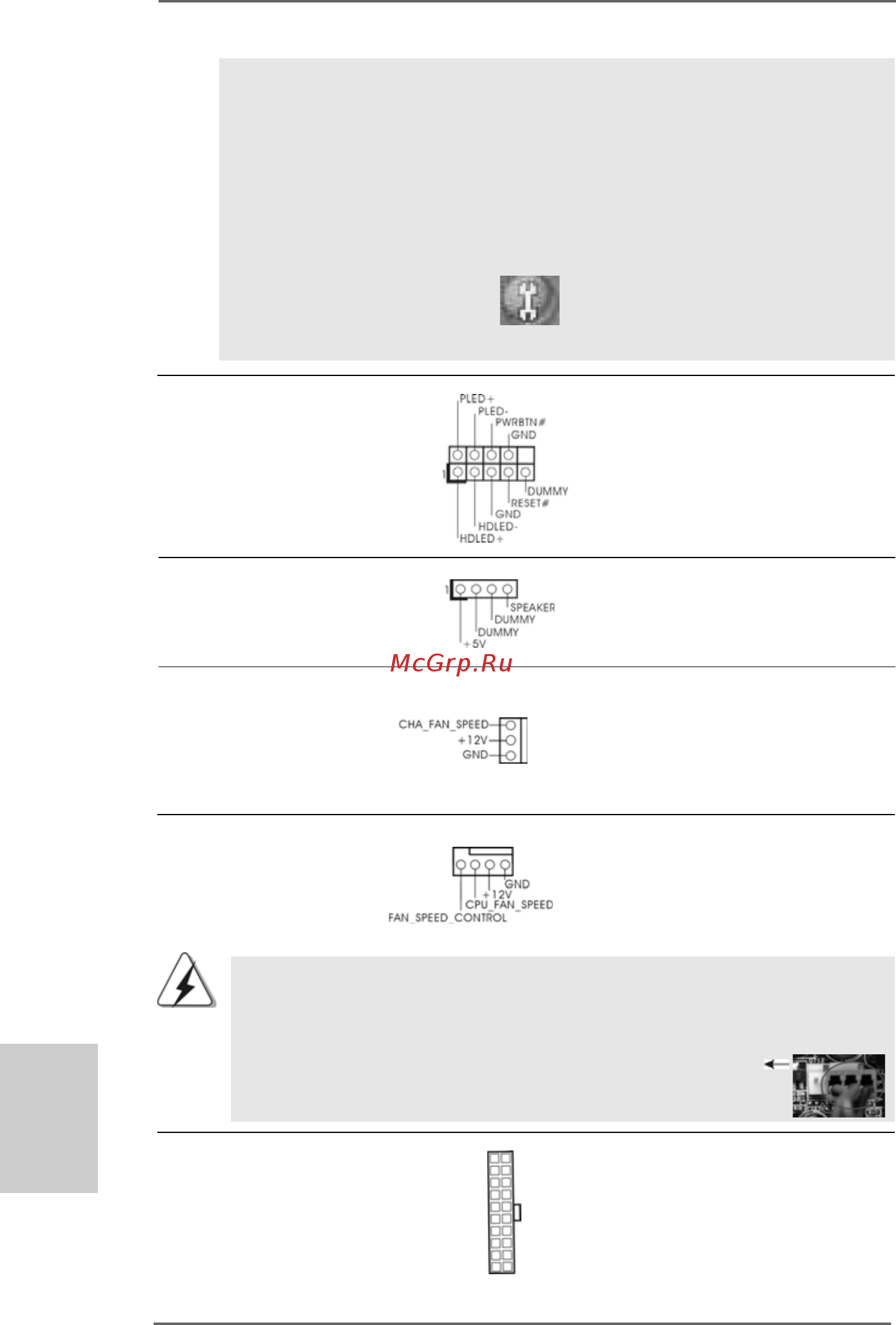

System Panel Header This header accommodates

(9-pin PANEL1) several system front panel

(see p.2/p.3 No. 18) functions.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1) speaker to this header.

(see p.2/p.3 No. 21)

Chassis Fan Connector Please connect a chassis fan

(3-pin CHA_FAN1) cable to this connector and

(see p.2/p.3 No. 15) match the black wire to the

ground pin.

CPU Fan Connector Please connect the CPU fan

(4-pin CPU_FAN1) cable to this connector and

(see p.2/p.3 No. 5) match the black wire to the

ground pin.

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

3-Pin Fan Installation

Pin 1-3 Connected

ATX Power Connector Please connect an ATX power

(20-pin ATXPWR1) supply to this connector.

(see p.2/p.3 No. 32)

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

E. Enter BIOS Setup Utility. Enter Advanced Settings, and then select

Chipset Configuration. Set the Front Panel Control option from

[Auto] to [Enabled].

F. Enter Windows system. Click the icon on the lower right hand

taskbar to enter Realtek HD Audio Manager. Click “Audio I/O”, select

“Connector Settings” , choose “Disable front panel jack

detection”, and save the change by clicking “OK”.

4 3 2 1
