ASRock ALiveNF6G-DVI / ALiveNF6G-VSTA Motherboard

EnglishEnglish

English

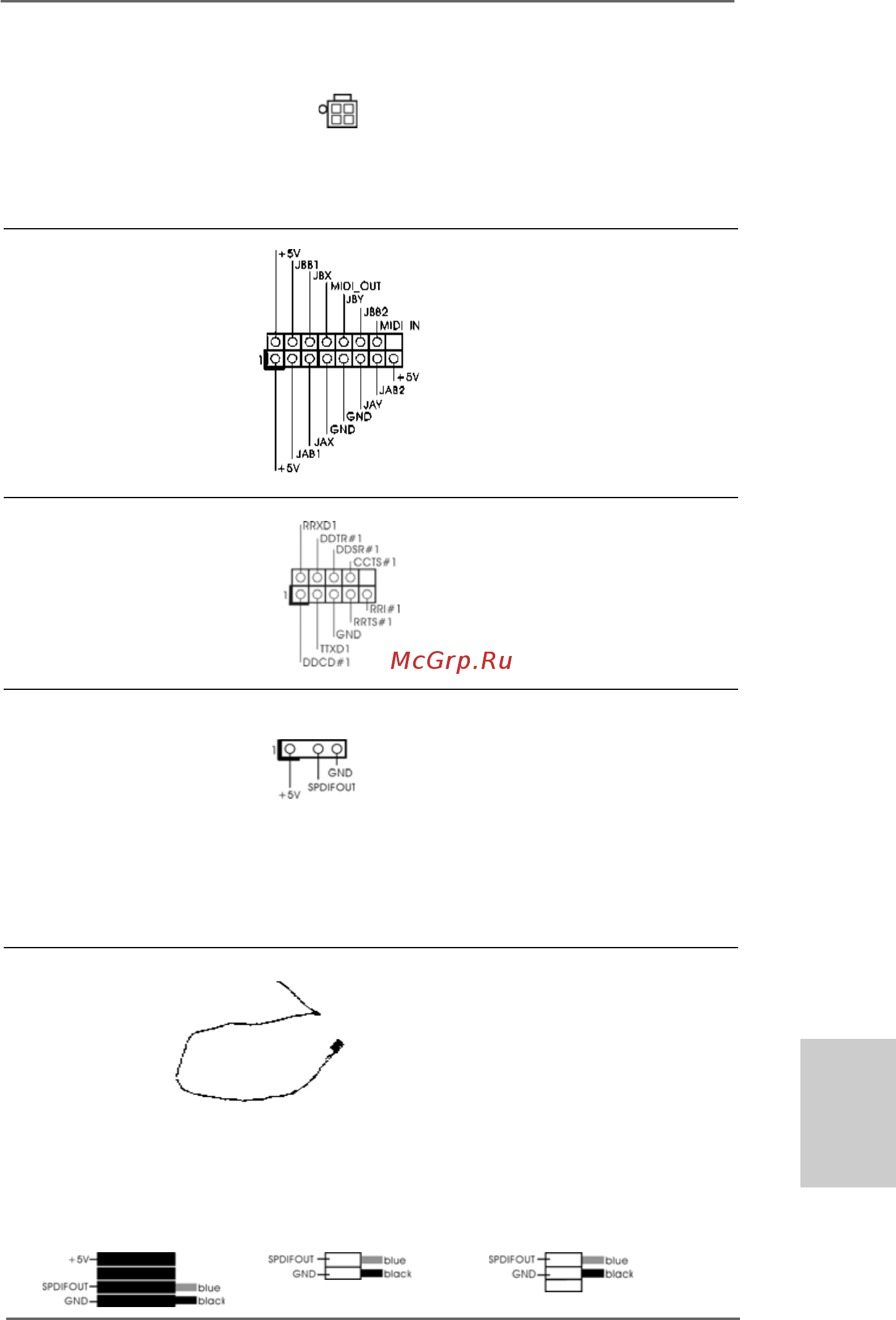

Game Port Header Connect a Game cable to this

(15-pin GAME1) header if the Game port bracket

(see p.2/p.3 No. 9) is installed.

Serial port Header This COM1 header

(9-pin COM1) supports a serial port module.

(see p.2/p.3 No.33)

HDMI_SPDIF Header HDMI_SPDIF header, providing

(3-pin HDMI_SPDIF1) SPDIF audio output to HDMI VGA

(see p.2/p.3 No. 27) card, allows the system to

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

this header.

HDMI_SPDIF Cable Please connect the black end (A)

(Optional) of HDMI_SPDIF cable to the

HDMI_SPDIF header on the

motherboard. Then connect the

white end (B or C) of

HDMI_SPDIF cable to the

HDMI_SPDIF connector of HDMI

VGA card.

A. black end B. white end (2-pin) C. white end (3-pin)

ATX 12V Power Connector Please note that it is necessary

(4-pin ATX12V1) to connect a power supply with

(see p.2/p.3 No. 2) ATX 12V plug to this connector.

Failing to do so will cause power

up failure.
