ASRock K8N68PV-GLAN Motherboard

EnglishEnglish

English

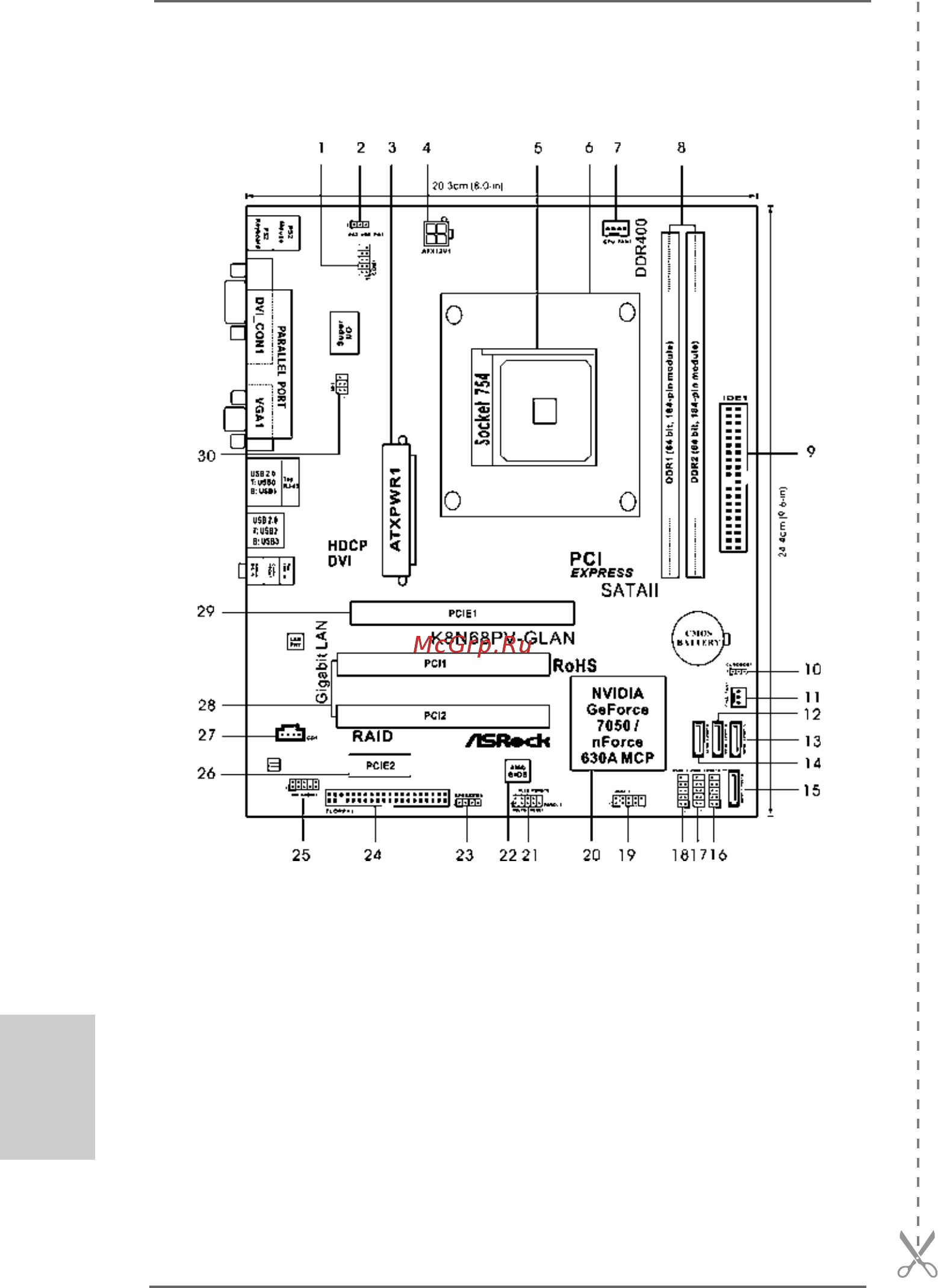

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 Serial Port Header (COM1) 16 USB 2.0 Header (USB10_11, Blue)

2 PS2_USB_PW1 Jumper 17 USB 2.0 Header (USB8_9, Blue)

3 ATX Power Connector (ATXPWR1) 18 USB 2.0 Header (USB6_7, Blue)

4 ATX 12V Power Connector (ATX12V1) 19 USB 2.0 Header (USB4_5, Blue)

5 754-Pin CPU Socket 20 NVIDIA Chipset

6 CPU Heatsink Retention Module 21 System Panel Header (PANEL1)

7 CPU Fan Connector (CPU_FAN1) 22 SPI Flash Memory (4Mb)

8 184-pin DDR DIMM Slots (DDR1-2) 23 Chassis Speaker Header (SPEAKER 1)

9 Primary IDE Connector (IDE1, Blue) 24 Floppy Connector (FLOPPY1)

10 Clear CMOS Jumper (CLRCMOS1) 25 Front Panel Audio Header (HD_AUDIO1)

11 Chassis Fan Connector (CHA_FAN1) 26 PCI Express x1 Slot (PCIE2)

12 Third SATAII Connector (SATAII_3 (PORT2)) 27 Internal Audio Connector: CD1 (Black)

13 Secondary SATAII Connector 28 PCI Slots (PCI1- 2)

(SATAII_2 (PORT1)) 29 PCI Express x16 Slot (PCIE1)

14 Fourth SATAII Connector (SATAII_4 (PORT3)) 30 DeskExpress Hot Plug Detection Header

15 Primary SATAII Connector (SATAII_1 (PORT0)) (IR1)
