ASRock 939A8X-M [17/37] 1 7 1 7 1 7 1 7

ASRock 939A8X-M [17/37] 1 7 1 7 1 7 1 7
1717
1717
17
DUMMY
GND
+5V
IRTX
IRRX
1
CD-R
GND
GND
CD-L
CD1
U SB_P WR
U SB_P WR
P +7
P-7
P +6
P-6
GN D
GN D
DUMMY
1
G ND
G ND
+ 5 VA
BACKOUT-R
BACKOUT-L
A UD -OUT-L
A UD -OUT-R
MIC-P OWER
MIC
1
connect to the SATA HDD
power connector
connect to the
power supply

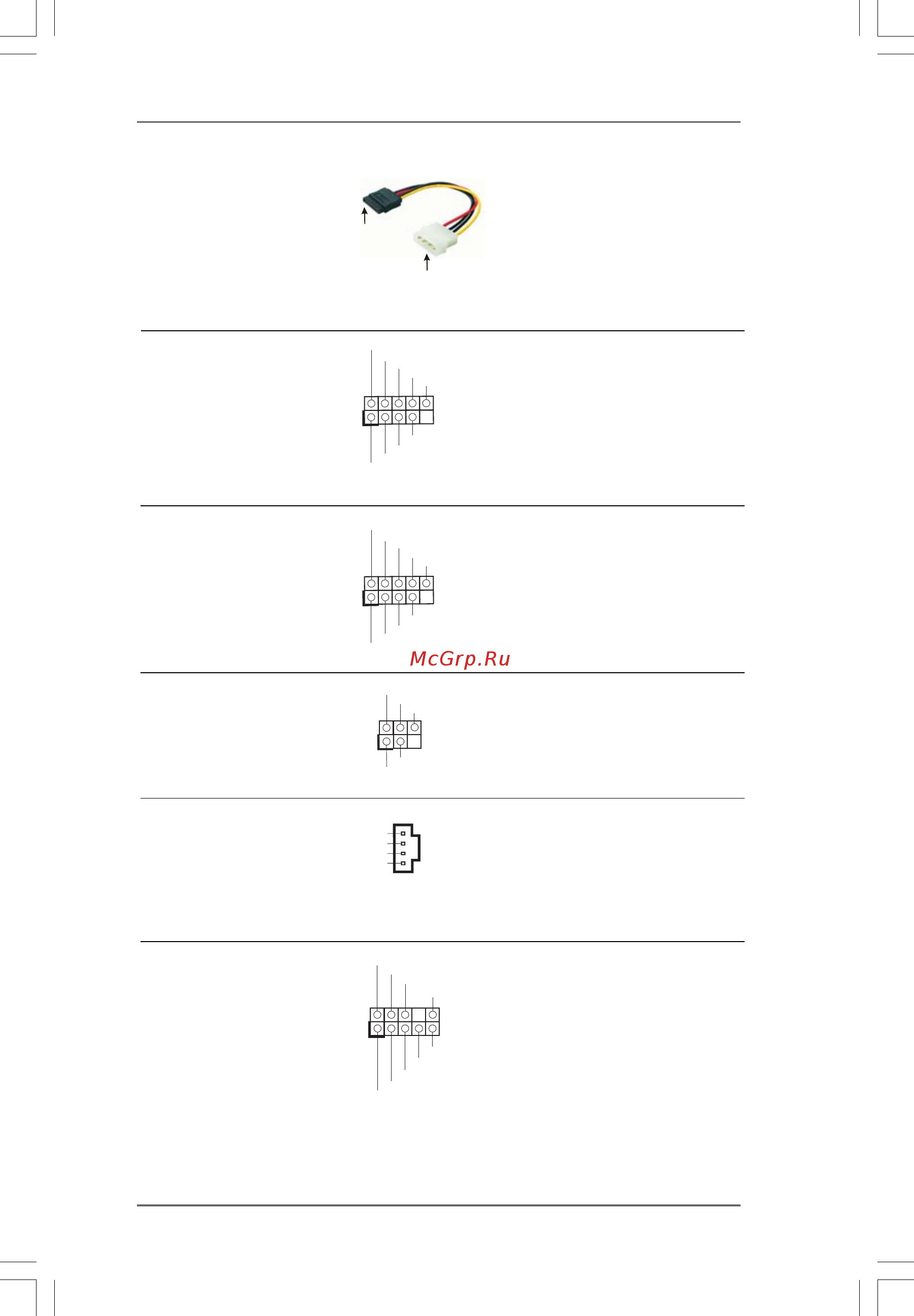

Serial ATA (SATA) Please connect the black end of
Power Cable SATA power cable to the power
(Optional) connector on the drive. Then
connect the white end of SATA
power cable to the power
connector of the power supply.
USB 2.0 Header ASRock 8CH I/O provides you
(9-pin USB67) 4 ready-to-use USB 2.0 ports on
(see p.8, No. 14) the rear panel. If the rear USB
ports are not sufficient, this
USB 2.0 header is available to
support 2 extra USB 2.0 ports.
USB 2.0 Header ASRock 8CH I/O
TM
provides you
(9-pin USB_H45) 4 ready-to-use USB 2.0 ports on
(see p.8, No. 15) the rear panel. If the rear USB
ports are not sufficient, this
USB 2.0 header is available to
support 2 extra USB 2.0 ports.
Infrared Module Header This header supports an optional
(5-pin IR1) wireless transmitting and
(see p.8, No. 2) receiving infrared module.
Internal Audio Connectors These connectors allow you
(4-pin CD1) to receive stereo audio input
(CD1: see p.8, No. 24) from sound sources such as
a CD-ROM, DVD-ROM, TV
tuner card, or MPEG card.
Front Panel Audio Header This is an interface for the front
(9-pin AUDIO1) panel audio cable that allows
(see p.8, No. 21) convenient connection and
control of audio devices.
U SB_PWR
U SB_PWR
P+5
P-5
P+4
P-4
GND
GND
DUMMY
1
