GND
+12V
C HA_FAN_SPEED
+5V
DUMMY
DUMMY
S PEAKER
1
GND
PWRB TN#
PLED-
PLED+
DUMMY
RES ET#
GND
HDLED+
HDLED-
1
GND
+12V
C PU_FAN_SPEED
MIDI_O UT
JAB 2
J B Y
J BB2
MIDI_IN
+5V
JAY
GND
GND
1
JAX
JAB 1
+5V
J B X
J BB1
+5V

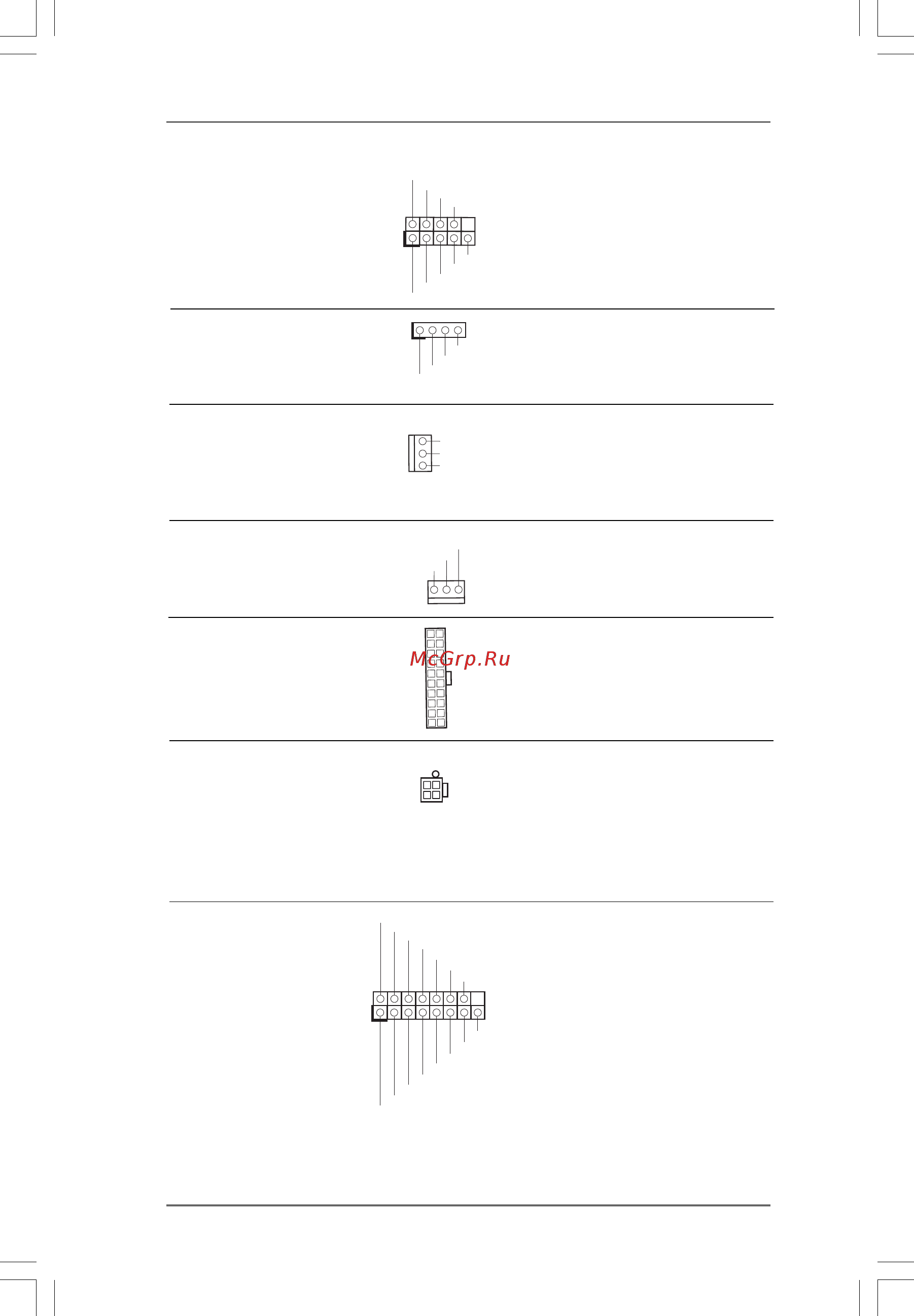

System Panel Connector This connector accommodates
(9-pin PANEL1) several system front panel
(see p.8 item 12) functions.
Chassis Speaker Connector Please connect the chassis(4-
pin SPEAKER 1) speaker to this connector.
(see p.8 item 13)
Chassis Fan Connector Please connect a chassis fan
(3-pin CHA_FAN1) cable to this connector and
(see p.8 item 11) match the black wire to the
ground pin.
CPU Fan Connector Please connect a CPU fan cable
(3-pin CPU_FAN1) to this connector and match the
(see p.8 item 5) black wire to the ground pin.
ATX Power Connector Please connect an ATX power
(20-pin ATXPWR1) supply to this connector.
(see p.8 item 25)
ATX 12V Connector Please note that it is necessary
(4-pin ATX12V1) to connect a power supply with
(see p.8 item 28) ATX 12V plug to this connector
so that it can provides sufficient
power. Failing to do so will cause
the failure to power up.
Game Connector Connect a Game cable to this
(15-pin GAME1) connector if the Game port
(see p.8 item 19) bracket is installed.
