ASRock 939S56-M Motherboard

EnglishEnglish

English

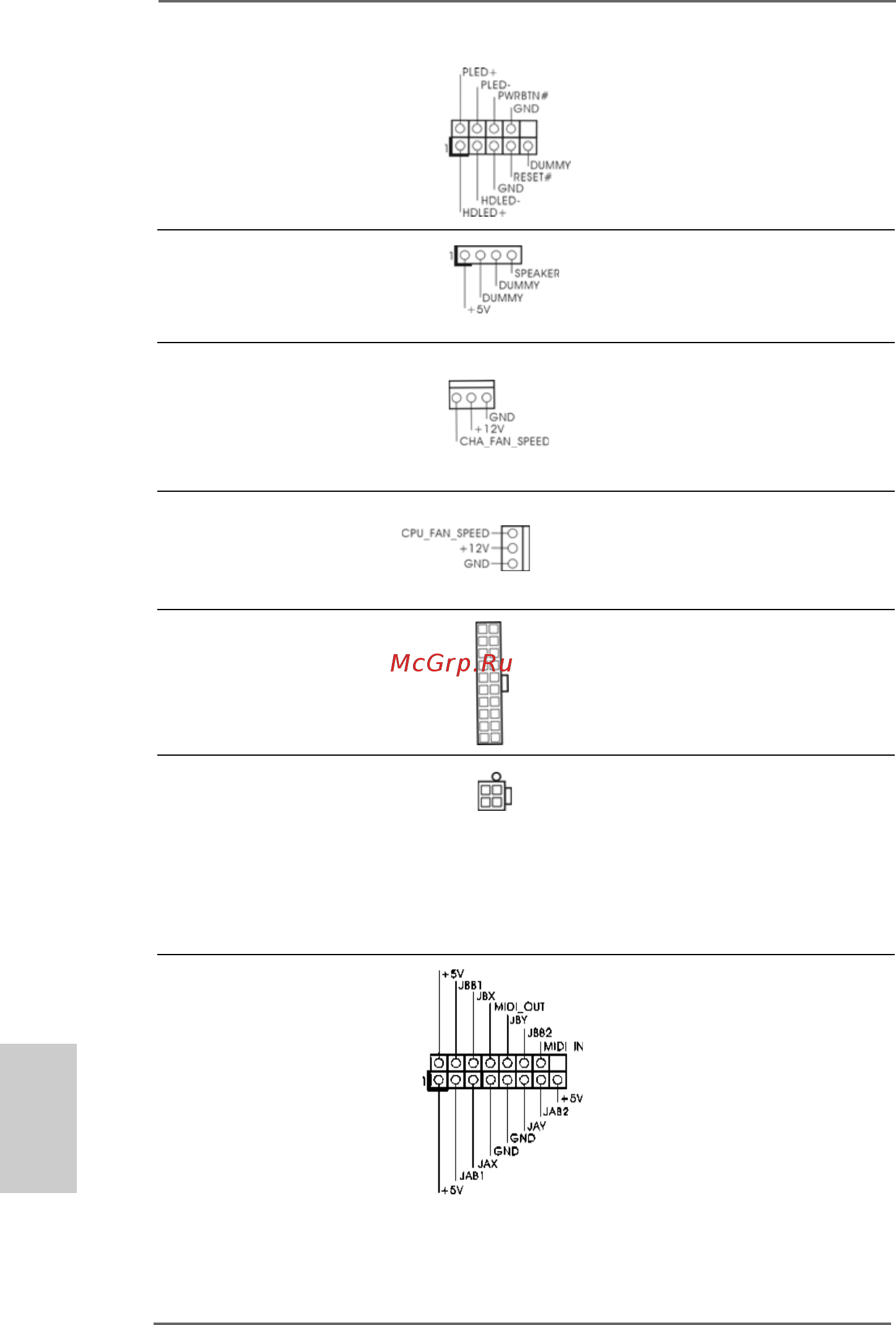

System Panel Connector This connector accommodates

(9-pin PANEL1) several system front panel

(see p.2 item 13) functions.

Chassis Speaker Connector Please connect the chassis

(4-pin SPEAKER 1) speaker to this connector.

(see p.2 item 14)

Chassis Fan Connector Please connect a chassis fan

(3-pin CHA_FAN1) cable to this connector and

(see p.2 item 15) match the black wire to the

ground pin.

CPU Fan Connector Please connect a CPU fan cable

(3-pin CPU_FAN1) to this connector and match the

(see p.2 item 30) black wire to the ground pin.

ATX Power Connector Please connect an ATX power

(20-pin ATXPWR1) supply to this connector.

(see p.2 item 29)

ATX 12V Connector Please note that it is necessary

(4-pin ATX12V1) to connect a power supply with

(see p.2 item 2) ATX 12V plug to this connector

so that it can provides sufficient

power. Failing to do so will cause

the failure to power up.

Game Connector Connect a Game cable to this

(15-pin GAME1) connector if the Game port

(see p.2 item 22) bracket is installed.
