ASRock K7VM3 [7/30] Cm 7 in
![ASRock K7VM3 [7/30] Cm 7 in](/views2/1692531/page7/bg7.png)
7
PCI 2
PCI 1
2MB
BIOS
USB45
1
IR1
1
K7VM3
SPEAKER1
1
FLOPPY1
CHA_FAN1
ATXPWR1
IDE1 IDE2
ATA133
USB 2.0
`
Super
I/O
AGP1
CPU_FAN1
1
AUDIO1
Mic
In
GAME AUDIO1
USB 2.0
Ports
LAN
Mic in
Line out
GAME AUDIO1
PARALLEL PORT
PS/2
Mouse
PS/2
Keyboard
VGA
Line
In
Line in
USB 2.0
Ports
FSB_SEL1
VIA
VT8235
VIA
KM266Pro
Chipset
PS2_USB_PWR1
1
10
DDR1 (64/72 bit, 184-pin module)
32
DDR2 (64/72 bit, 184-pin module)
CLRCMOS2
CMOS
Battery
HDLED RST
PLED PWRBTN
1
PANEL 1
JR1 JL1
AMR1
CLRCMOS1
LAN
PHY
AUDIO
CODEC
1
COM1
19.1cm (7.5 in)
24.4cm (9.6 in)
12 4
563
7
8
9
10
12
13
11
14
15
1617
18
19
2021
22
23
24
25
26
27
28
29
30
31
1
1
1
1
FID1
FID2
FID3
FID4
FID0
1
1
PWR_LED1
1

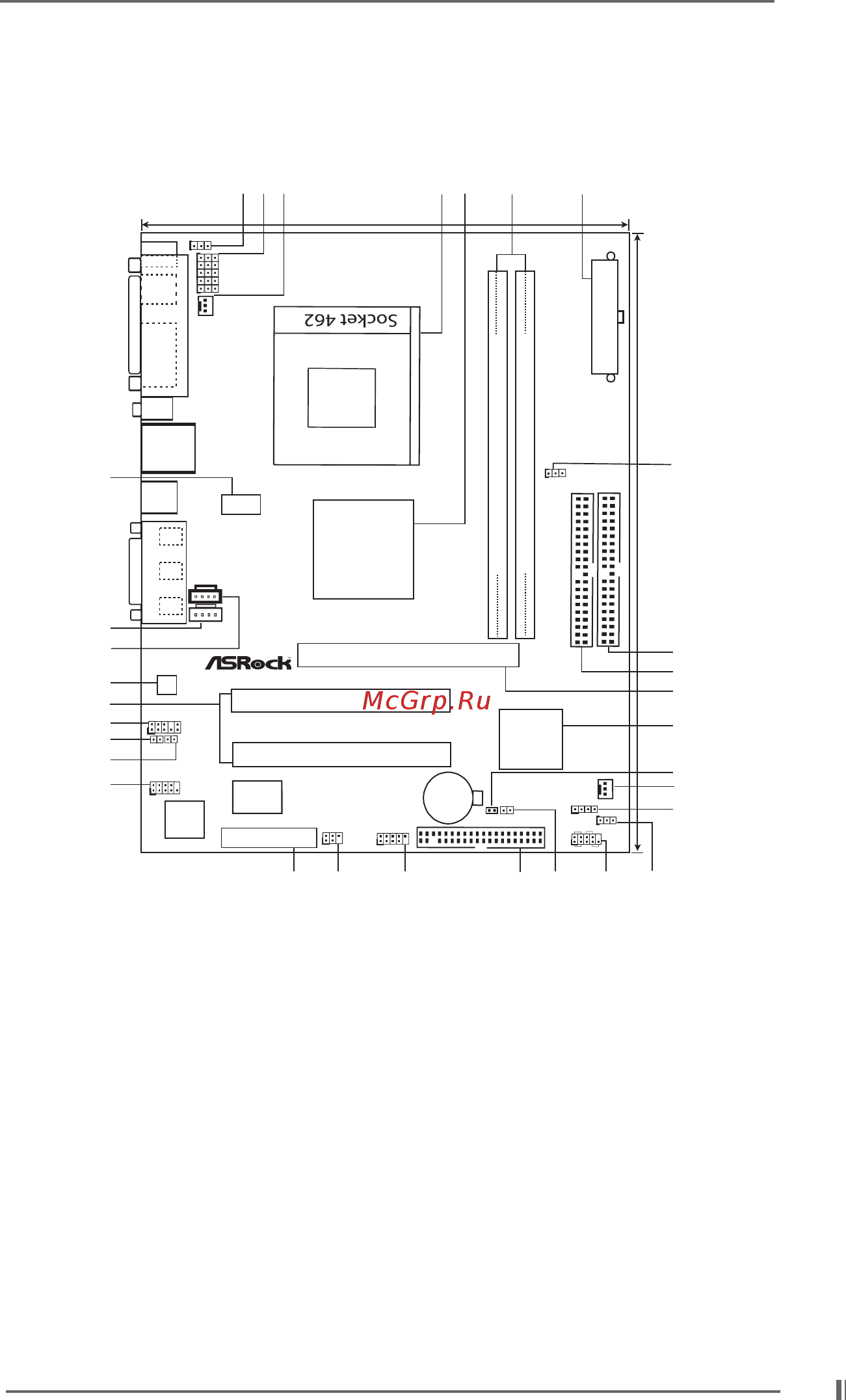

1.3 Motherboard Layout
1 PS2_USB_PWR1 jumper 2 FID Jumpers (FID0, FID1, FID2, FID3)
3 CPU fan connector (CPU_FAN1) 4 CPU socket
5 North Bridge controller 6 184-pin DDR DIMM slots (DDR 1- 2)
7 ATX power connector (ATXPWR1) 8 FSB select jumpers (FSB_SEL1)
9 Secondary IDE connector (IDE2, Black) 10 Primary IDE connector (IDE1, Blue)
11 AGP slot (AGP1) 12 South Bridge controller
13 Clear CMOS (CLRCMOS1, solder points) 14 Chassis fan connector (CHA_FAN1)
15 External speaker connector (SPEAKER 1) 16 Power LED Connector (PWR_LED1)
17 System panel connector (PANEL1) 18 Clear CMOS (CLRCMOS2, 2-pin jumper)
19 Floppy connector (FLOPPY1) 20 USB 2.0 header (USB45, Blue)
21 Infrared module connector (IR1) 22 AMR slot (AMR1)
23 Serial port connector (COM1) 24 JL1 jumper
25 JR1 jumper 26 Front panel audio connector (AUDIO1)
27 PCI slots (PCI 1- 2) 28 AUDIO CODEC
29 Internal audio connector: CD1 (Black) 30 Internal audio connector: AUX1 (White)
31 LAN PHY
