English
DeskMini 310 series

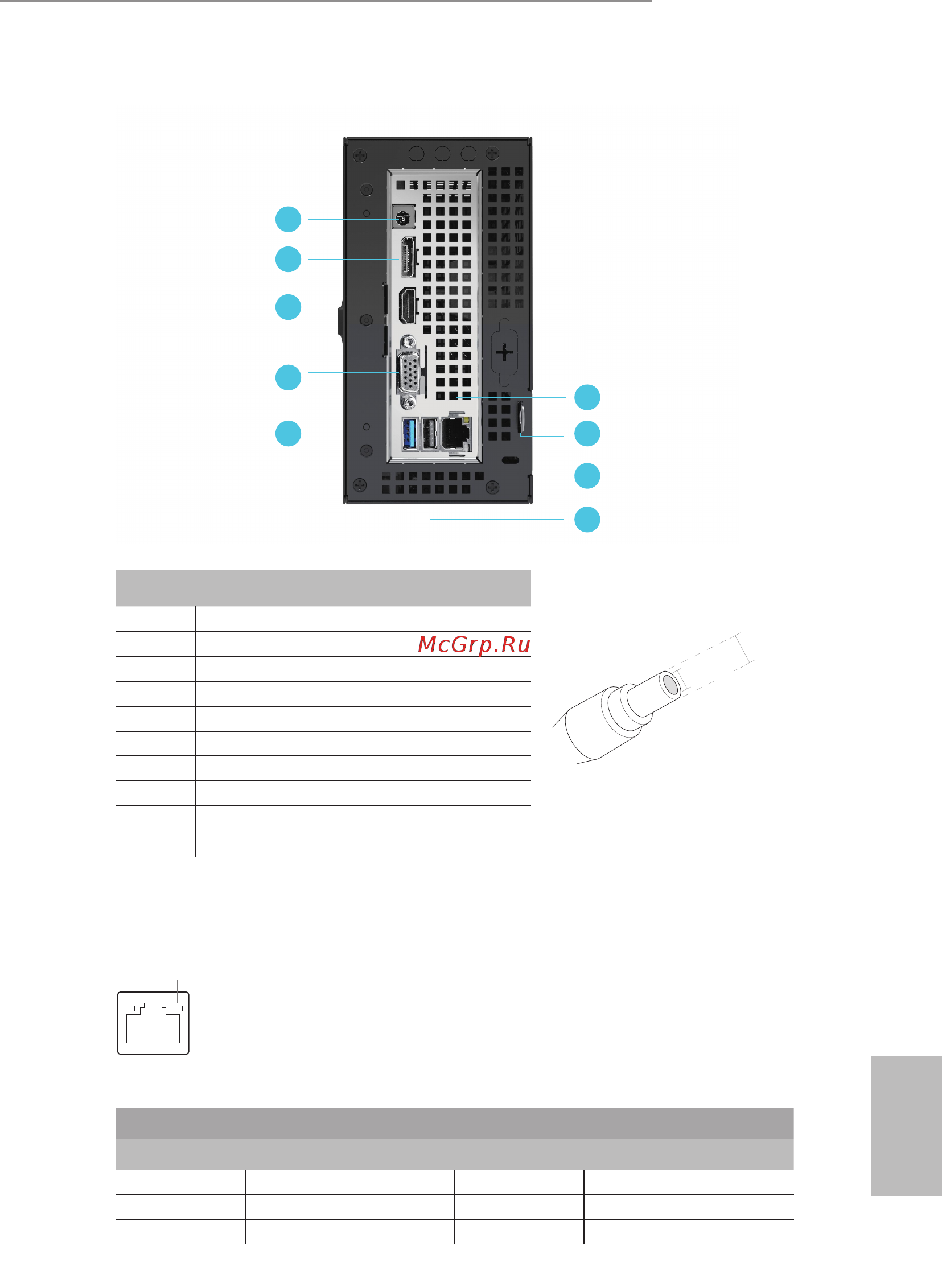

2.2 Rear View
No. Description
1 DC Jack
(Supports 19V DC Power Adapters)
*
2 Display Port
3 HDMI Port
4 D-Sub Port
5 USB 3.1 Gen1 Port
6 LAN RJ-45 Port**
7 Key Lock
8 Kensington Lock
9 USB 2.0 Port (for DeskMini 310 series)
USB 3.1 Gen1 Port ( for DeskMini 370 & 360 series)
** ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1
2
3
4
5
6
7
8
9
*Specication for DC Jack
2.5 mm
5.5 mm
