5
English
Vision HT Series

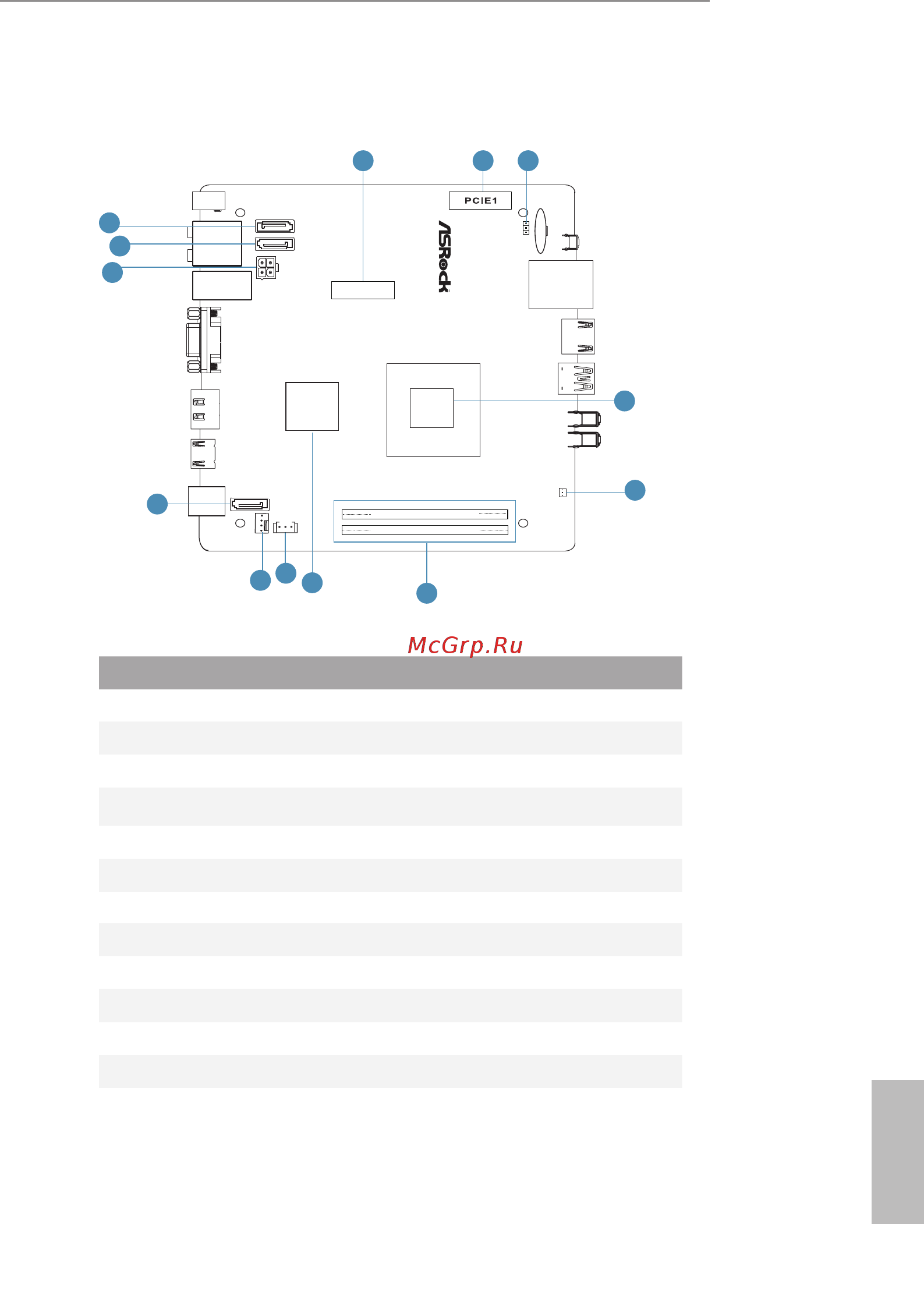

1.3 System Motherboard Components
DDR3_A1
DDR3_B1
HM87-HT
mSATA
No. Description
1 SATA 3.0 connector: For HDD SATA data cables
2 SATA 3.0 connector: For HDD SATA data cables
3 ATX5V output power connector for slim ODD & 2.5” HDD
4 SATA connector: For ODD SATA data cables
5 SATA power cable connector (+5V/+12V) for second HDD
6 Fan connector
7 HM87 PCH chipset
8 Memory socket
9 Infrared module
10 CPU
11 Clear CMOS jumper
12 Mini-PCI Express expansion slot: For WiFi module
13 mSATA slot
