ASRock IMB-1313 [20/46] 3 5v lvds
![ASRock IMB-1313 [20/46] 3 5v lvds](/views2/1693100/page20/bg14.png)
20

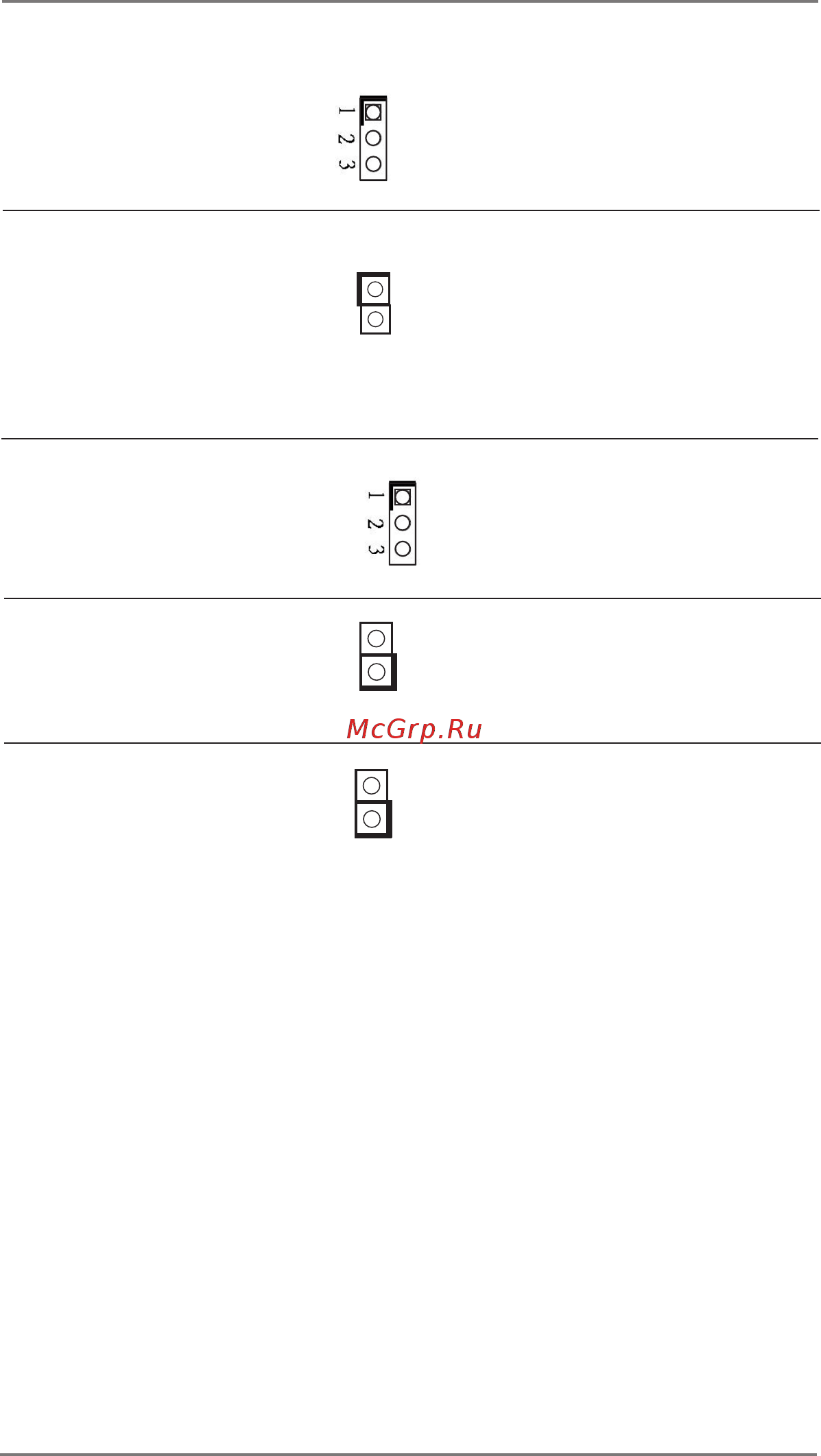

Backlight Control Level (CON_LBKLT_CTL) 1-2 : +3V (eDP)
(3-pin BLT_PWM1)
2-3 : +5V (LVDS)
(see p.9, No. 2)
LVDSBL1, LVDSBL2
(2-pin LVDSBL1)
Open : Protect LCD_BLT_VCC
(see p.9, No. 6)
Short : No Protect LCD_BLT_VCC
(2-pin LVDSBL2)
Open : Protect LCD_VCC
(see p.9, No. 5)
Short : No Protect LCD_VCC
1
Backlight Power Select (LCD_BLT_VCC) 1-2 : LCD_BLT_VCC: +5V
(3-pin BKT_PWR1)
2-3 : LCD_BLT_VCC: +12V
(see p.9, No. 7)
1
DACC1 Open : No ACC
(2-pin DACC1)
Short : ACC
(see p.9, No. 22)
PWR Loss Header Open : No Power Loss
(2-pin PWR_LOSS1)
Short : Power Loss
(see p.9, No. 27)
1
