36

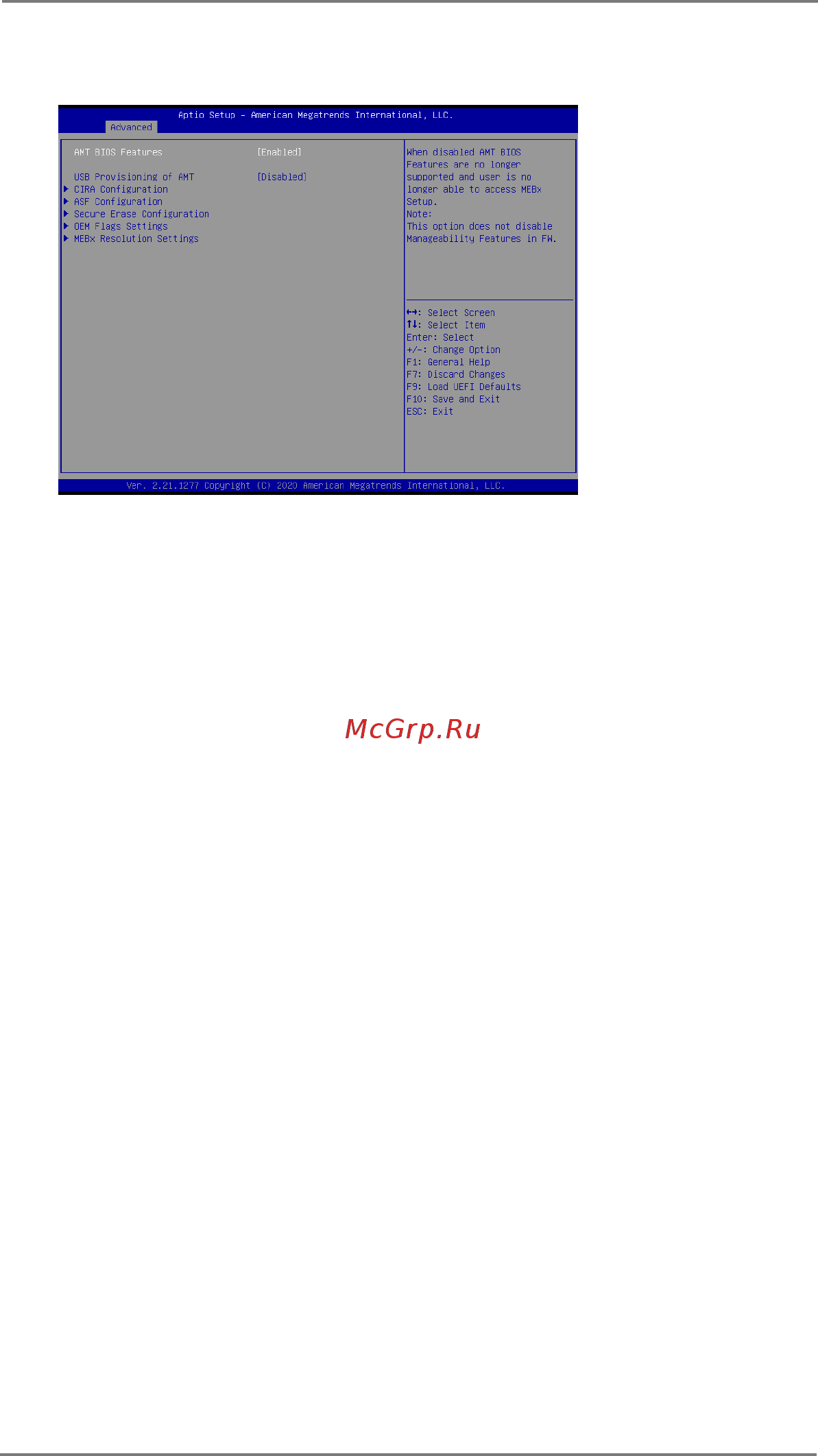

3.3.5 AMT Technology
AMT BIOS Features
Use this to enable or disable Intel(R) Active Management Technology
BIOS Extension. The default is [Enabled].
ASF support
Use this to enable or disable Alert Specication Format. The default is [En-
abled].
USB Provisioning of AMT
Use this to enable or disable AMT USB Provisioning. The default is [Dis-
abled].
CIRA Conguration
Activate Remote Assistance Process
Trigger CIRA boot. The default is [Disabled].
ASF Conguration
PET Progress
User can enable or disable PET Events progress to receive PET events or
not. The default is [Enabled].
WatchDog
Use this to enable or disable AMT WatchDog Timer. The default is [Dis-
abled].
ASF Sensors Table
Use this to enable or disable ASF Sensor Table. The default is [Disabled].
Secure Erase Conguration
Secure Erase mode
Change Secure Erase module behavior: Simulated: Performs SE flow
without erasing SSD. Real: Erase SSD.
