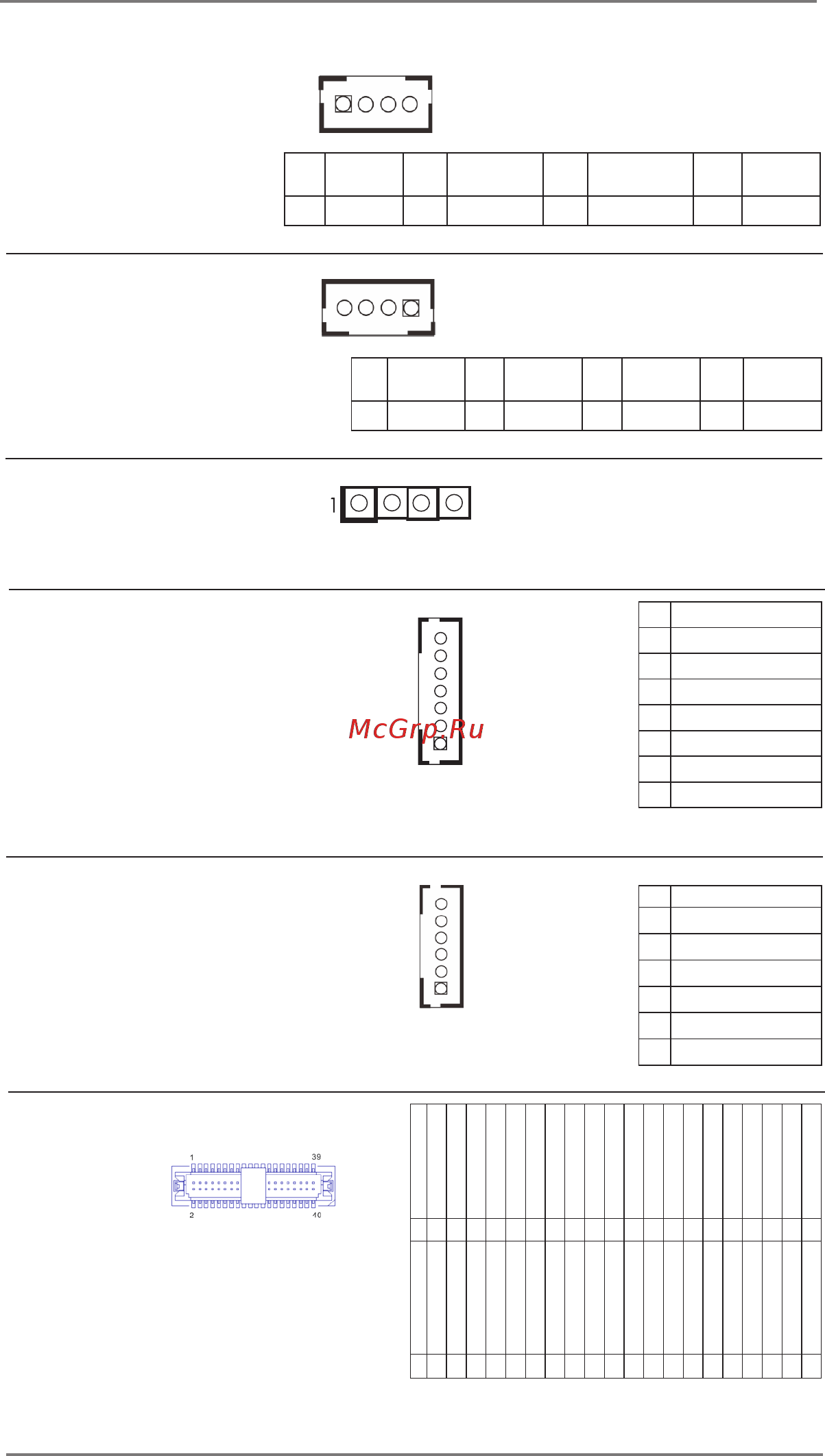

25
1
PIN
Signal
Name
PIN
Signal
Name
PIN Signal Name PIN
Signal
Name
1 +3V 2 SMB_CLK 3 SMB_DATA 4 GND
SMBUS_TEST1
(4-pin SMBUS_TEST1)
(see p.9 No. 32)
1
PIN
Signal
Name
PIN
Signal
Name
PIN
Signal
Name
PIN
Signal
Name
4
OUTRN
3
OUTRP
2
OUTLP
1
OUTLN
3W Audio Output Wafer
(4-pin SPEAKER1)
(see p.9 No. 38)
LAN LED Connectors
(4-pin LAN_LED1, LAN_LED2)
(see p.9 No. 41)
PIN Signal Name
7 GND
6 GND
5 GPIO_BLT_DW
4 GPIO_BLT_UP
3 PWRDN
2 GPIO_VOL_DW
1 GPIO_VOL_UP
1
PIN Signal Name PIN Signal Name
2 R_LVDD 1 R_LVDD
4 LDDC_CLK 3 +3V
6 LVDS_A_DATA0# 5 LDDC_DATA
8 PD (Panel Detection) 7 LVDS_A_DATA0
10 LVDS_A_DATA1 9 LVDS_A_DATA1#
12 LVDS_A_DATA2# 11 GND
14 GND 13 LVDS_A_DATA2
16 LVDS_A_DATA3 15 LVDS_A_DATA3#
18 LVDS_A_CLK# 17 GND
20 GND 19 LVDS_A_CLK
22 LVDS_B_DATA0 21 LVDS_B_DATA0#
24 LVDS_B_DATA1# 23 GND
26 GND 25 LVDS_B_DATA1
28 LVDS_B_DATA2 27 LVDS_B_DATA2#
30 LVDS_B_DATA3# 29 DPLVDD_EN
32 GND 31 LVDS_B_DATA3
34 LVDS_B_CLK 33 LVDS_B_CLK#
36 CON_LBKLT_EN_R 35 GND
38 LCD_BLT_VCC 37 CON_LBKLT_CTL_R
40 LCD_BLT_VCC 39 LCD_BLT_VCC
* PD (Panel Detection): Connect this pin to LVDS Panel’s Ground pin to detect Panel detection.
PIN Signal Name
1 GND
2 GND
3 CON_LBKLT_CTL
4 CON_LBKLT_EN
5 LCD_BLT_VCC
6 LCD_BLT_VCC
1
Backlight & Amp Volume Control
(7-pin BLT_VOL1)
(see p.9 No. 4)
Inverter Power Control Wafer
(6-pin BLT_PWR1)
(see p.9 No. 5)
LVDS Panel Connector
(40-pin LVDS1)
(see p.9 No. 3)
