24
*

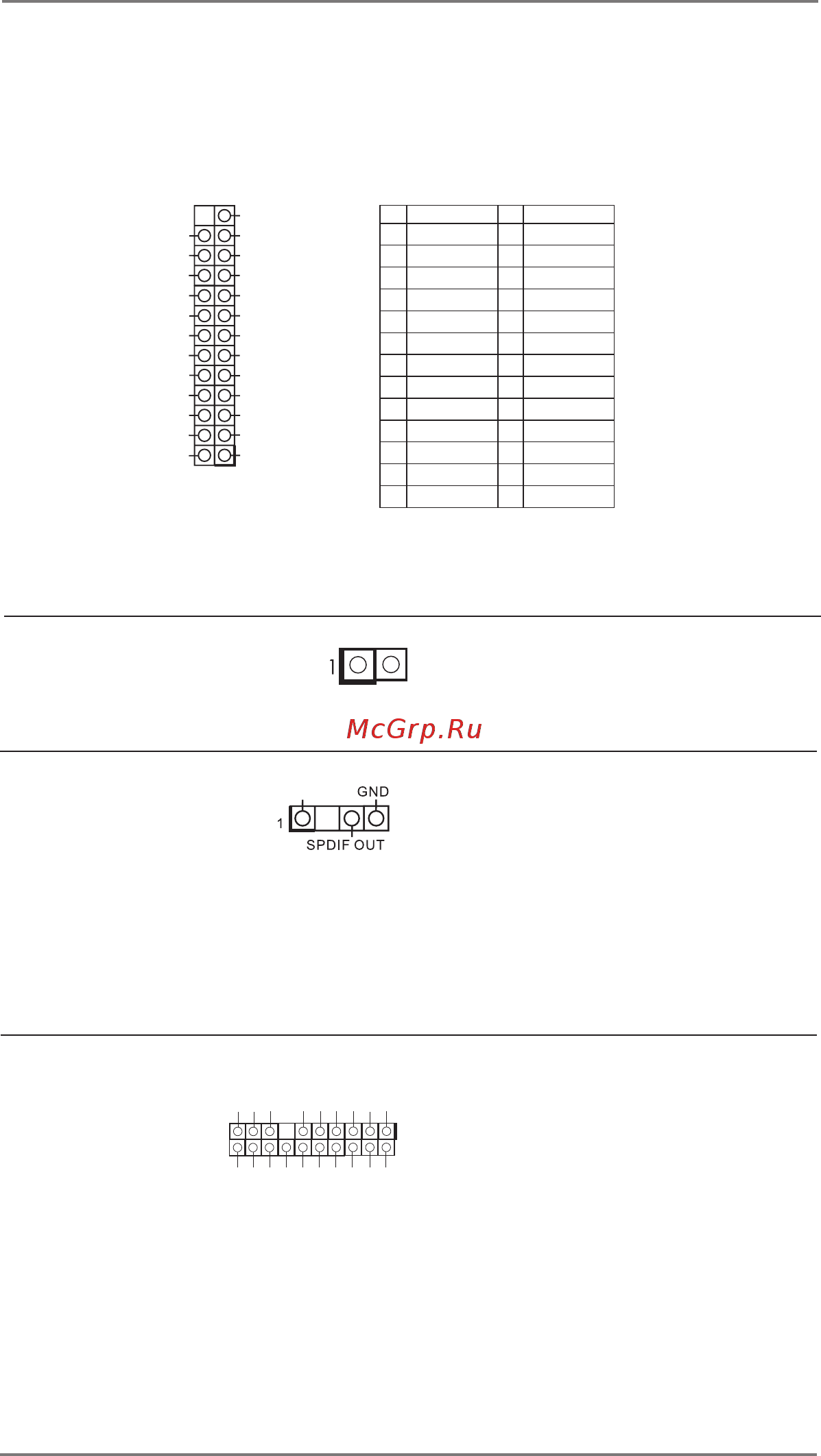

If you want to use the printer port function, please
short pin4 and pin5 on
Digital Input / Output
Power Select (JGPIO_PWR1).
Printer Port / GPIO Header
(25-pin LPT_GPIO1)
(see p.9 No. 19)
Printer Port: GPIO:
SPDIF Header SPDIF header, providing
(3-pin SPDIF1)
SPDIF audio output to HDMI
(see p.9, No. 36)
VGA card, allows the system to
connect HDMI Digital TV/
projector/LCD devices. Please
connect the SPDIF connector of
HDMI VGA card to this header.
+5V
LPC Header This connector supports a
(19-pin LPC1)
Trusted Platform Module (TPM)
(
see p.9, No. 31)
system, which can
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
1
SPD0
STB#
SPD1
SPD2
SPD3
SPD4
SPD6
SPD7
GND
GND
SLIN#
PINIT#
ERROR#
AFD#
GND
GND
GND
GND
GND
GND
SPD5
ACK#
BUSY
PE
SLCT
PIN Signal Name PIN Signal Name
26 NC 25 NC
24 GND 23 GPIO70
22 GND 21 GPIO71
20 GND 19 GPIO72
18 GND 17 GPIO87
16 GND 15 GPIO86
14 GND 13 GPIO85
12 JGPIOPWR 11 GPIO84
10 JGPIOPWR 9 GPIO83
8 GPIO73 7 GPIO82
6 GPIO74 5 GPIO81
4 GPIO75 3 GPIO80
2 GPIO76 1 GPIO77
Buzzer
(2-pin BUZZ2)
(see p.9 No. 34)
1
GN D
GN D
S_ PWR DWN #
LA D2
SM B_C LK_ MAI N
PC ICL K
PC IRS T#
LA D3
+3 V
LA D0
GN D
FR AME
SM B_D ATA _MA IN
LA D1
SE RIR Q#
GN D
+3 VSB
48 MHz
+5 V
