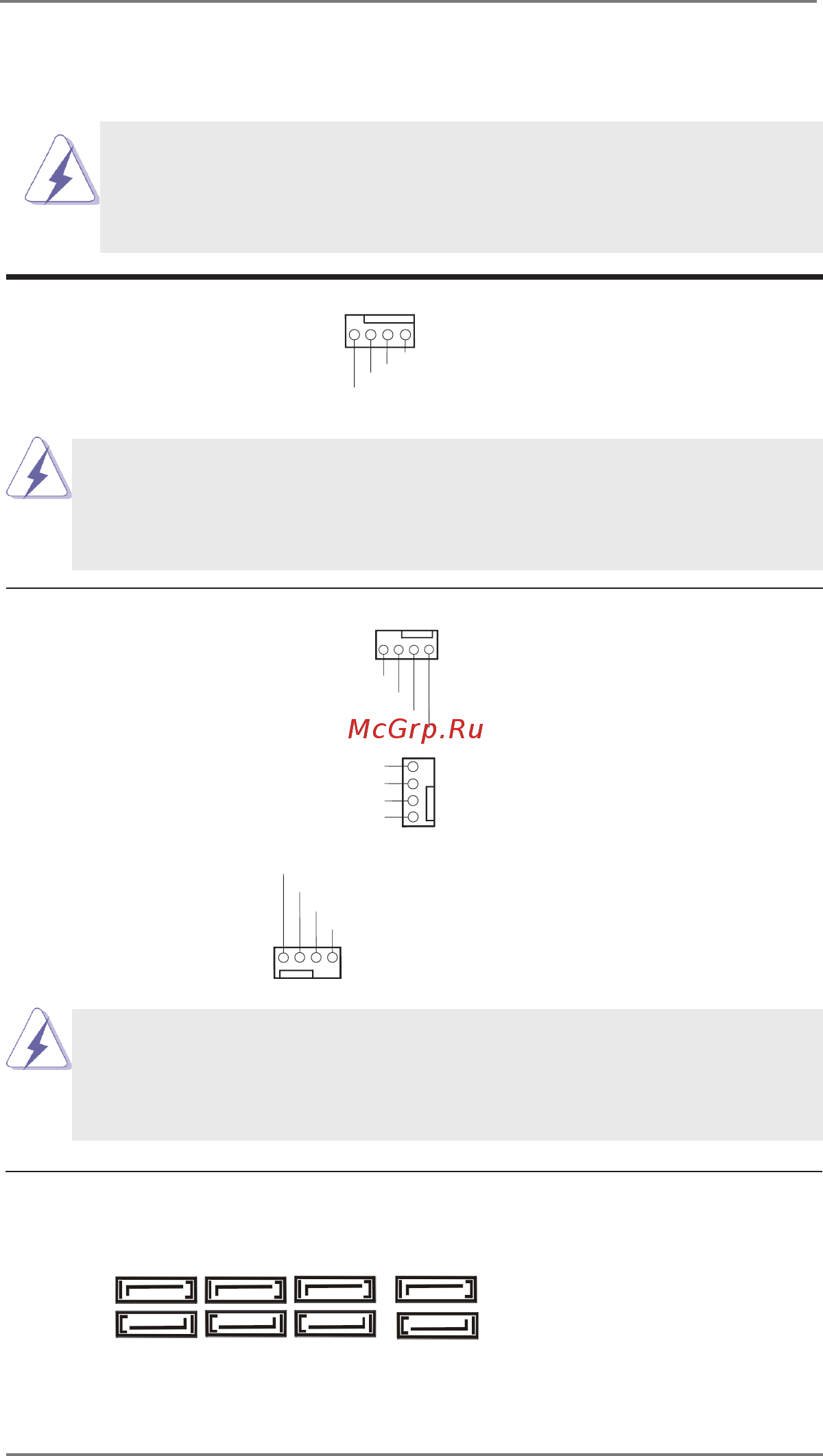

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1)
cable to the connector and
(see p.9 No. 11)
match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
Though this motherboard provides 4-Pin chassis fan (Quiet Fan) support,
the 3-Pin chassis fan still can work successfully even without the fan speed
control function. If you plan to connect the 3-Pin chassis fan to the chassis
fan connector on this motherboard, please connect it to Pin 1-3.
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
Chassis Fan Connectors Please connect the fan cable
(4-pin CHA_FAN1)
to the fan connector and
(see p.9 No. 12)
match the black wire to the
ground pin.
(4-pin CHA_FAN2)
(see p.9 No. 40)
(4-pin CHA_FAN3)
(see p.9 No. 17)
GN D
+12V
CH A _FAN_SPEED
FA N_SPEED_C O N T RO L
GN D
+12V
CH A _ F A N _ SPEED
FA N _ S P EED_CONTRO L
4 3 2 1
G N D
+12V
C H A_ F A N _ S P E E D
FA N _ SP E E D _ C O N T R OL
4
3
2
1
1 2 3 4
SATA3 Connectors These eight Serial ATA3 (SATA3)
(SATA3_1~8: see p.9, No. 29)
connectors support SATA data
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
SATA3_5 SATA3_3 SATA3_1 SATA3_8
SATA3_6 SATA3_4 SATA3_2 SATA3_7
