16

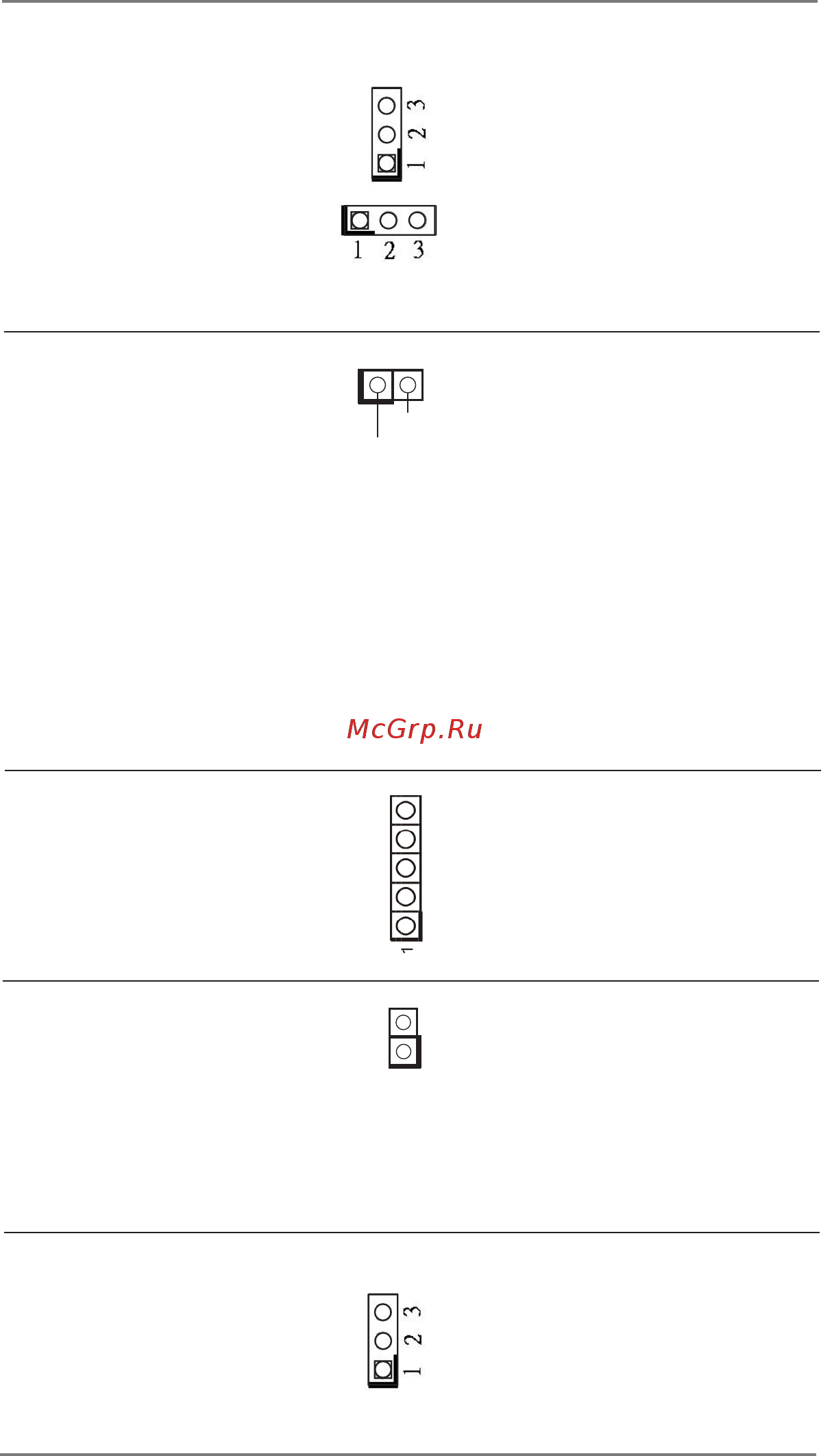

COM Port PWR Setting Jumpers 1-2 : +5V
(3-pin PWR_COM1 (For COM Port1))
2-3 : +12V
(see p.8, No. 3)
(3-pin PWR_COM4 (For COM Port4))
(see p.8, No. 23)
Panel Power Select (LCD_VCC) 1-2 : LCD_VCC : +3V
(5-pin PNL_PWR1)
2-3 : LCD_VCC : +5V
(see p.8, No. 9)
4-5 : LCD_VCC : +12V
Chassis Intrusion Headers This motherboard supports
(2-pin CI1, CI2: see p.8, No. 21)
CASE OPEN detection feature
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
CI1 :
Close
: Active Case Open
Open : Normal
CI2 :
Close
: Normal
Open : Active Case Open
1
LVDSBL1, LVDSBL2
LVDSBL1 :
(2-pin LVDSBL1)
Open : Protect LCD_VCC
(see p.8, No. 11)
Short : No Protect LCD_VCC
(2-pin LVDSBL2)
LVDSBL2 :
(see p.8, No. 8)
Open : Protect LCD_BLT_VCC
Short : No Protect LCD_BLT_VCC
Backlight Control Level (CON_LBKLT_CTL) 1-2 : From eDP PWM to CON_LBKLT_CTL
(3-pin BLT_PWM1)
2-3 : From LVDS PWM to CON_LBKLT_CTL
(see p.8, No. 14)
1
Signal
GND
