17

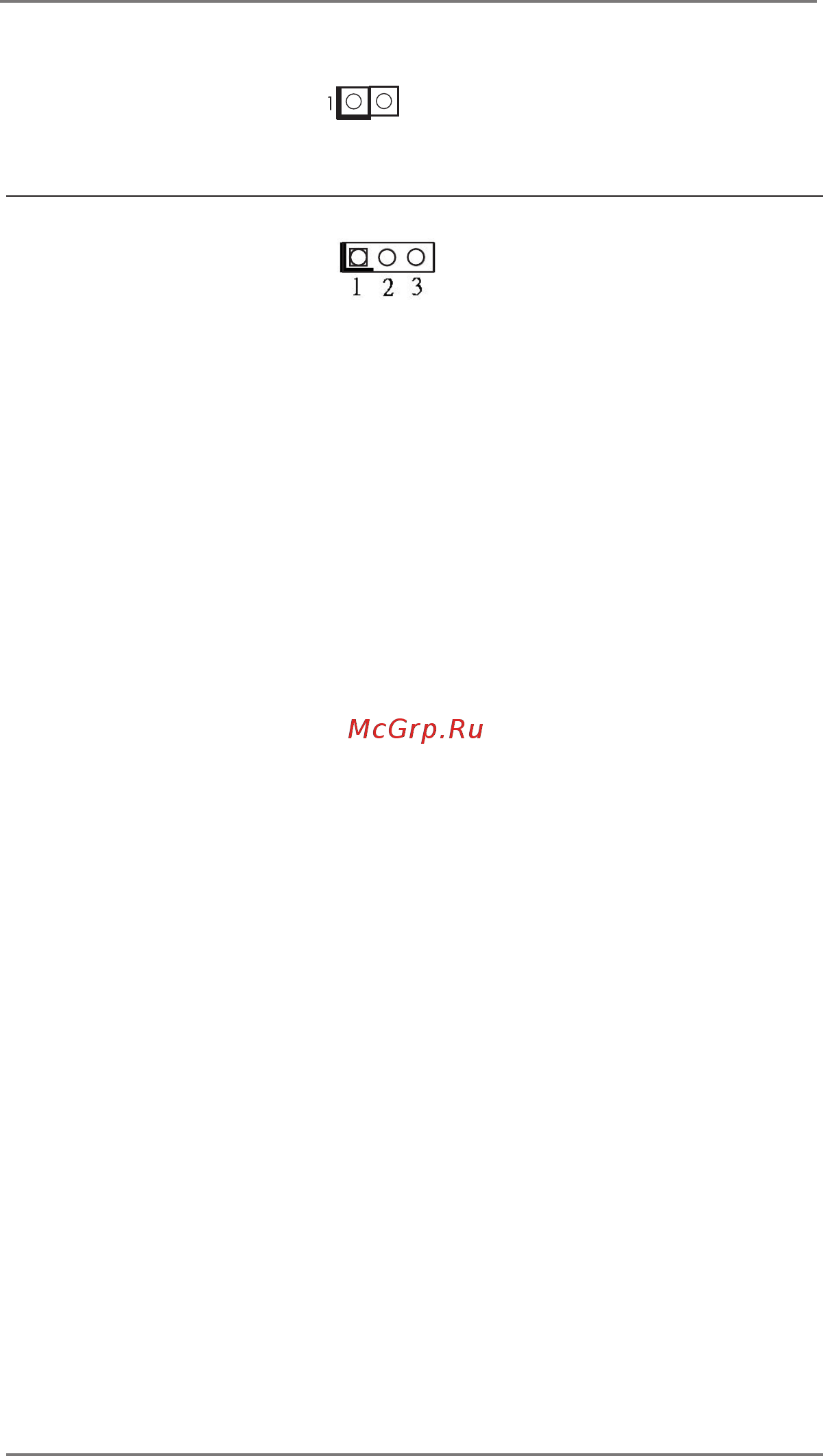

Backlight Control Level (CON_LBKLT_CTL) 1-2 : From eDP PWM to CON_LBKLT_CTL
(3-pin BLT_PWM1)
2-3 : From LVDS PWM to CON_LBKLT_CTL
(see p.8, No. 14)
ATX/AT Mode Jumper Open : ATX Mode
(2-pin SIO_AT1)
Short : AT Mode
(see p.8, No. 29)
Digital Input / Output
Power Select
1-2 : +12V
(3-pin JGPIO_PWR1)
2-3 : +5V
(see p.8, No. 24)
