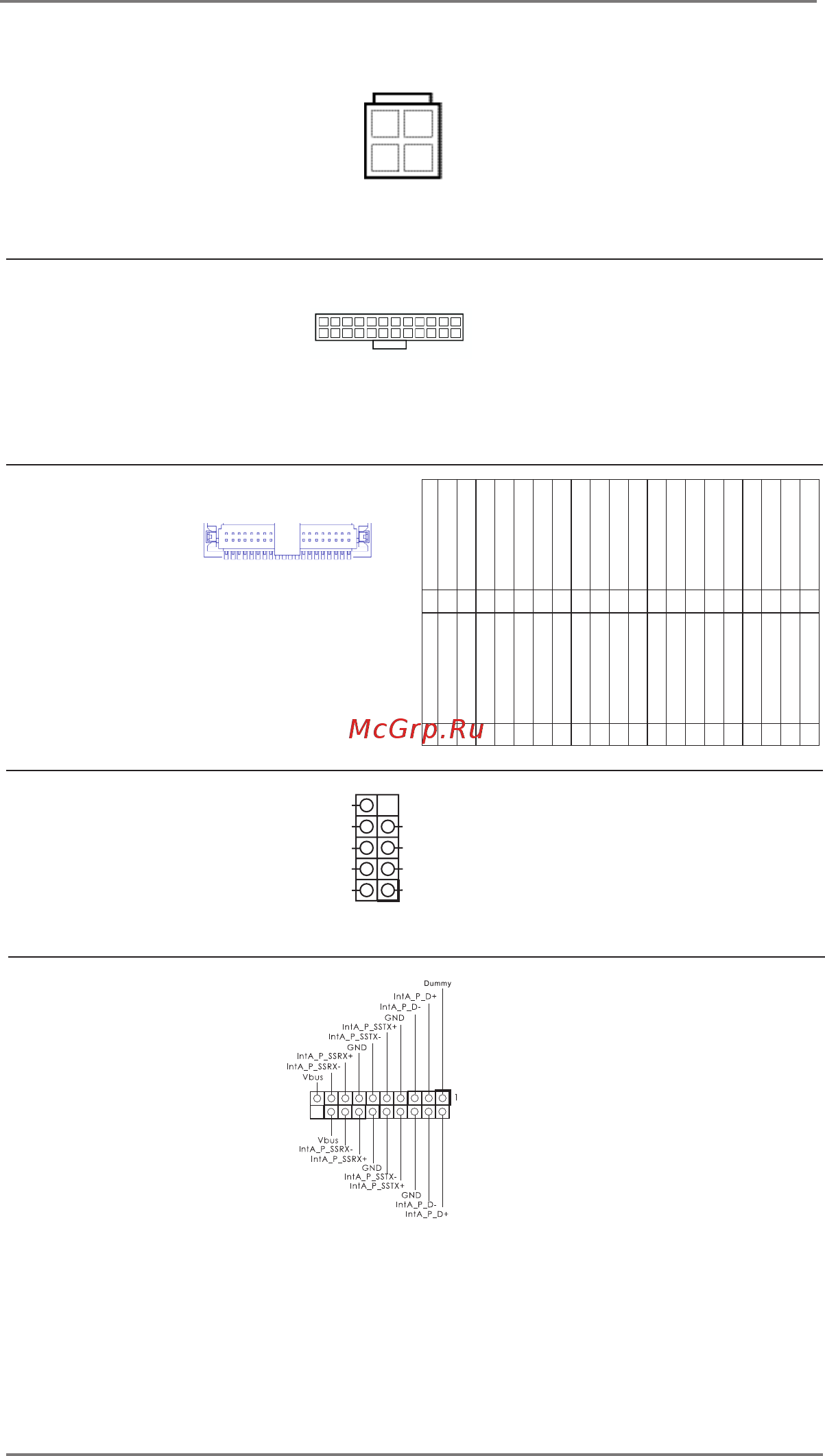

21
ATX Power Input/Output Connector
Please connect a DC
(4-pin ATX12V1)
power supply to this
(see p.8 No. 5)
connector.
1-2 : GND
3-4 : DC Input
LVDS Connector
(40-pin LVDS1)
(see p.8 No. 7)
ATX Power Input Connector
This motherboard provides
(24-pin ATXPWR1)
a 24-pin ATX power connector.
(see p.8 No. 6)
To use a 20-pin ATX power
supply, please plug it along Pin
1 and Pin 13.
4
2
3
1
PIN Signal Name PIN Signal Name
39 LCD_BLT_VCC 40 LCD_BLT_VCC
37 CON_LBKLT_CTL 38 LCD_BLT_VCC
35 GND 36 CON_LBKLT_EN
33 LVDS_B_CLK# 34 LVDS_B_CLK
31 LVDS_B_DATA3 32 GND
29 DPLVDD_EN 30 LVDS_B_DATA3#
27 LVDS_B_DATA2# 28 LVDS_B_DATA2
25 LVDS_B_DATA1 26 GND
23 GND 24 LVDS_B_DATA1#
21 LVDS_B_DATA0# 22 LVDS_B_DATA0
19 LVDS_A_CLK 20 GND
17 GND 18 LVDS_A_CLK#
15 LVDS_A_DATA3# 16 LVDS_A_DATA3
13 LVDS_A_DATA2 14 GND
11 GND 12 LVDS_A_DATA2#
9 LVDS_A_DATA1# 10 LVDS_A_DATA1
7 LVDS_A_DATA0 8 PD (Panel Detection)
5 LDDC_DATA 6 LVDS_A_DATA0#
3 +3.3V 4 LDDC_CLK
1 LCD_VCC 2 LCD_VCC
1 12
1 24
40 2
39 1
USB 2.0 Header There is one header on this
(9-pin USB2_8_9)
motherboard. This USB 2.0
(
see p.8, No. 2)
header can support two ports.
DUMMY
GND GND
+B
-B
+A
-A
USB_PWR
USB_PWR
1
USB 3.2 Gen1 Header There is one header on this
(19-pin USB3_3_4)
motherboard. This USB 3.2
(
see p.8, No. 3)
Gen1 header can support two
ports.
