12

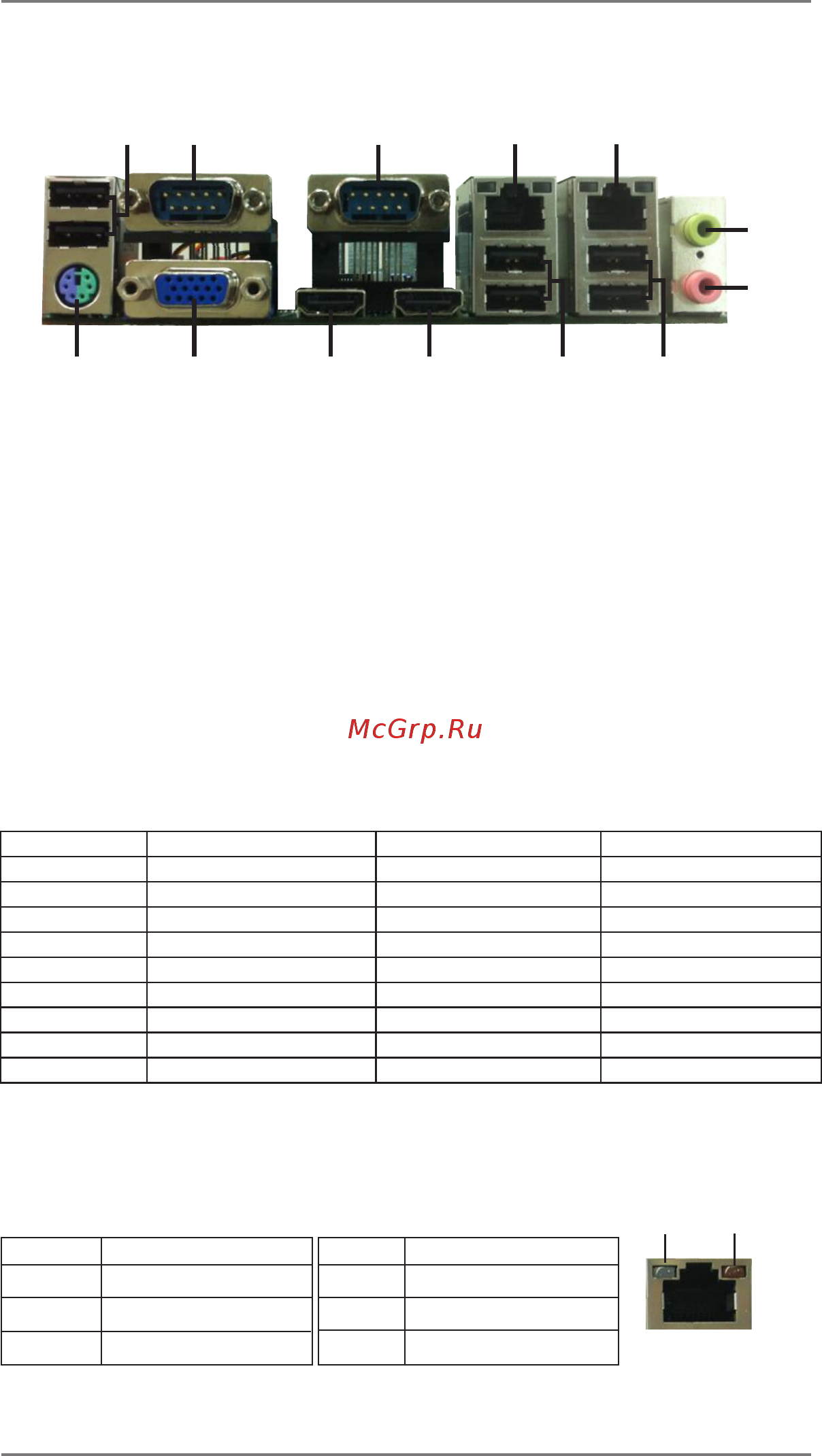

1.5 I/O Panel
1 USB 2.0 Ports (USB01)
2 Serial Port (COM1)*
3 Serial Port (COM2)*
4 LAN RJ-45 Port (LAN2)**
5 LAN RJ-45 Port (LAN1)**
6 Front Speaker (Lime)
7 Microphone (Pink)
8 USB 2.0 Ports (USB45)
9 USB 2.0 Ports (USB23)
10 HDMI Port (HDMI1)
11 HDMI Port (HDMI2)***
12 D-Sub (VGA1)
13 PS/2 Keyboard/Mouse Port
1
2
3
4
5
6
7
10
8
9
11
12
13
*** For IMB-A160-H only.
* This motherboard supports RS232/422/485 on COM1, 2 ports. Please refer to below table for
the pin denition. In addition, COM1, 2 ports (RS232/422/485) can be adjusted in BIOS setup
utility > Advanced Screen > Super IO Conguration. You may refer to page 42 for details.
COM1, 2 Port Pin Denition
PIN RS232 RS422 RS485
1 DCD, Data Carrier Detect TX- RTX-
2 RXD, Receive Data RX+ N/A
3 TXD, Transmit Data TX+ RTX+
4 DTR, Data Terminal Ready RX- N/A
5 GND GND GND
6 DSR, Data Set Ready N/A N/A
7 RTS, Request To Send N/A N/A
8 CTS, Clear To Send N/A N/A
9 No Power/5V/12V N/A N/A
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On 100Mbps connection Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
