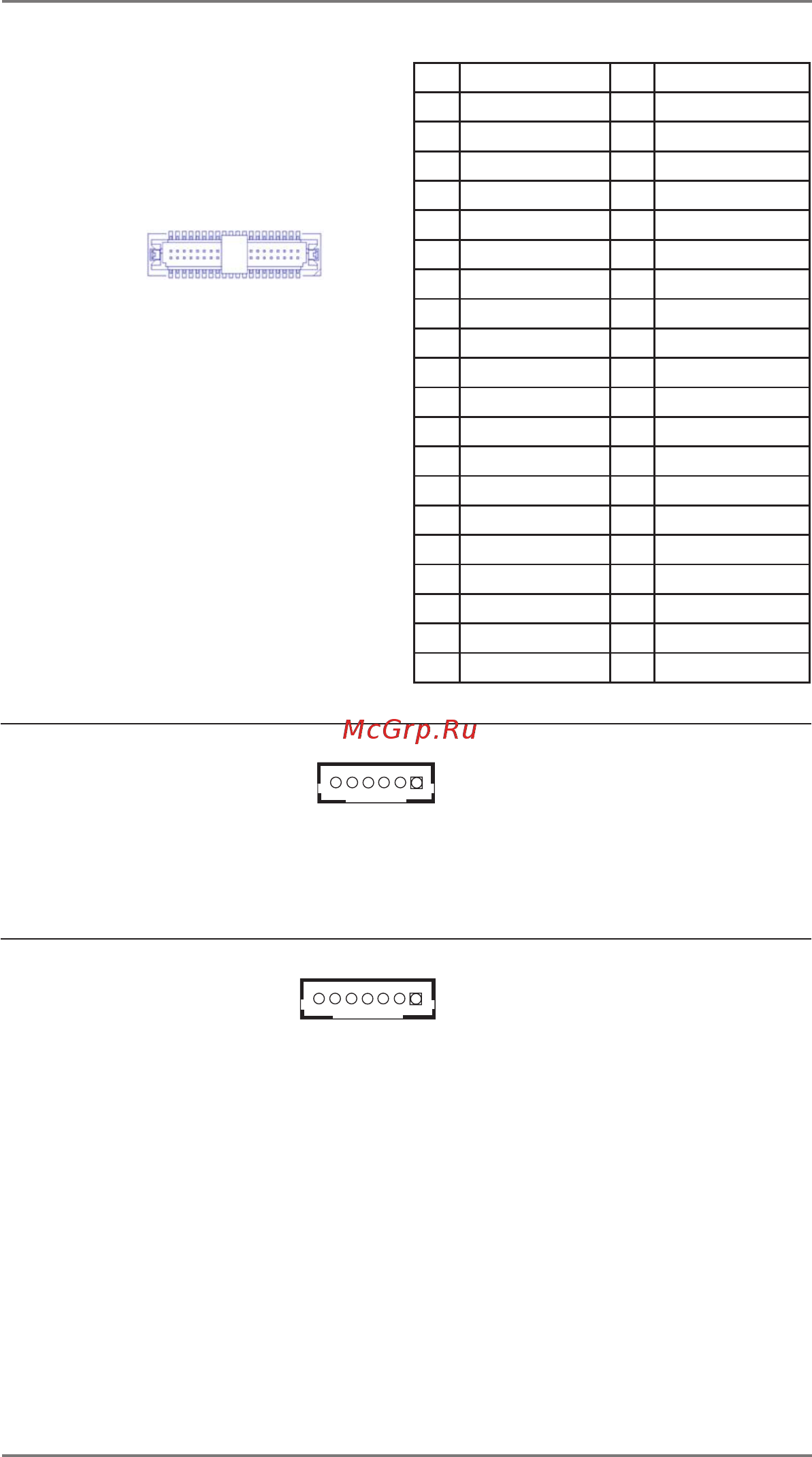

22
Inverter Power Control
Header (Optional)
(6-pin BLT_PWR2)
(see p.10, No. 4)
LVDS Connector
(
LVDS for IMB-A160 only
)
(40-pin LVDS1)
(see p.10, No. 2)
1
39
40
2
PIN Signal Name PIN Signal Name
2 LVDS_PWR 1 LVDS_PWR
4 DDC CLK 3 +3V
6 LVDS1 D0(-) 5 DDC DATA
8 GND 7 LVDS1 D0(+)
10 LVDS1 D1(+) 9 LVDS1 D1(-)
12 LVDS1 D2(-) 11 GND
14 GND 13 LVDS1 D2(+)
16 LVDS1 D3(+) 15 LVDS1 D3(-)
18 LVDS1 CLK(-) 17 GND
20 GND 19 LVDS1 CLK(+)
22 LVDS2 D0(+) 21 LVDS2 D0(-)
24 LVDS2 D1(-) 23 GND
26 GND 25 LVDS2 D1(+)
28 LVDS2 D2(+) 27 LVDS2 D2(-)
30 LVDS2 D3(-) 29 LVDS PWR EN
32 GND 31 LVDS2 D3(+)
34 LVDS2 CLK(+) 33 LVDS2 CLK(-)
36 B/L ENABLE 35 GND
38 BLT_PWR 37 B/L ADJUST
40 BLT_PWR 39 BLT_PWR
1,2: GND
3: Panel Backlight Control
4: Panel Backlight Enable
5,6: Panel Backlight Power
1
Backlight & Amp
Volume Control
Header (Optional)
(7-pin BLT_VOL1)
(see p.10, No. 6)
1: Volume_UP
2: Volume_DOWN
3: PANEL PWR Down
4: Panel BackLight UP
5: Panel BackLight Down
6: GND
7: GND
1
