ASRock IMB-A160 [17/50] Power connectors

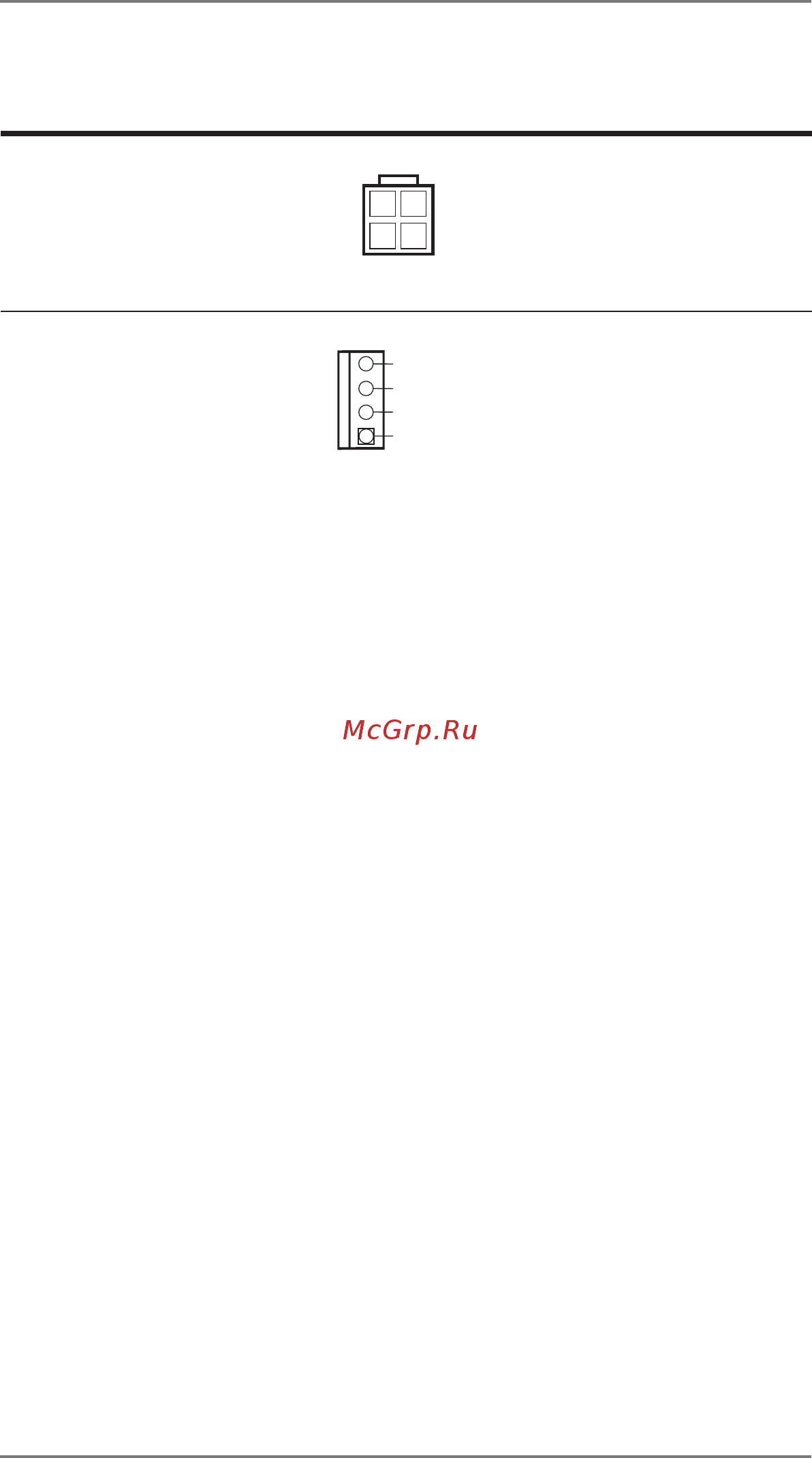

![ASRock IMB-A160 [17/50] Power connectors](/views2/1693519/page17/bg11.png)
17
SATA Power Connector
(4-pin JPWR1)
(see p.10, No. 13)
2.4 Power Connectors
ATX 12V Power Connector
(4-pin ATX12V1)
(see p.10, No. 10)
Please connect a power
supply to this connector.
Please connect one end of
the SATA power cable to the
hard disk and the other end
to this connector.
1
GND
+12V
GND
+5V
