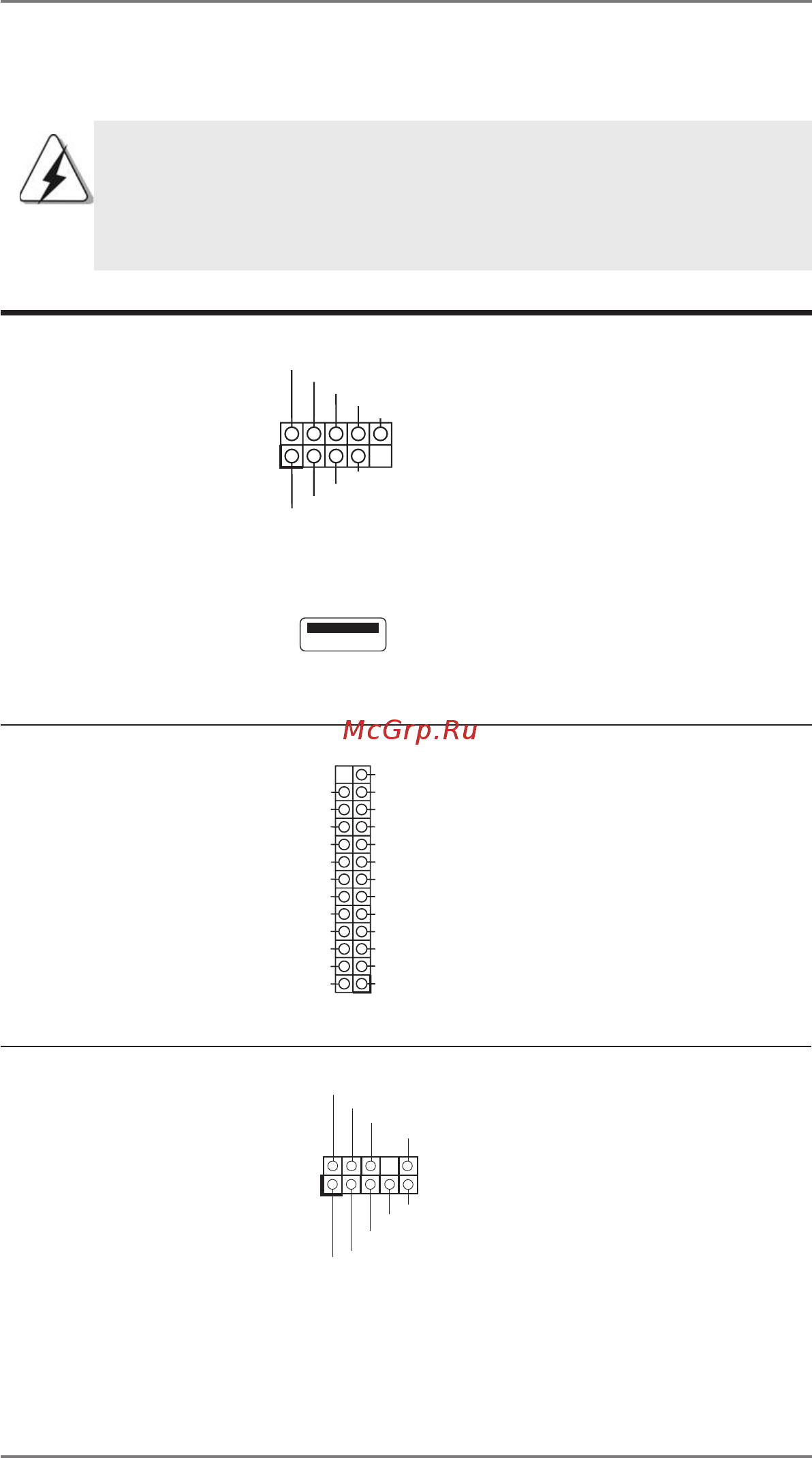

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT
place jumper caps over these headers and connectors. Plac-
ing jumper caps over the headers and connectors will cause
permanent damage to the motherboard!
USB 2.0 Headers
(9-pin USB6_7)
(see p.10, No. 29)
(9-pin USB8_9)
(see p.10, No. 30)
(9-pin USB10_11)
(see p.10, No. 31)
(USB12)
(see p.10, No. 33)
Besides six default USB 2.0
ports on the I/O panel, there
are three USB 2.0 headers
and one USB port on this
motherboard. Each USB
2.0 header can support two
USB 2.0 ports.
This is an interface for print
port cable that allows conve-
nient connection of printer
devices.
DUMMY
G ND
G ND
+B
-B
USB_PW R
+A
-A
USB_PW R
1
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.10, No. 35)
J _SENSE
O UT2_L
1
M IC_RET
P RESENCE#
GN D
O UT2_R
M IC2_R
M IC2_L
OUT_RET
This is an interface for the
front panel audio cable that
allows convenient connec-
tion and control of audio
devices.
Print Port Header
(25-pin LPT1)
(see p.10, No. 12)
1
SPD0
STB#
SPD1
SPD2
SPD3
SPD4
SPD6
SPD7
GND
GND
SLIN#
PINIT#
ERROR#
AFD#
GND
GND
GND
GND
GND
GND
SPD5
ACK#
BUSY
PE
SLCT
