2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!

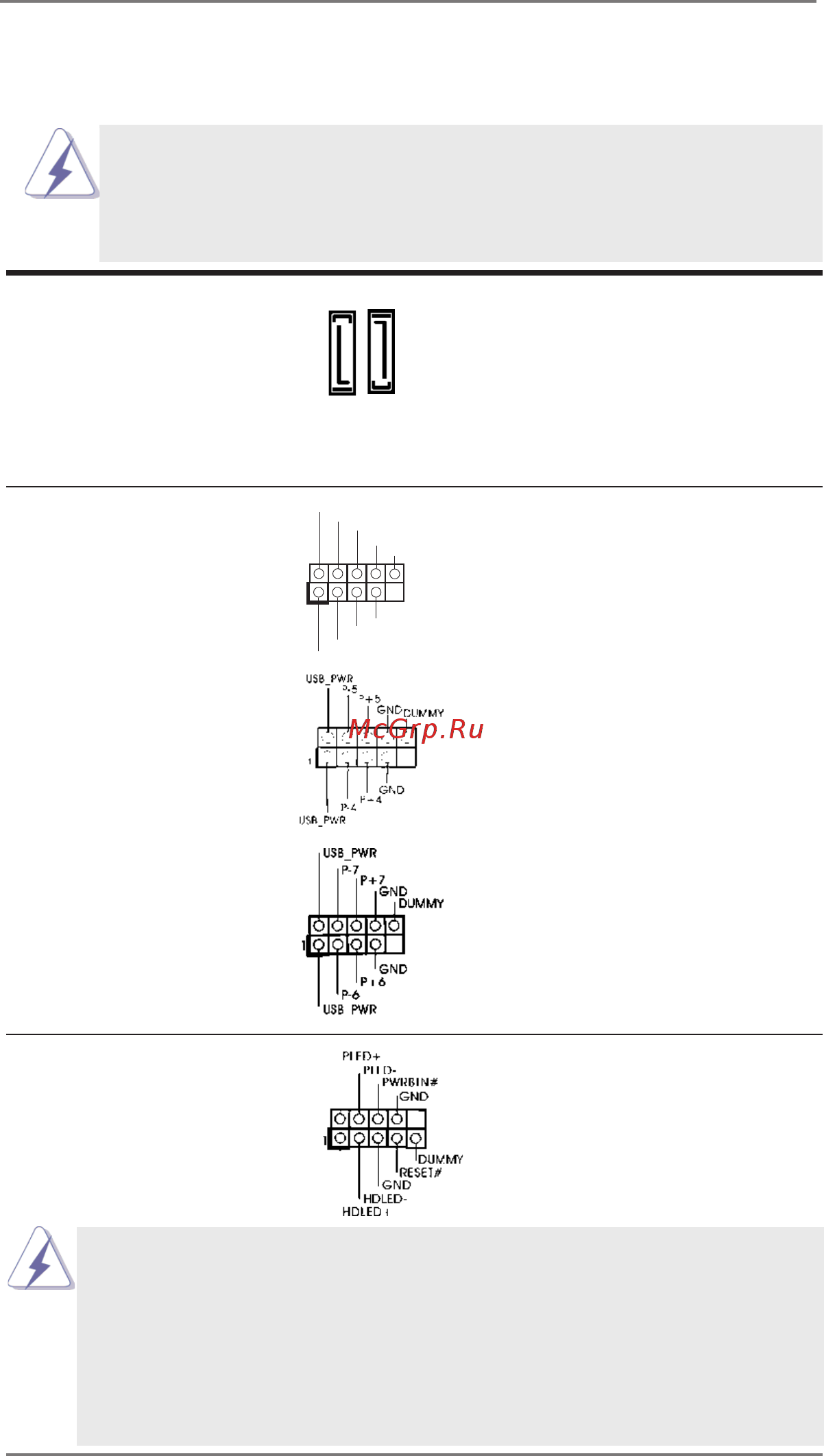

SATAII Connectors These two Serial ATAII
(SATAII_1: see p.7, No. 10)
(SATAII) connectors support
(SATAII_2: see p.7, No. 11)
SATA data cables for internal
storage devices. The current
SATAII interface allows up to
3.0 Gb/s data transfer rate.
SATAII_1 SATAII_2
USB 2.0 Headers Besides two default USB 2.0
(9-pin USB2_3)
ports on the I/O panel, there
(see p.7 No. 19)
are three USB 2.0 headers on
this motherboard. Each
USB 2.0 header can support
two USB 2.0 ports.
(9-pin USB4_5)
(see p.7 No. 20)
(9-pin USB6_7)
(see p.7 No. 12)
1
U SB_PWR
P-2
GND
DUMMY
U SB_PWR
P +2
GND
P-3
P +3
System Panel Header This header accommodates
(9-pin PANEL1)
several system front panel
(see p.7 No. 15)
functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn off your system using the power switch.
