ASRock IMB-142 Series [16/16] Lvds connector

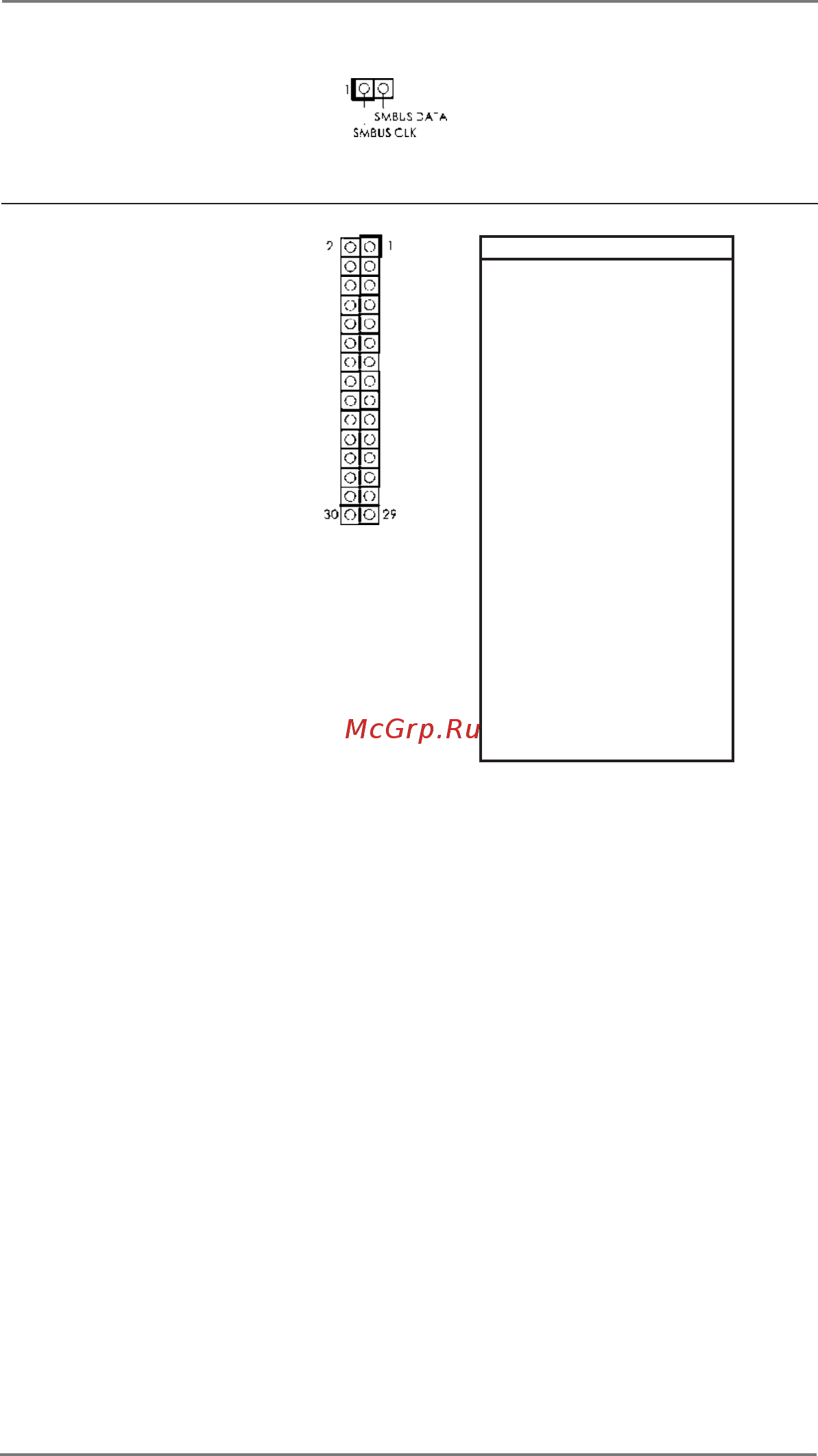

SMBUS Connector

(2-pin SMBUS1)

(see p.7 No. 9)

LVDS Connector Pin Denition

Pin 1, 2, 3, 4 : Backlight PWR

Pin 5, 6, 11, 17, 18, 29, 30 : GND

Pin 7, 9 : LCD VDD PWR Enable

Pin 8 : LCD PID1

Pin 10 : LCD PID0

Pin 12 : EDID CLK

Pin 13 : Backlight Enable

Pin 14 : EDID DATA

Pin 15 : Backlight PWM

Pin 16 : EDID CS#

Pin 19 : EDID PWR(3V)

Pin 20 : Empty

Pin 21 : LVDS CLK#

Pin 22 : LVDS CLK

Pin 23 : LVDS DATA2#

Pin 24 : LVDS DATA2

Pin 25 : LVDS DATA1#

Pin 26 : LVDS DATA1

Pin 27 : LVDS DATA0#

Pin 28 : LVDS DATA0

LVDS Connector

(30-pin LVDS1)

(see p.7 No. 27)
