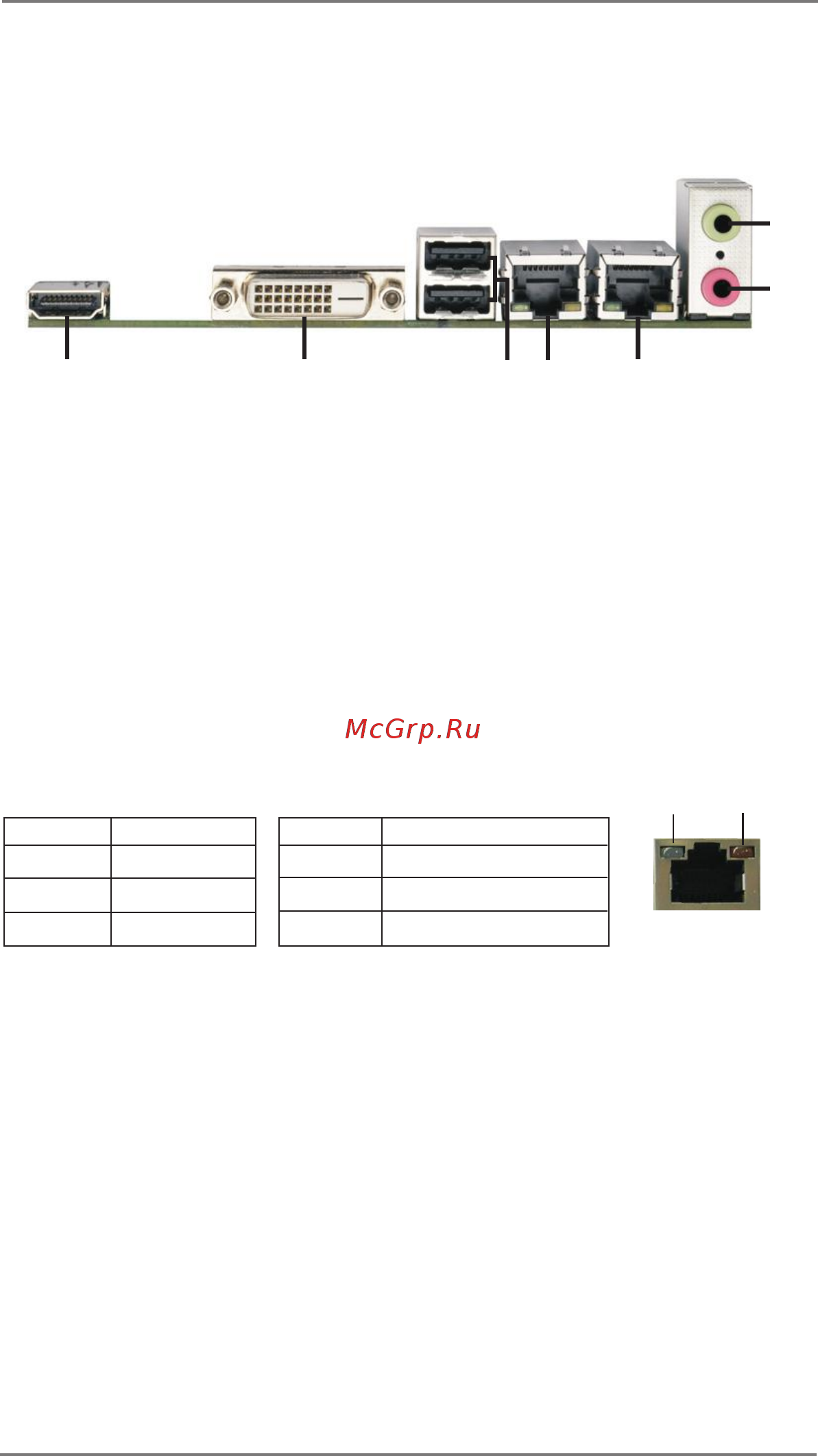

1.4 I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 Line out (Lime)

2 Microphone (Pink)

* 3 LAN RJ-45 Port

* 4 LAN RJ-45 Port

5 USB 2.0 Ports (USB01)

6 DVI-D Port (DVI1)

7 HDMI Port (HDMI1)

ACT/LINK

LED

SPEED

LED

LAN Port
