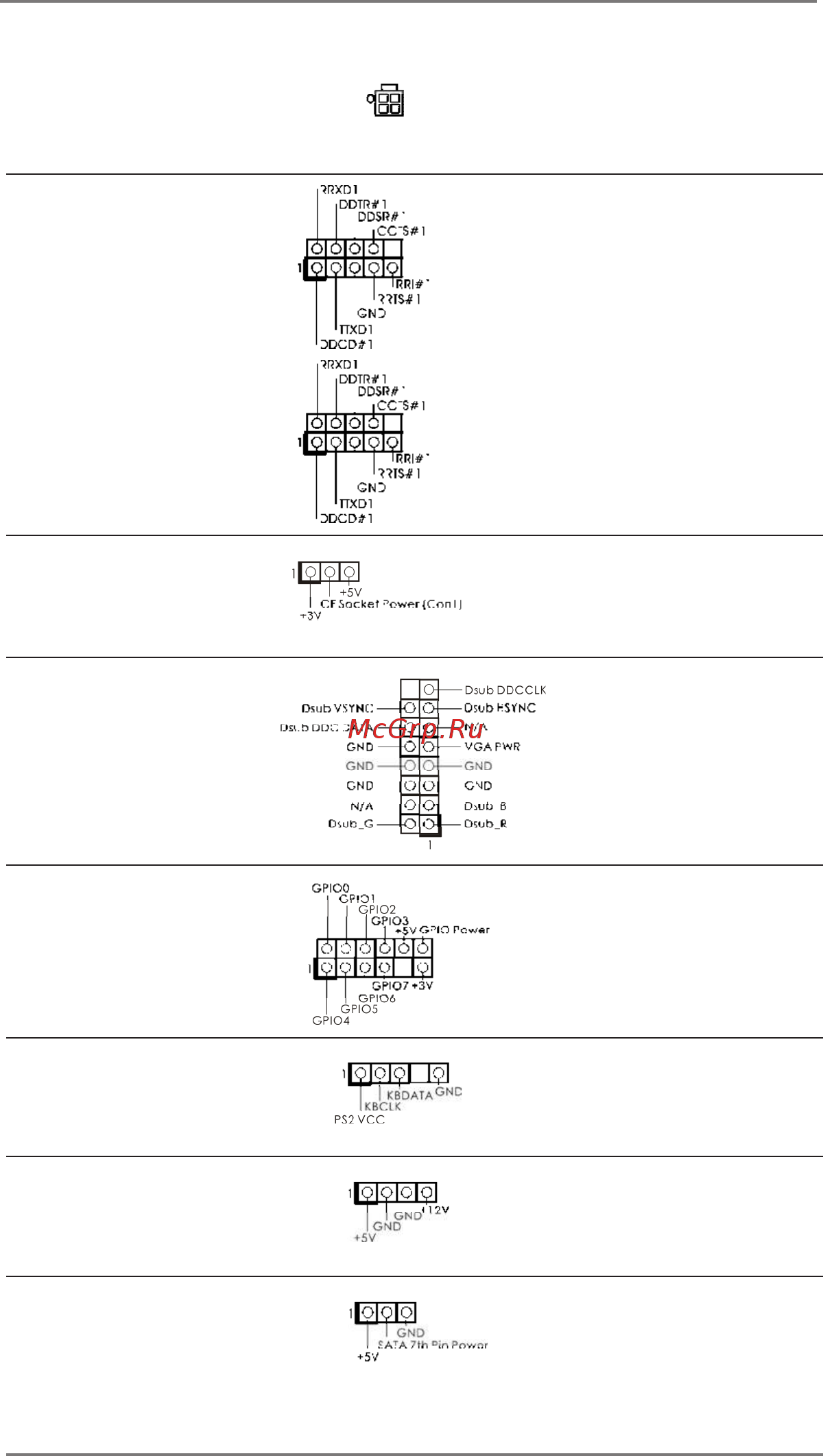

ATX 12V Power Connector Please connect an ATX 12V

(4-pin ATX12V1)

power supply to this connector.

(see p.7 No. 2)

Serial port Headers Each COM1 header supports a

(9-pin COM1)

serial port module.

(see p.7 No. 24)

(9-pin COM2)

(see p.7 No. 25)

JCF Power Connector

(3-pin JCF PWR1)

(see p.7 No. 1)

D-SUB VGA Connector

(15-pin VGA1)

(see p.7 No. 29)

JGP IO Connector

(11-pin JGP IO1)

(see p.7 No. 23)

JPS Connector

(4-pin JPS2)

(see p.7 No. 18)

JPWR Connector

(4-pin JPWR_1)

(see p.7 No. 13)

SATA Power Connector

(3-pin SATA PWR_1)

(see p.7 No. 14)
