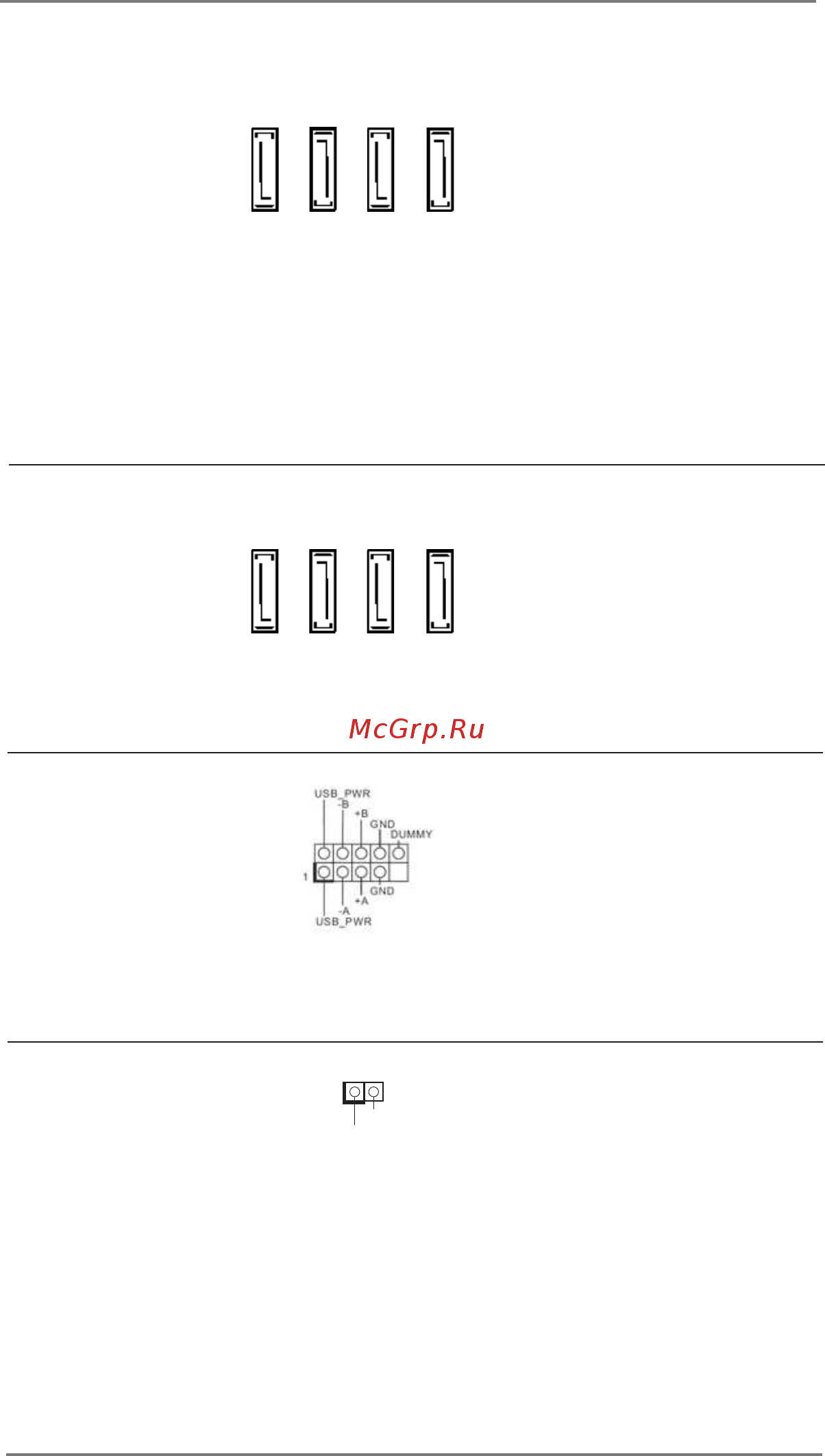

USB 2.0 Headers Besides the default USB 2.0
(9-pin USB6_7: see p.14, No. 2)
ports on the I/O panel, there are
(9-pin USB8_9: see p.14, No. 1)
two USB 2.0 headers and one
USB 2.0 port on this
motherboard. Each USB 2.0
header can support two USB 2.0
ports.
Chassis Intrusion Header This motherboard supports
(2-pin CI1: see p.14, No. 15)
CASE OPEN detection feature
(2-pin CI2: see p.14, No. 14)
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
1
Signal
GND
IMB-161-D / IMB-161-L:
SATA2 Connectors These four Serial ATA2
(SATA_0: see p.14, No. 17)
(SATA2) connectors support
(SATA_1: see p.14, No. 18)
SATA data cables for internal
(SATA_2: see p.14, No. 19)
storage devices. The current
(SATA_3: see p.14, No. 20)
SATA2 interface allows up to
3.0 Gb/s data transfer rate.
SATA_3
SATA_2
SATA_1
SATA_0
IMB-171-D / IMB-171-L:
SATA2 / SATA3 Connectors These two Serial ATA3 (SATA3)
(SATA_0: see p.14, No. 17)
connectors and two Serial ATA2
(SATA2) connectors support
SATA data cables for internal
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate, and
the current SATA2 interface
allows up to 3.0 Gb/s data
transfer rate .
SATA_3
SATA_2
SATA_1
SATA_0
