Setting wrong values in this section may cause

the system to malfunction.

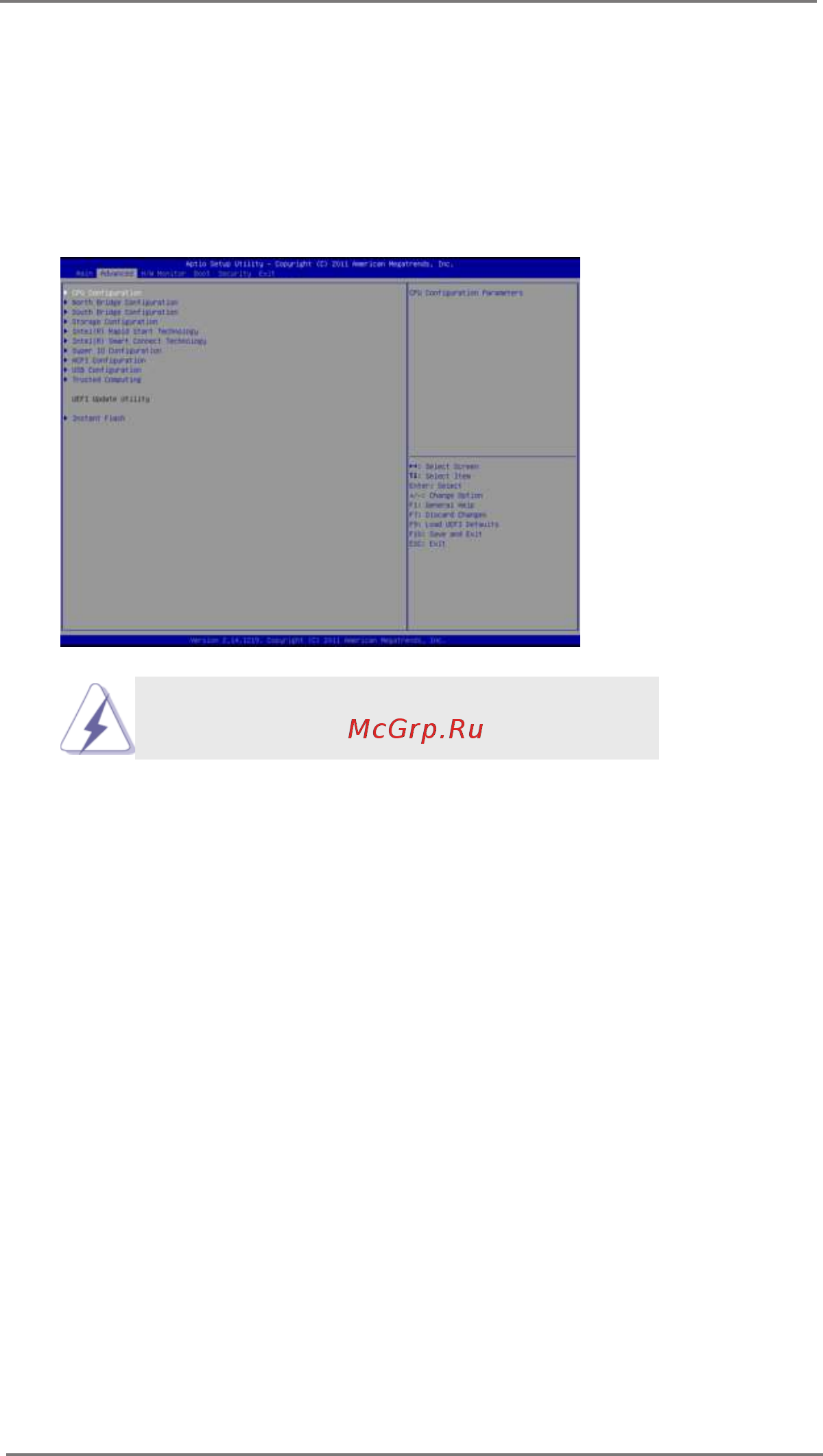

3.3 Advanced Screen

In this section, you may set the congurations for the following items: CPU Congu-

ration, Northbridge Conguration, Southbridge Conguration, Storage Conguration,

Intel(R) Rapid Start Technology, Intel(R) Smart Connect Technology, Super IO Con-

guration, ACPI Conguration, USB Conguration and Trusted Computing.

Instant Flash

Instant Flash is a UEFI ash utility embedded in Flash ROM. This conve-

nient UEFI update tool allows you to update system UEFI without entering

operating systems rst like MS-DOS or Windows

. Just launch this tool

and save the new UEFI le to your USB ash drive, oppy disk or hard

drive, then you can update your UEFI only in a few clicks without prepar-

ing an additional oppy diskette or other complicated ash utility. Please

be noted that the USB ash drive or hard drive must use FAT32/16/12 le

system. If you execute Instant Flash utility, the utility will show the UEFI

les and their respective information. Select the proper UEFI le to update

your UEFI, and reboot your system after UEFI update process completes.
