11

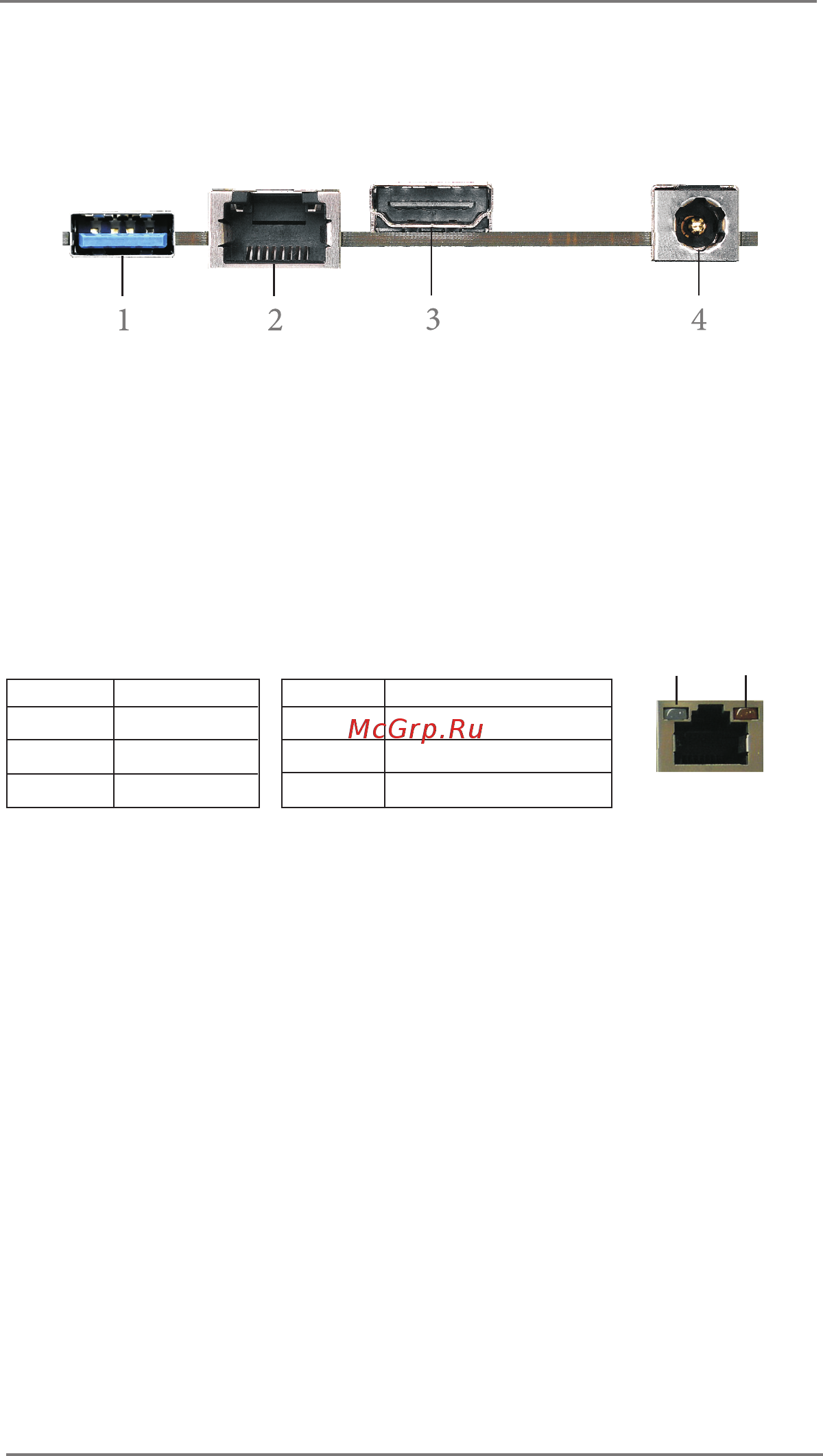

1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Off 100Mbps connection
On Link Green 1Gbps connection
1 USB 3.0 Port
2 LAN RJ-45 Port (LAN1)*
3 HDMI Port (HDMI1)
4 DC Jack (DC_IN1)
ACT/LINK
LED
SPEED
LED
LAN Port
