ASRock Jupiter-H310 [22/53] Onboard headers and connectors
![ASRock Jupiter-H310 [22/53] Onboard headers and connectors](/views2/1692955/page22/bg16.png)
16 17
English
H310D4-P1

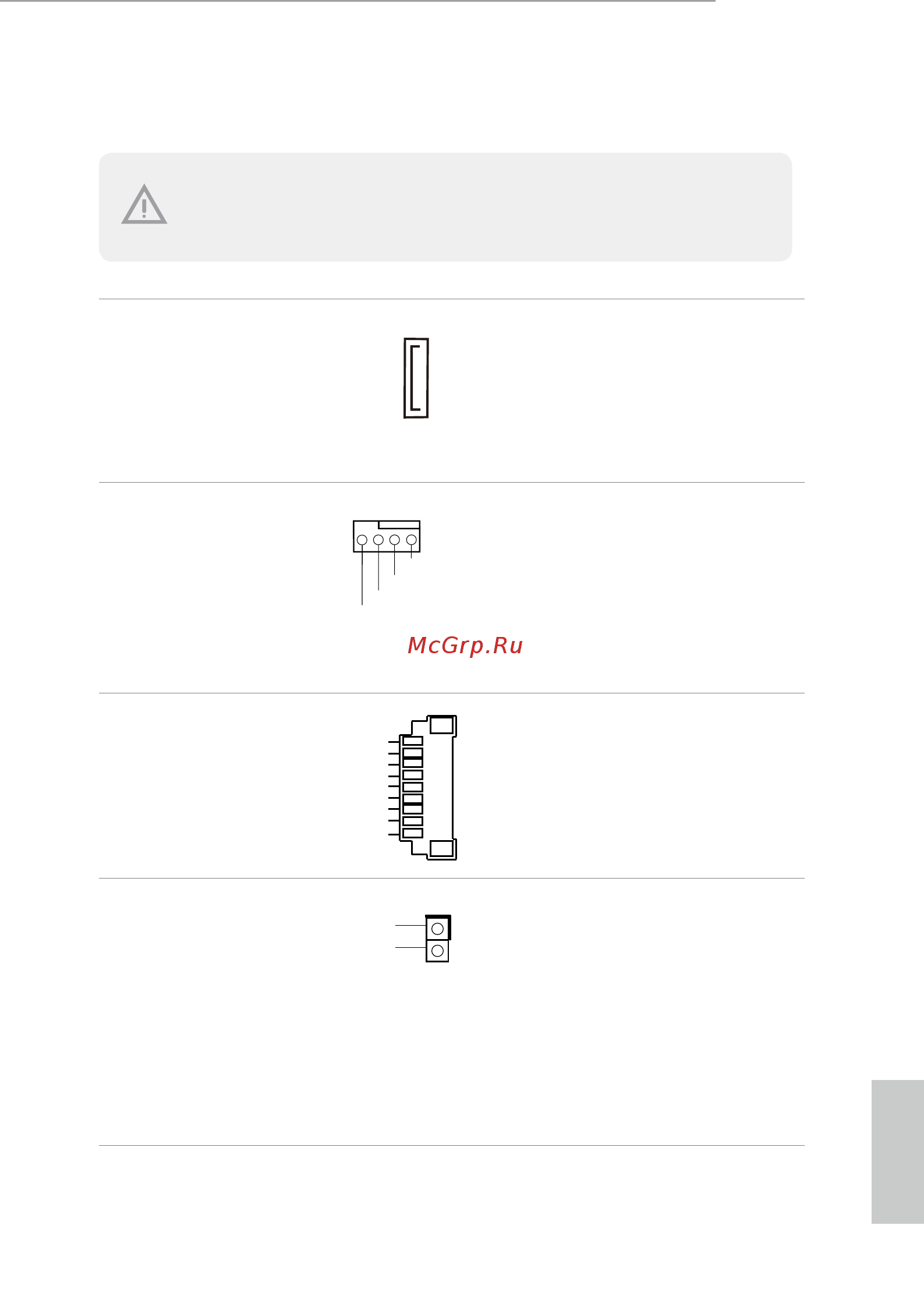

2.5 Onboard Headers and Connectors
Serial ATA3 Connector
(SATA0:
see p.6, No. 5)
is SATA3 connector
supports SATA data cables
for internal storage devices
with up to 6.0 Gb/s data
transfer rate.
CPU Fan Connectors
(4-pin CPU_FAN1)
(see p.6, No. 3)
is motherboard
provides a 4-Pin CPU fan
(Quiet Fan) connector. If
you plan to connect a 3-Pin
CPU fan, please connect it
to Pin 1-3.
Serial Port Header
(9-pin COM1)
(see p.6, No. 8)
is COM1 header supports
a serial port module.
Chassis Intrusion Header
(2-pin CI1)
(see p.6, No. 7)
is motherboard supports
CASE OPEN detection
feature that detects if the
chassis cove has been
removed. is feature
requires a chassis with
chassis intrusion detection
design.
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
headers and connectors. Placing jumper caps over the headers and connectors will cause
permanent damage to the motherboard.
CPU_F
FAN_VOLTAGE
GND
AN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
1
Signa
l
GND
1
RRI#1
CCTS#1
RRTS#1
DDSR#1
GND
DDTR#1
TTXD#1
RRXD#1
DDCD#
1
