4.4 Tools

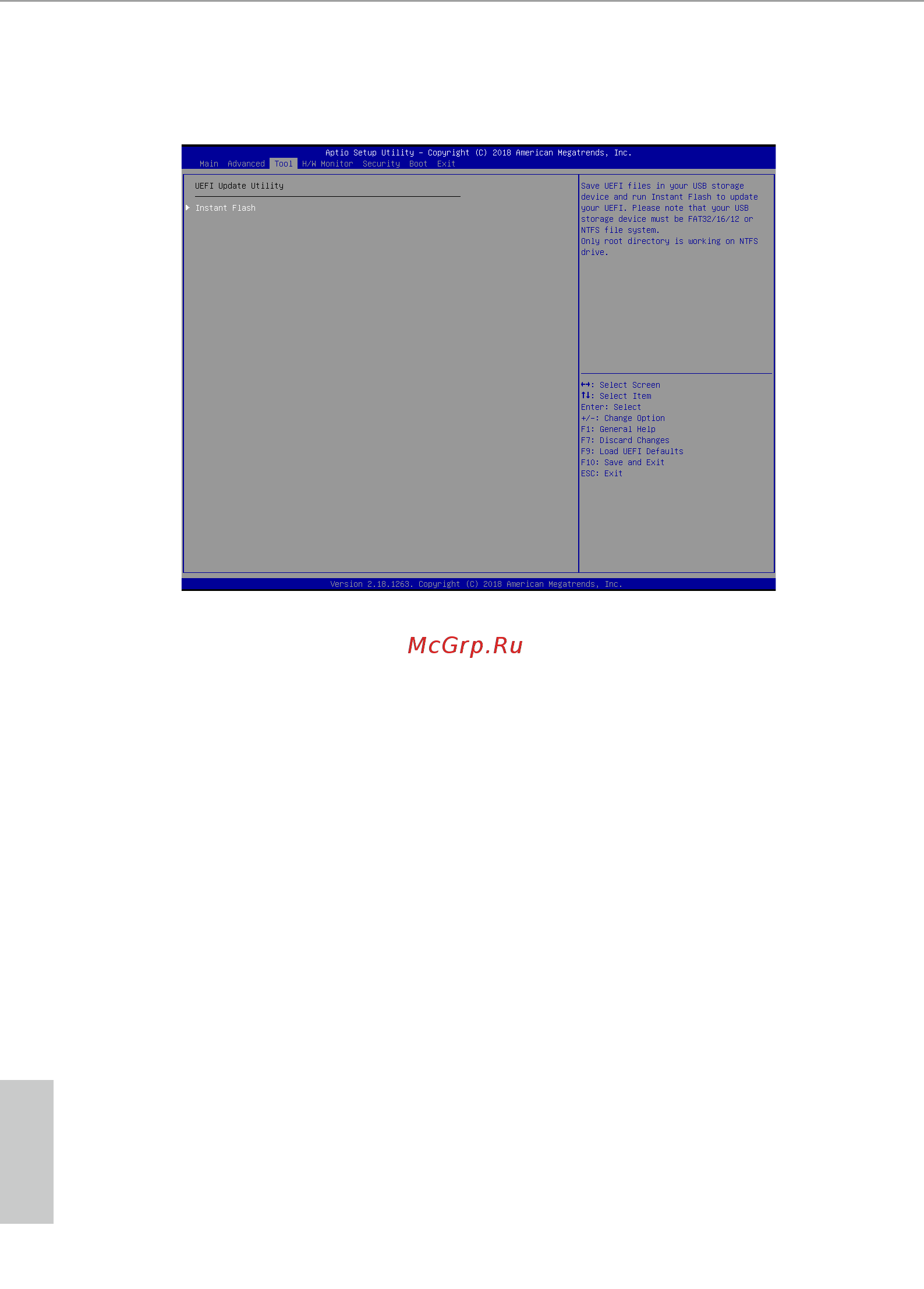

Instant Flash
Save UEFI les in your USB storage device and run Instant Flash to update your
UEFI.
