ASRock Jupiter-H310 [37/53] Dram configuration
![ASRock Jupiter-H310 [37/53] Dram configuration](/views2/1692955/page37/bg25.png)
32 33
English

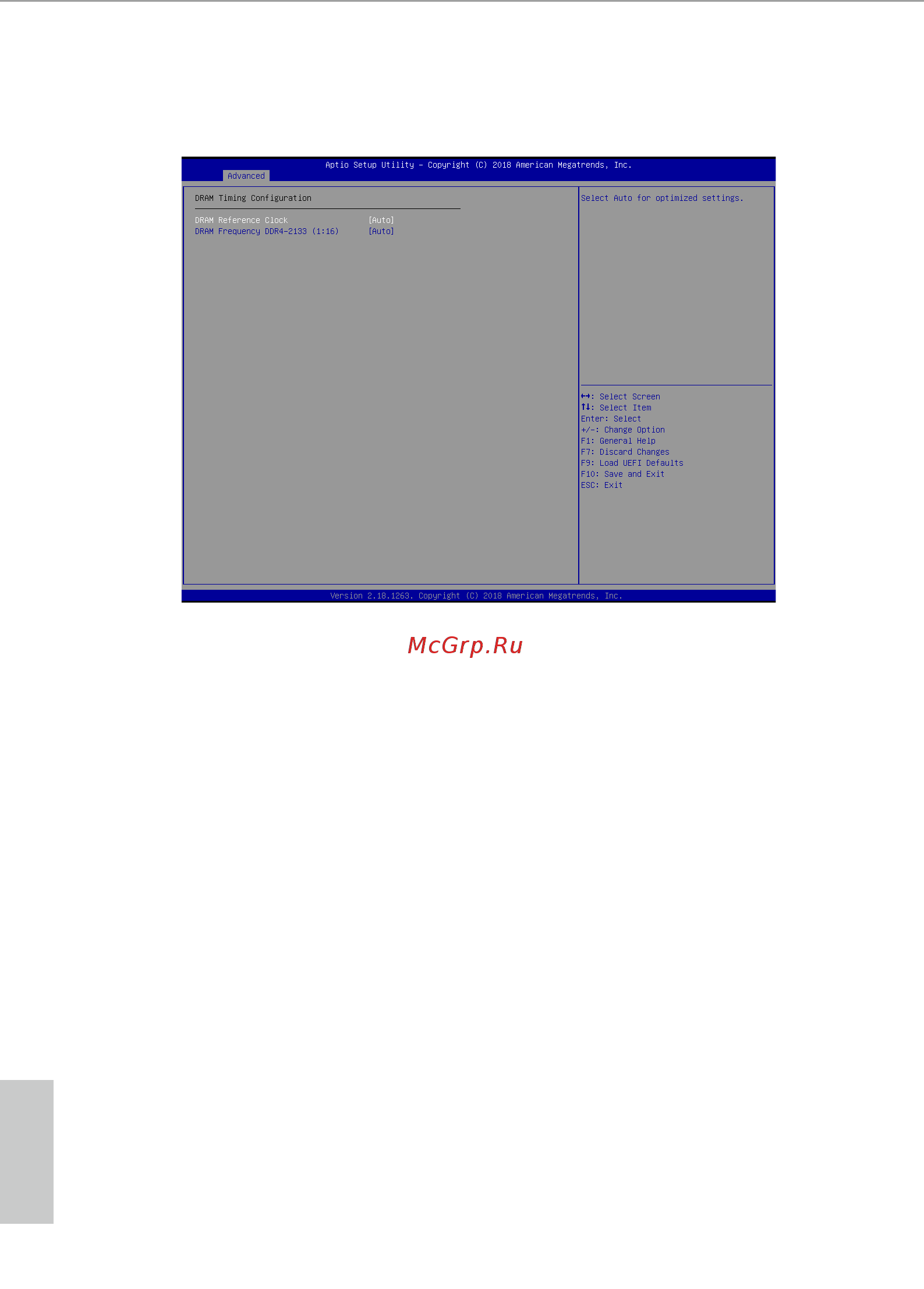

4.3.2 DRAM Conguration
DRAM Timing Conguration
DRAM Reference Clock
Select Auto for optimized settings.
DRAM Frequency
If [Auto] is selected, the motherboard will detect the memory module(s) inserted
and assign the appropriate frequency automatically.
