ASRock Jupiter-H310 [26/53] English
![ASRock Jupiter-H310 [26/53] English](/views2/1692955/page26/bg1a.png)
20 21
English
H310D4-P1
A

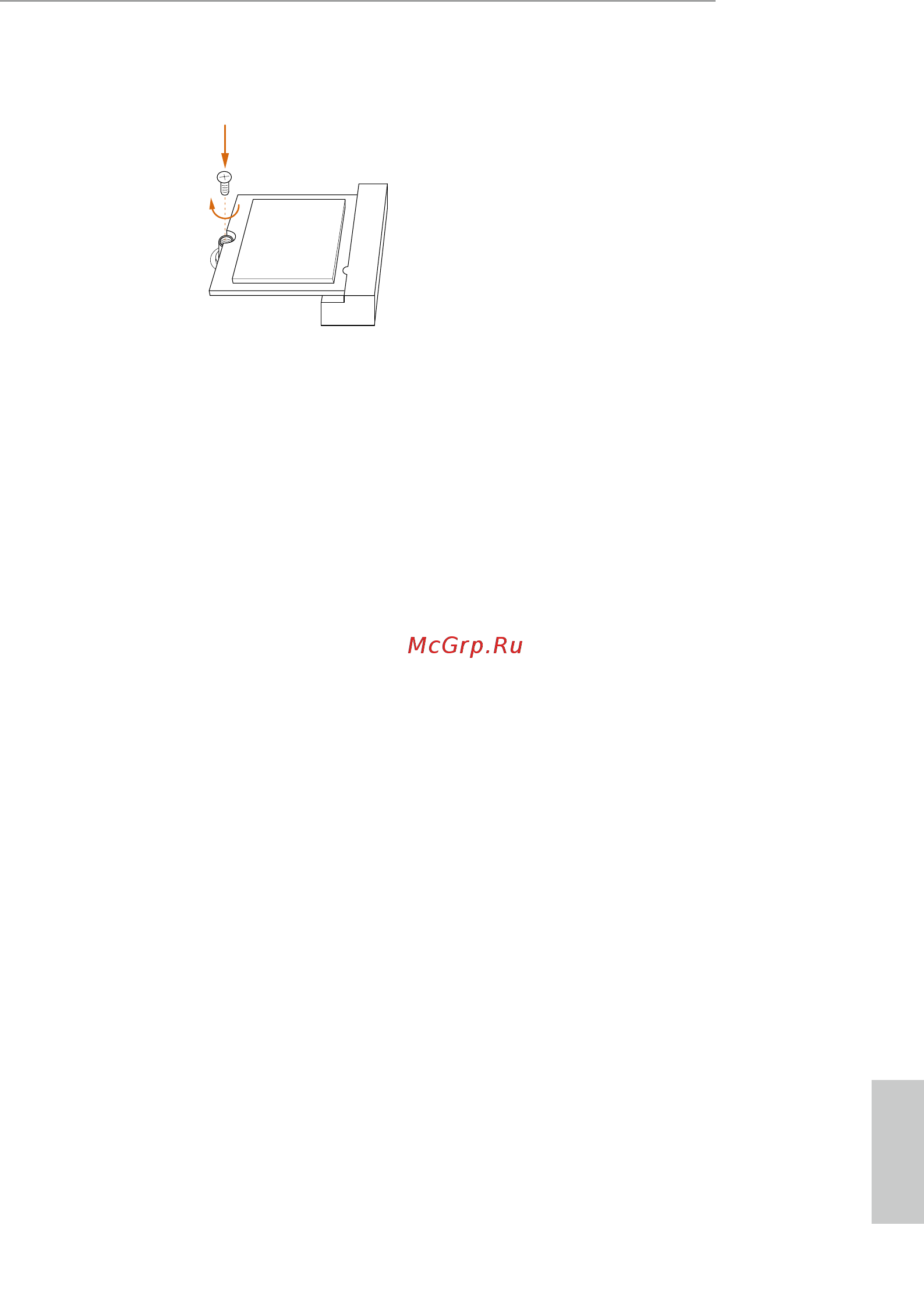

Step 4
Tighten the screw with a screwdriver
to secure the module into place.
Please do not overtighten the screw as
this might damage the module.
