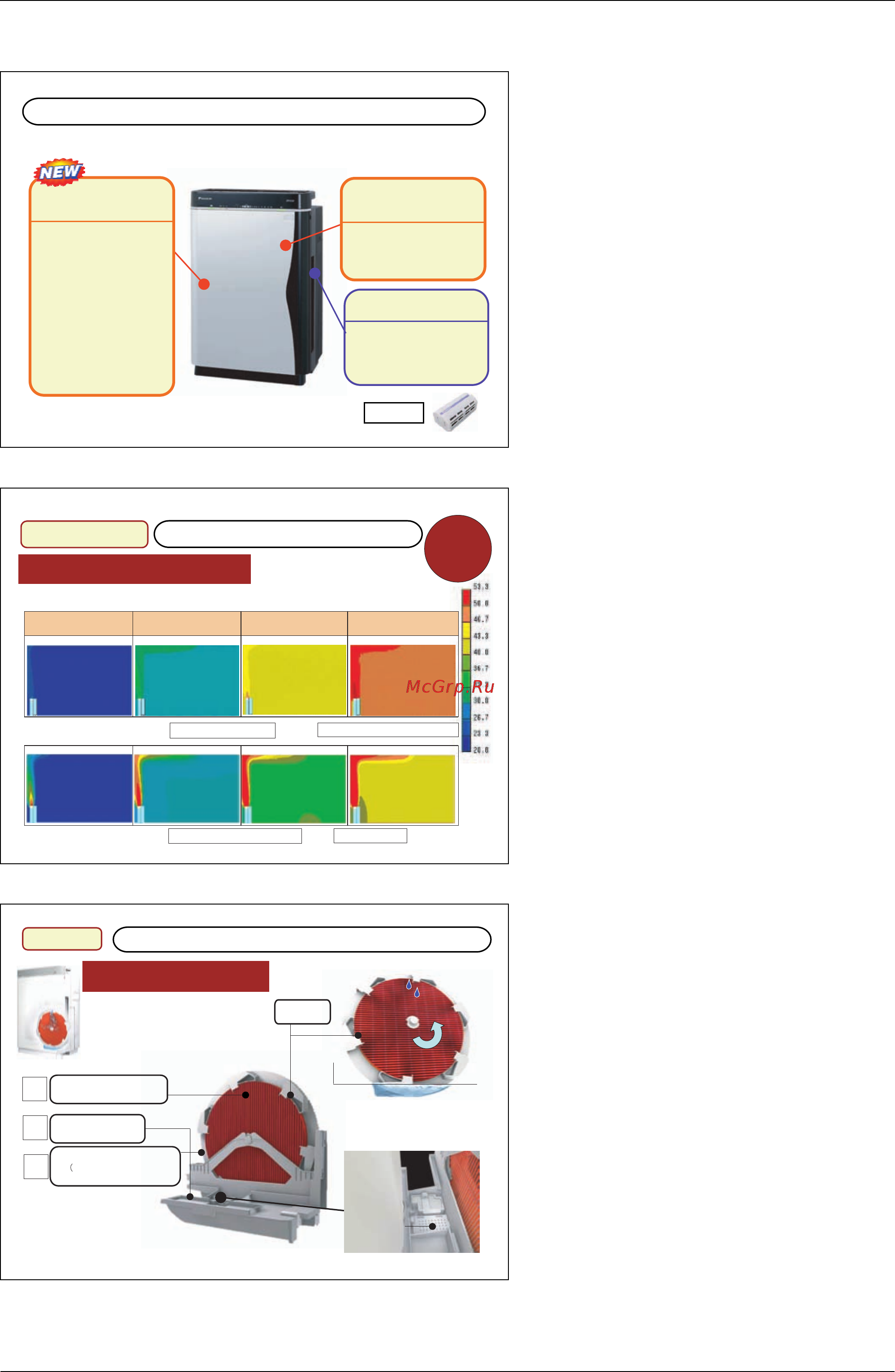

Introduction SiBE81-909
2 Humidifying Air Purifier
1. Introduction
Test condition: Air test room
(W 3700 × D 3700 × H 2400)
∗
equivalent to 13 m
2
room
Room temperature: 21°C measured with an existing
model, 27°C with a new model
“Clean Humidification”and “High Airflow Rate Purifying”are realized.
Full Deodorization
Of course, deodorization is [full-scale]
Full Humidification
3 features for “Clean
Humidification”
Antibacterial humidifying filter
Silver ion antibacterial effect
Unsoaking humidifying rotor
Max. humidifying
amount: 600mL/h
(Vaporization humidifying
system)
Slim tank capacity: 4L
Double path mixing structure
Photocatalyst & Streamer
discharge
+ Recyclable deodorizing
cartridge
Full Dust Collection
High airflow rate suction dust
collection: 7.5m
3
/min
High hydrostatic thin-type fan is
equipped .
Both “full humidification”and “full dust collection”can be used.
Recyclable
Speedy and rich humidifying into all corners
Moisture flows to the upper space.
Slow speed
Full Humidification & Full Dust
Collection
At start 5 min. later 10 min. later 15 min. later
Start humidifying evenly
Full moisturizing of the living space
When humidifying in turbo mode
(vaporization system)
When humidifying in low mode
(vaporization system)
Humidification comparison with the
humidifier
Humidifying the room into all corners
by high airflow rate and new
vaporization humidifying system
Optimum
humidificat
ion can be
obtained only
by 15-miniute
operation
Clean design: 3 features for Clean Humidification
How to feed water
Full humidification
Silver ion eliminates bacteria from
water in the tray.
Silver ion
antibacterial effect
Waterwheel
Antibacterial humidifying
filter
Supply water
to the filter
Adsorbs water
Water comes from the tank to the tray.
Using the proprietary [water feeding
system with waterwheel], the humidifying
filter does not soak in water, so that the
mildew proliferation and bad odor are
restrained.
Rotate
Water surface
Unsoakinghumidifying rotor
Waterwheel built-in
humidifying structure)
1
2
3
Water tank
Silver ion
