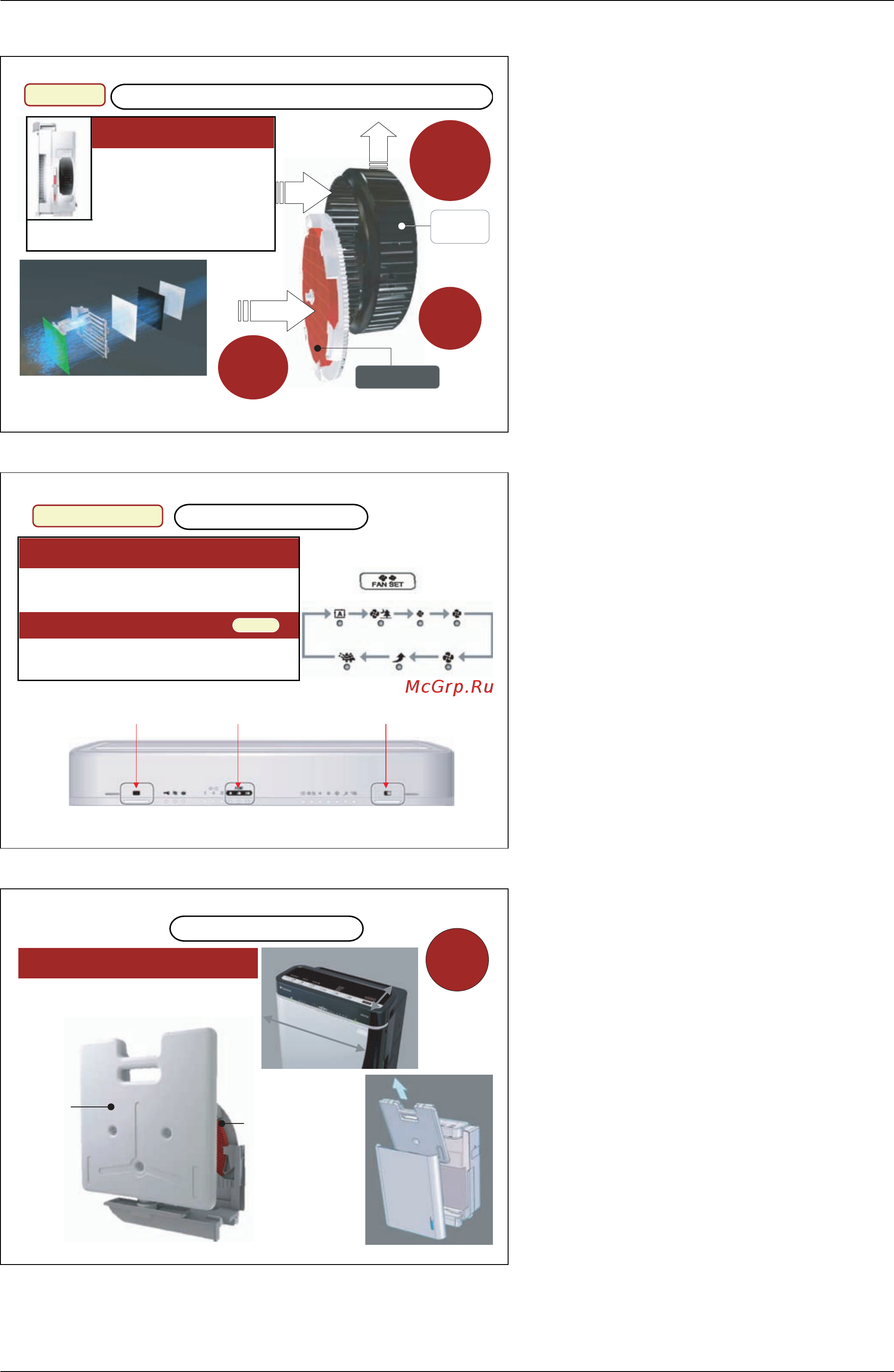

SiBE81-909 Introduction
Humidifying Air Purifier 3
New Design: High hydrostatic thin-type powerful fan
“Double Path Mixing Structure”
Fan
thickness
20mm
thinner than
the existing
model
Airflow
temperature
increases
2˚C
(Compared with
a model without
double path
mixing structure)
Newly designed thin-type fan
Vaporized air and non-vaporized air
are mixed and discharged by shifting
the humidifying filter from the fan.
This design prevents drop of the
airflow temperature and restrains
drop of the room temperature.
When
humidifying
in turbo mode
50 dB
(7.5m
3
/min)
Full humidification
High
hydrostatic
thin-type fan
Humidifying filter
Humidified air
Dry air
Air to be humidified
Electric dust collection area is positioned in front of
the humidifying rotor where little pressure loss is
observed and quiet sound is heard even if the
humidifying operation is performed.
When automatic airflow mode is selected, humidity, dust or odor
sensor detects the air condition in the room and optimal operation
is performed within a mode range from quiet to high.
Simple and sensitive settings are available.
[Top operation area]
[Monitor display]
<Pollen> operation
In this operation , pollens are caught before they drop on
the floor with gentle air draft by switching airflow between
“Standard”and “Low”.
Air purification
Full Humidification & Full Dust
Collection
6-step airflow mode (Top in the market)
Sensitive Control
(Automatic) (Quiet) (Low) (Standard)
(Pollen) (Turbo) (High)
Dust sensor lamp
Odor sensor lamp
Humidity indicator lamp
“Slim Tank”
Compact Design
The water tank is positioned at the front.
Structure for easier maintenance
[In maintenance]
Structure for easier
removal
Water tank
Compact
No.1
No.1
∗
∗ Comparison of a
new model and an
air purifier with the
humidifier (class:
airflow rate =
7.5m
3
/min.)
(As of July 16, 2008)
Unsoaking
humidifying rotor
395mm
mm
268mm
mm
