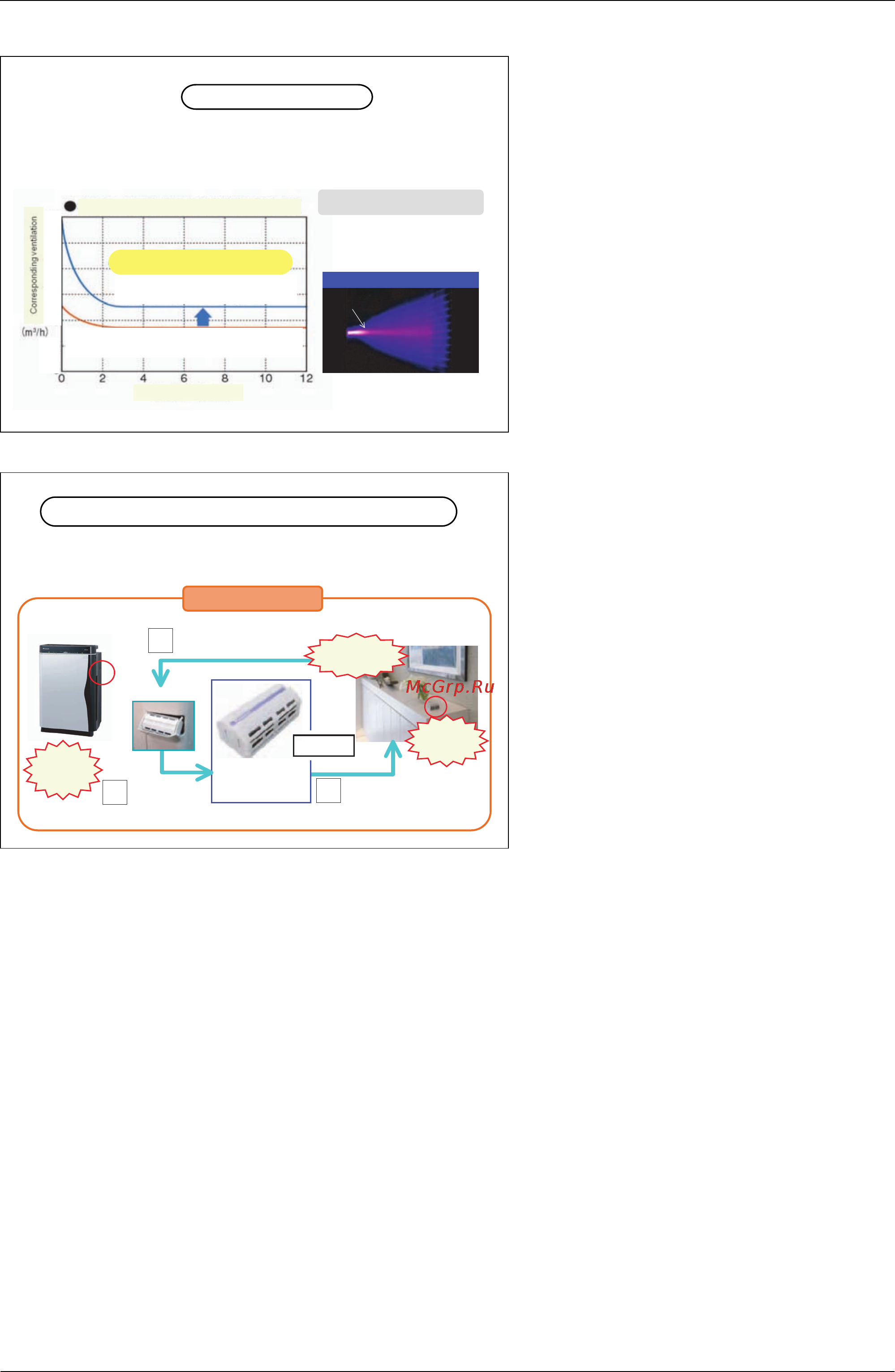

Introduction SiBE81-909
4 Humidifying Air Purifier
[Test Conditions]
•Airflow rate: 7.5m
3
/min
•Test room: About 10m
2
space
•Conforming to WG standard for reviewing the MLIT
evaluation test method of sick building overall
project
∗
Corresponding value when the mechanical
ventilation specified in the building standard law is
carried out.
Full Deodorization
[Photocatalyst & Streamer Discharge]
technique strongly decomposes and
removes odor, formaldehyde and so on.
The existing air purifier model of 54m
3
/h
=Corresponding ventilation value of
43m
2
room
56m
3
/h: corresponding ventilation value
46m
2
room
Improved removal performance
Improved removal performance
Extraordinary decomposing force
approved by academy
Area where fast electron is generated
Streamer discharge
Electron is discharged in three-dimensionally
Streamer discharge is a prominent Daikin
technology, which shows more than 1,000 times
decomposing force for the general glow
discharge, and gets [A prize of the Institute of
Electrostatics Japan].
Catalyst can be self-generated, so that
deodorizing filter required no replacement
Formaldehyde removal
amount and
equivalent ventilation
corresponding value:
46m
2
room∗
55
60
65
50
70
Duration of service (month)
Formaldehyde Removal Performance (Corresponding ventilation)
Washable and recyclable deodorizing cartridge
“Washable and recyclable deodorizing cartridge” which is regenerated
by the streamer decomposing force is a standard equipment
Set in a smelly place.
The deodorizing effect is
restored over one night.
The cartridge
can be set in
various
places.
∗ This cartridge is made of the components
same as “deodorizing catalyst” equipped with
the air purifier.
1
3
At the entrance
The cartridge will be
regenerated in the special
pocket after using it for 2
months.
2
New Product
Streamer Pocket
Remove the odor
slowly.
Recyclable
deodorizing cartridge
which can be washed
Repeatedly
reusable
cartridge
System Chart
Deodorizing
agent is
regenerated
by the
Streamer
force
Recyclable
