ASRock X399D8A-2T [16/84] English
![ASRock X399D8A-2T [16/84] English](/views2/1694218/page16/bg10.png)
10 11
English

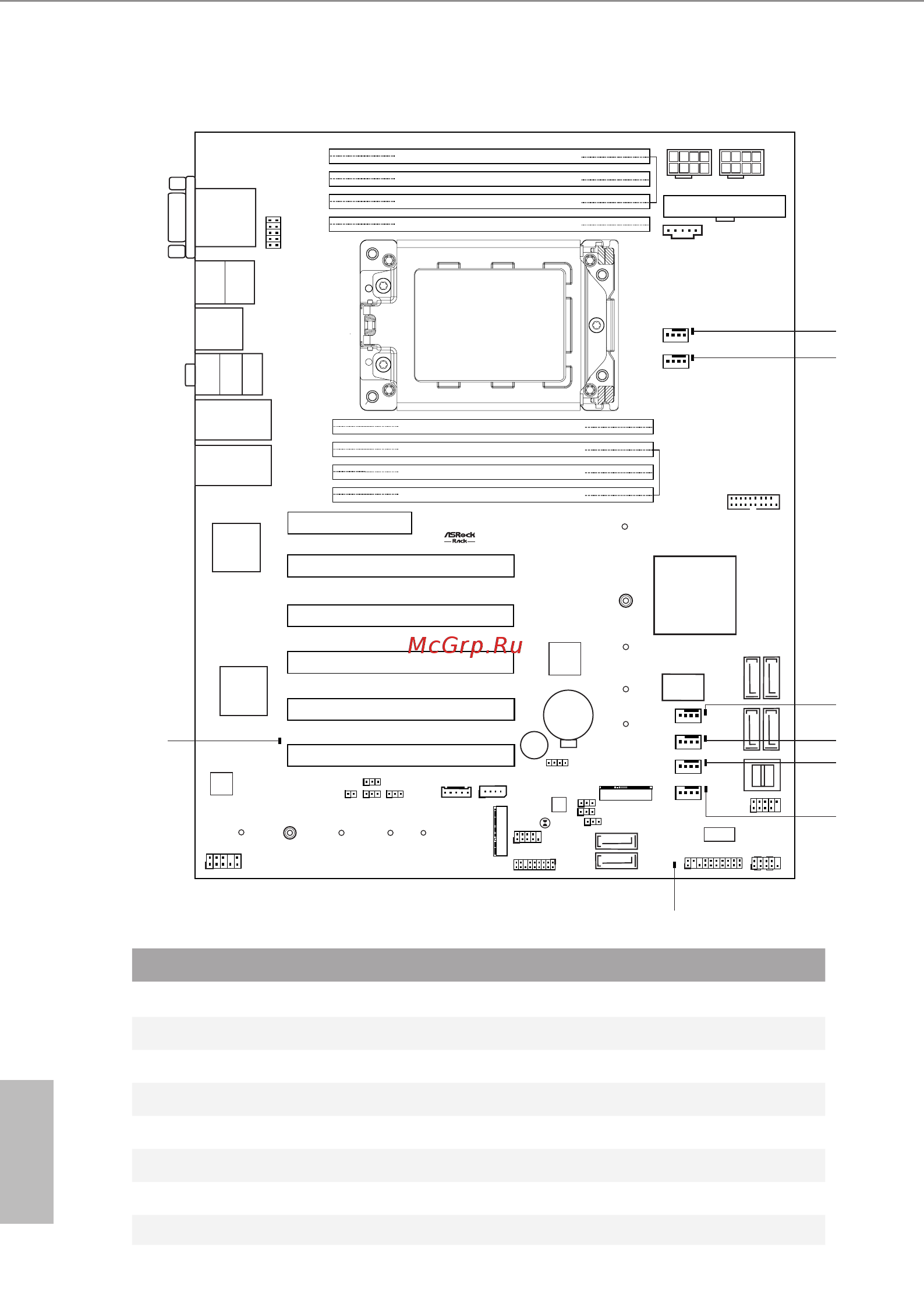

1.5 Onboard LED Indicators
ATXPWR1
DDR4_B1 (64 bit, 288-pin module), Blue
DDR4_B2 (64 bit, 288-pin module), White
DDR4_A1 (64 bit, 288-pin module), Blue
DDR4_A2 (64 bit, 288-pin module), White
DDR4_C2 (64 bit, 288-pin module), White
DDR4_C1 (64 bit, 288-pin module), Blue
DDR4_D2 (64 bit, 288-pin module). White
DDR4_D1 (64 bit, 288-pin module), Blue
PCIE4
PCIE6
PCIE7
PCIE5
RoHS
PCIE3
PCIE2
1
X399D8A-2T
AMD
X399
1
HDLED RESET
PLED PWRBTN
1
1
(Red)
(Red)
NUT30
NUT42NUT60NUT80
M2_1
NUT110
1
1
1
1
1
1
FAN3
FAN4
FAN5
FAN6
NUT110_2
M2_2
NUT30_2NUT42_2NUT60_2
NUT80_2
1
FAN1
FAN2
1
1
1
1
1
1
2
3
4
5
6
7
8
No. Status Description
1 Amber FAN1 failed
2 Amber FAN2 failed
3 Amber FAN3 failed
4 Amber FAN4 failed
5 Amber FAN5 failed
6 Amber FAN6 failed
7 Green STB PWR ready
8 Green BMC heartbeat LED
