X399D8A-2T
10 11
English

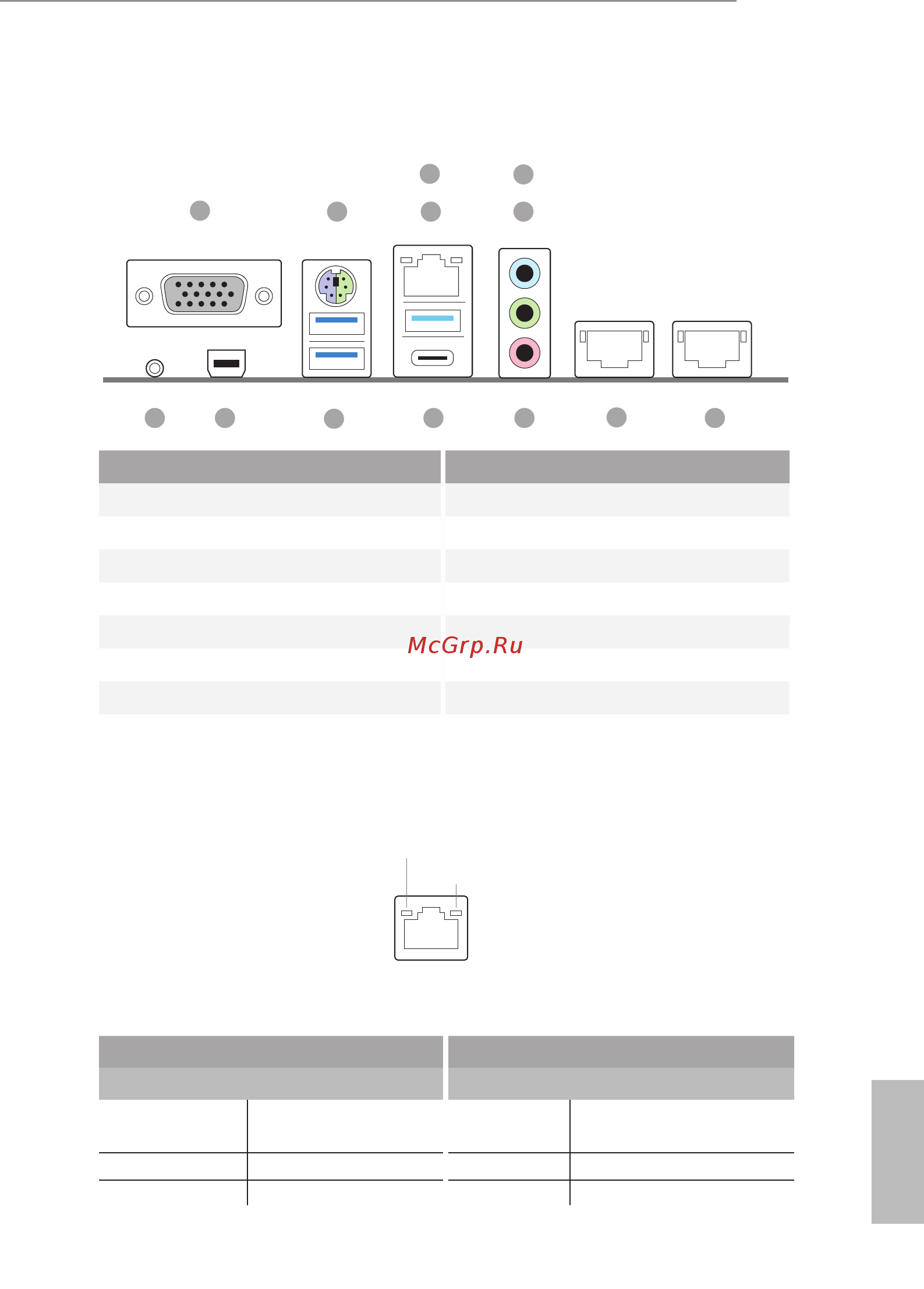

1.6 I/O Panel
No. Description No. Description
1 UID Switch (UID1) 8 LAN RJ-45 Port (IPMI_LAN)**
2 Optical SPDIF Out Port 9 Line In (Light Blue)
3 VGA Port (VGA1) 10 Front Speaker (Lime)
4 USB 3.1 Gen1 Ports (USB3_1_2) 11 Microphone (Pink)
5 PS/2 Mouse/Keyboard Port 12 LAN RJ-45 Port (LAN1)*
6 USB 3.1 Gen2 Port (USB31_TC_1) 13 LAN RJ-45 Port (LAN2)*
7 USB 3.1 Gen2 Port (USB31_TA_1)
LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1G bps connection
3
4
1
2
6
7
8
12
13
9
10
11
5
ACT/LINK LED
SPEED LED
LAN Port
