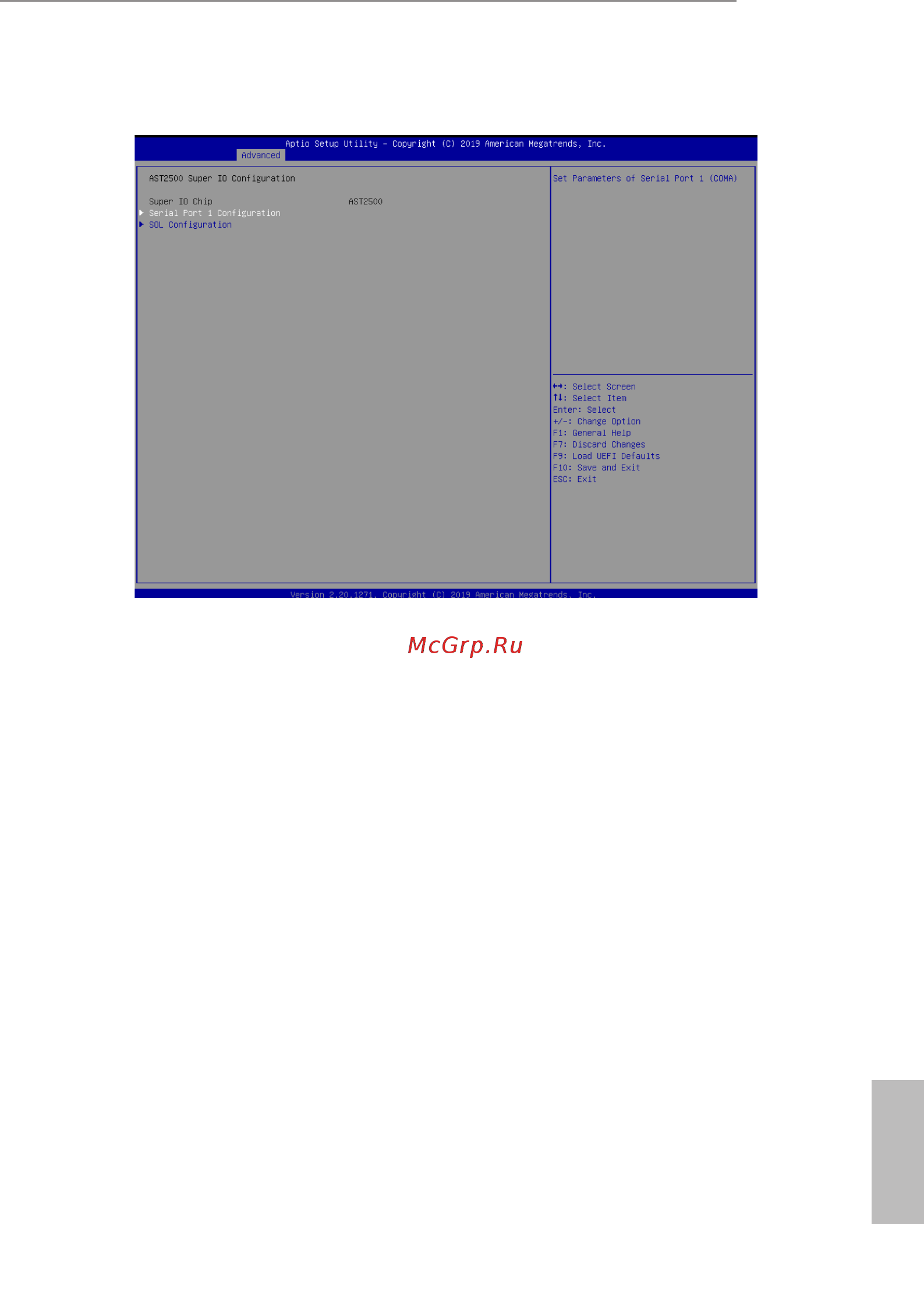

3.4.5 Super IO Conguration
Serial Port 1 Conguration
Use this item to set parameters of Serial Port 1 (COM1).
Serial Port
Use this item to enable or disable the serial port.
Serial Port Address
Use this item to select an optimal setting for Super IO device.
SOL Conguration
Use this item to set parameters of SOL.
SOL Port
Use this item to set parameters of SOL.
Serial Port Address
Use this item to select an optimal setting for Super IO device.
