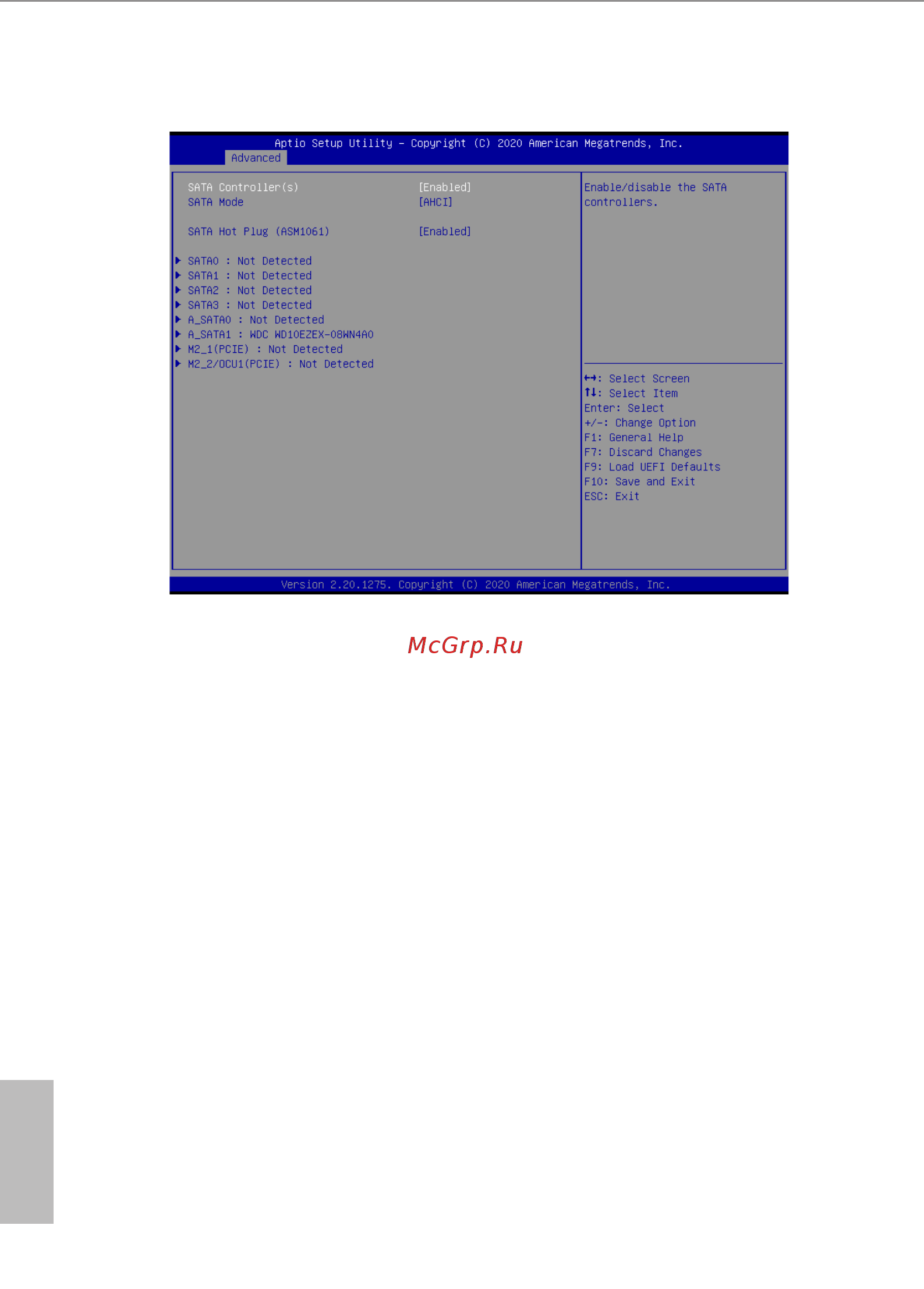

3.4.3 Storage Conguration
SATA Controller(s)
Use this item to enable or disable the SATA controllers.
SATA Mode
AHCI: Supports new features that improve performance.
RAID: Combine multiple disk drives into a logical unit.
SATA Hot Plug (ASM1601)
SATA Hot Plug (ASM1061 A_SATA0_1) Enable/Disable Control.
