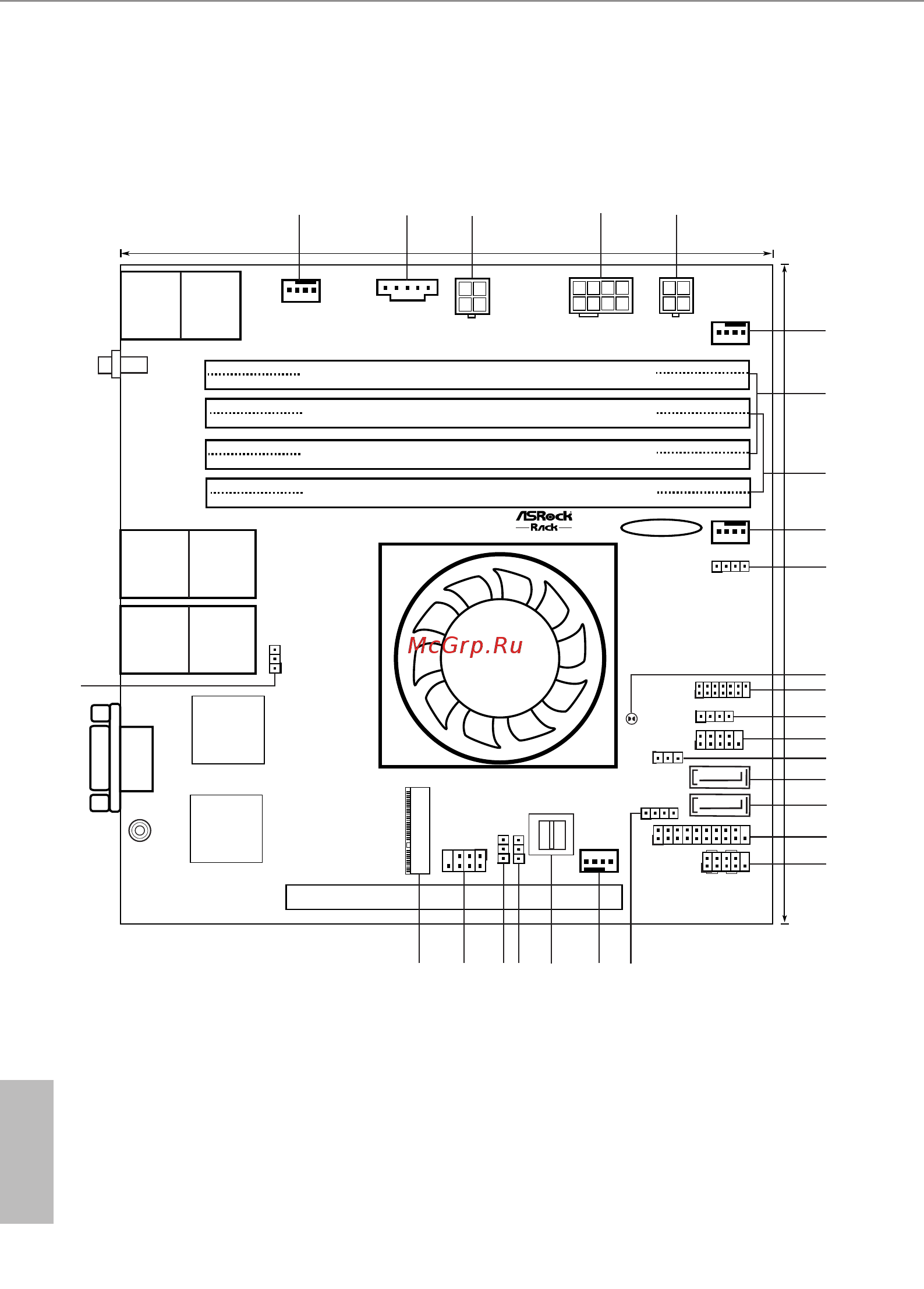

1.4 Motherboard Layout
CH0_A1 (64 bit, 288-pin module, Blue)DDR4,
CH0_A2 (64 bit, 288-pin module, White)DDR4,
17.0cm (6.7 in)
17.0cm (6.7 in)
5
7
6
FAN3
TPM1
AUX_PANEL1
SATAPWR1
1
HDLED RESET
PLED PWRBTN
PANEL1
1
SATA_4
CH1_B1 (64 bit, 288-pin module, Blue)DDR4,
CH1_B2 (64 bit, 288-pin module, White)DDR4,
8
1
PSU_SMB1
9
FAN1
10
BAT1
11
USB_1
SATA_5
FAN4
NUT80
M2_1
D1622D4I
D1600D4I-2L2T
PCIE7
PECI1
1
VGA1
USB 3.2
Gen1
T: USB2
B: USB1
IPMI
LAN
UID1
LAN1
LAN2
1
12
14
13
15
16
17
18
19
20
21
22
25
27
11
SPEAKER1
1
1
CLRMOS1
USB3_3_4
11
23
AST2500
FAN2
ATX 12V1
SATA_0_3
1
CHA SSIS_ ID0
1
ME_ RECOV ERY1
1
SATA_SGPIO1
X557-AT2
LAN3
LAN4
1
LED_LAN3_4
2
3
24
1
26
ATXPWR1
HDDPWR1
4
(D1600D4I-2L2T only)
(D1600D4I-2L2T only)
(D1600D4I-2L2T only)
