ASRock D1622D4I [46/74] Super io configuration
![ASRock D1622D4I [46/74] Super io configuration](/views2/1694236/page46/bg2e.png)
40 41
English

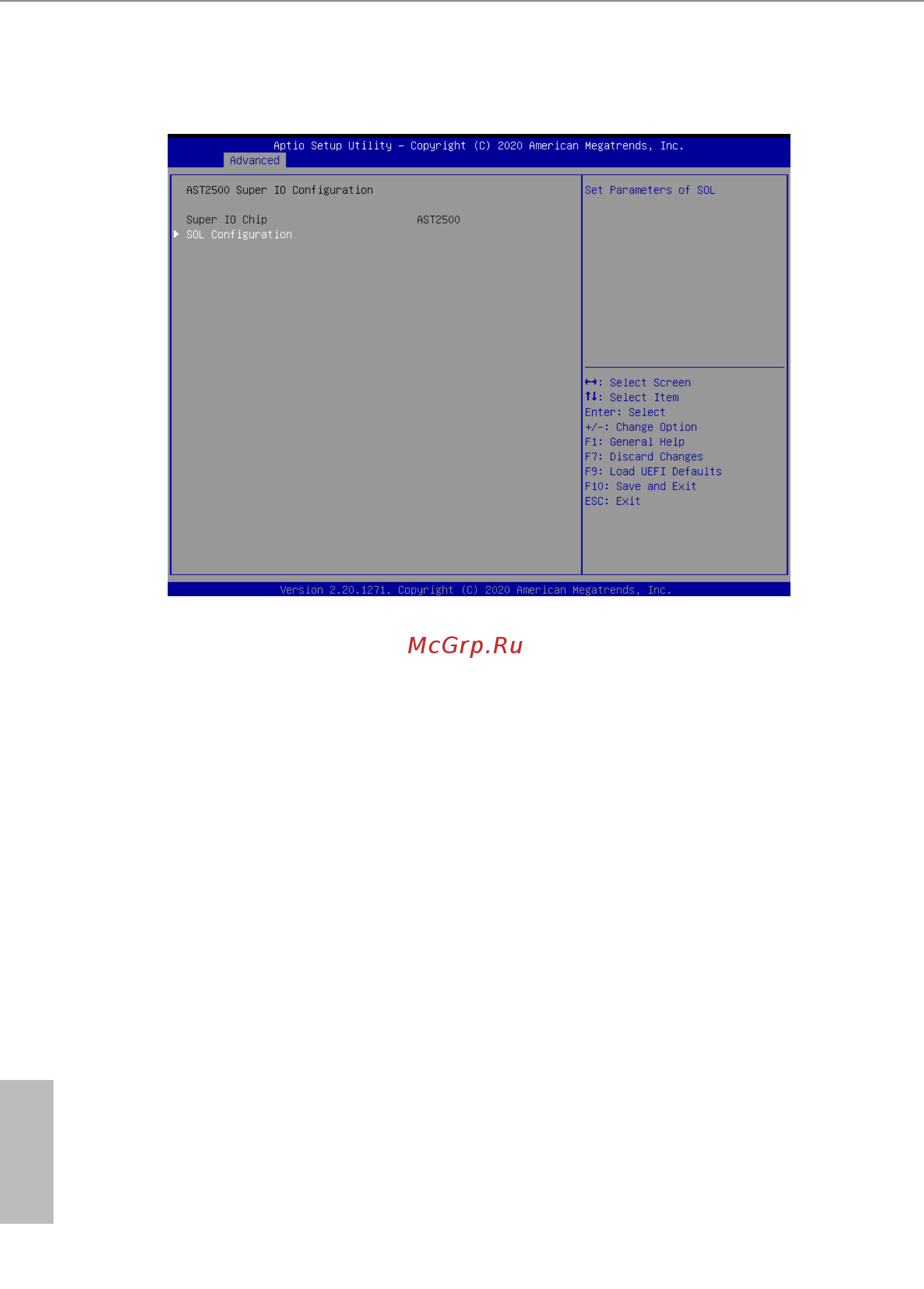

3.3.7 Super IO Conguration
SOL Conguration
Use this item to set parameters of SOL.
Serial Port
Use this item to enable or disable the serial port (COM).
Change Settings
Use this item to select an optimal setting for Super IO device.
