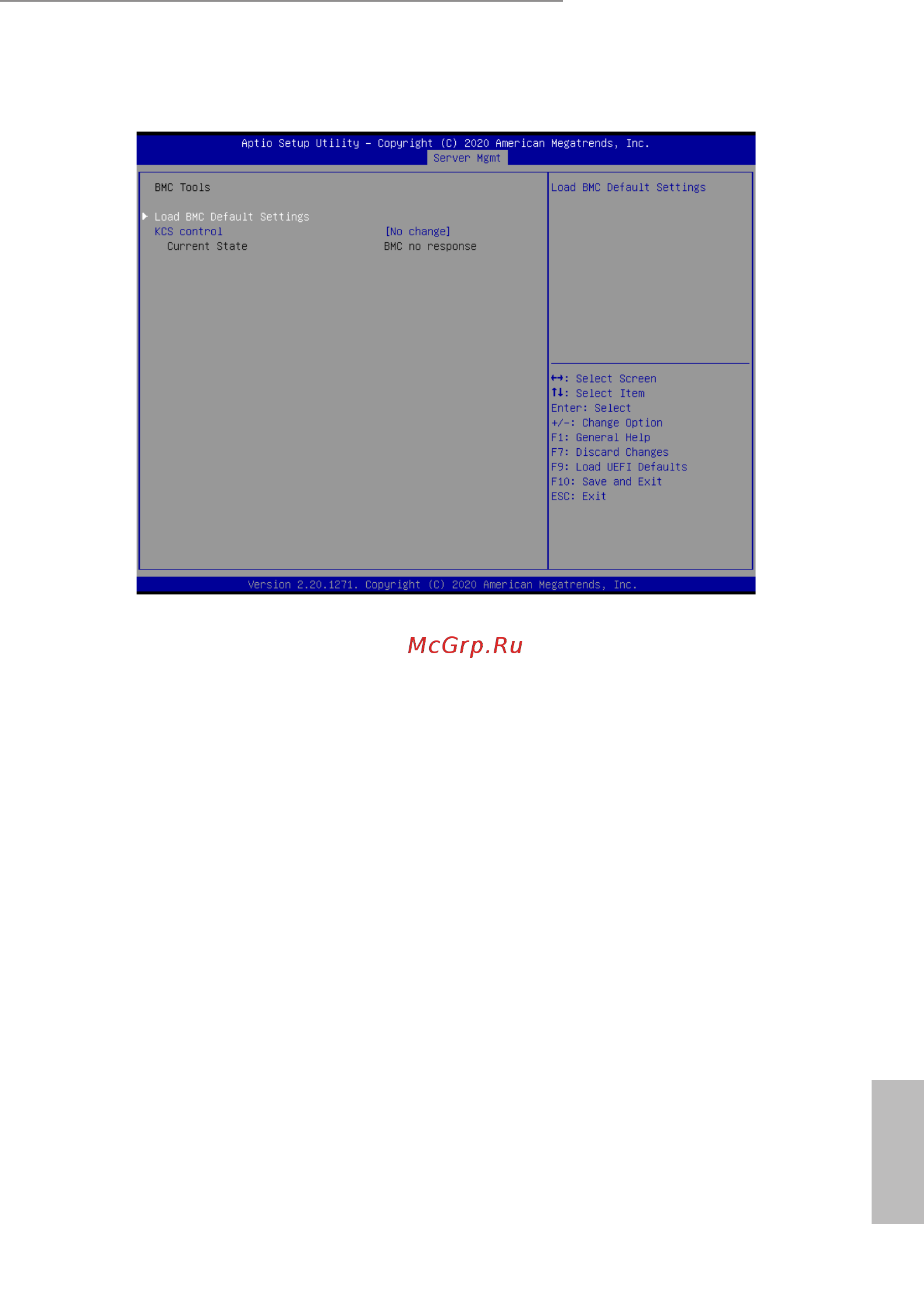

3.7.3 BMC Tools
Load BMC Default Settings
Use this item to Load BMC Default Settings.
KCS Control
Use this item to congure KCS Settings.
