EPC621D4I-2M / EPC621D6I
34 35
English
Setting wrong values in this section may cause the system to malfunction.

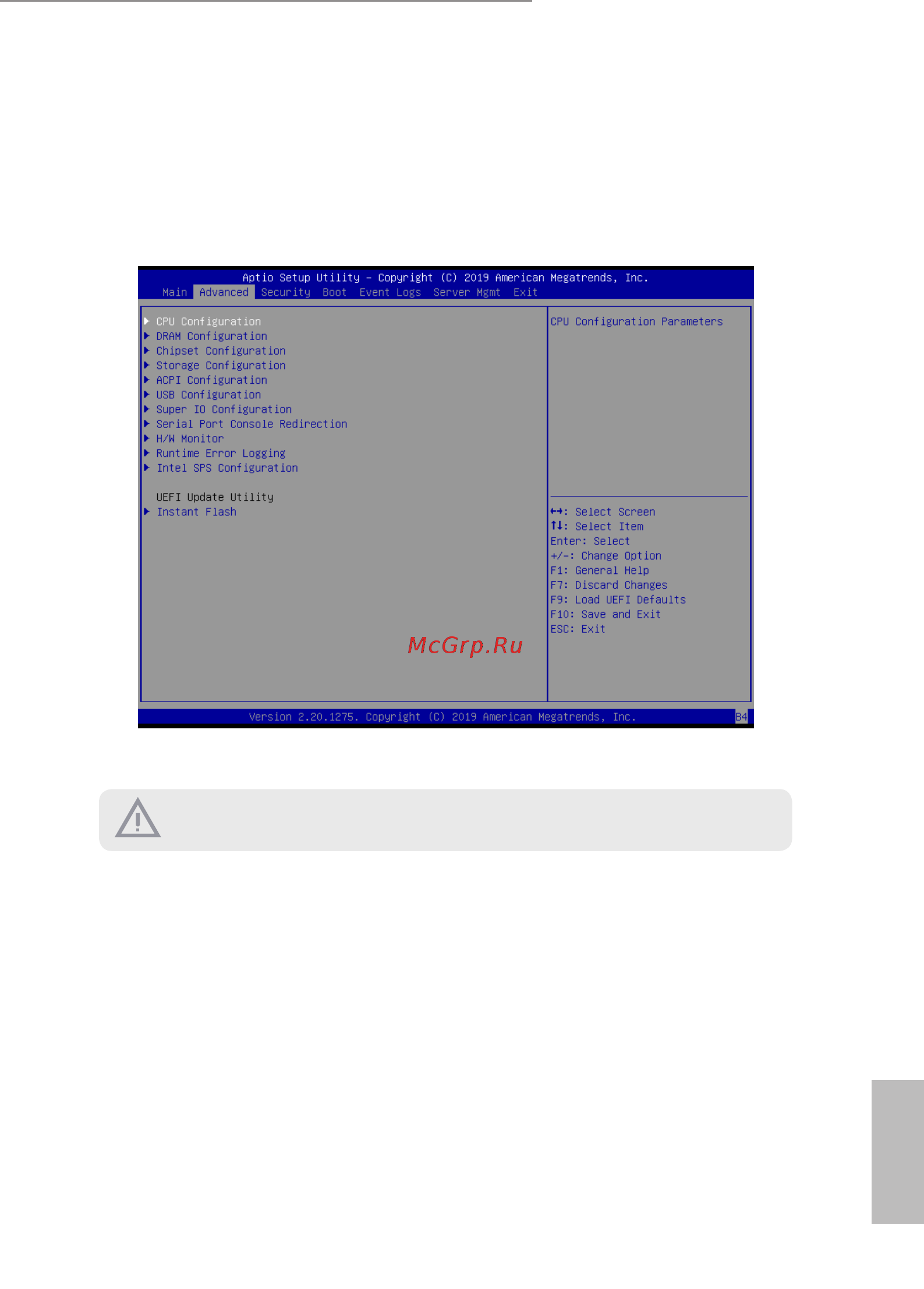

3.3 Advanced Screen
In this section, you may set the congurations for the following items: CPU Conguration,
DRAM Conguration, Chipset Conguration, Storage Conguration, ACPI Congura-
tion, USB Conguration, Super IO Conguration, Serial Port Console Redirection,
H/W Monitor, Runtime Error Logging, Intel SPS Conguration and Instant Flash.
