EPC621D4I-2M / EPC621D6I
44 45
English

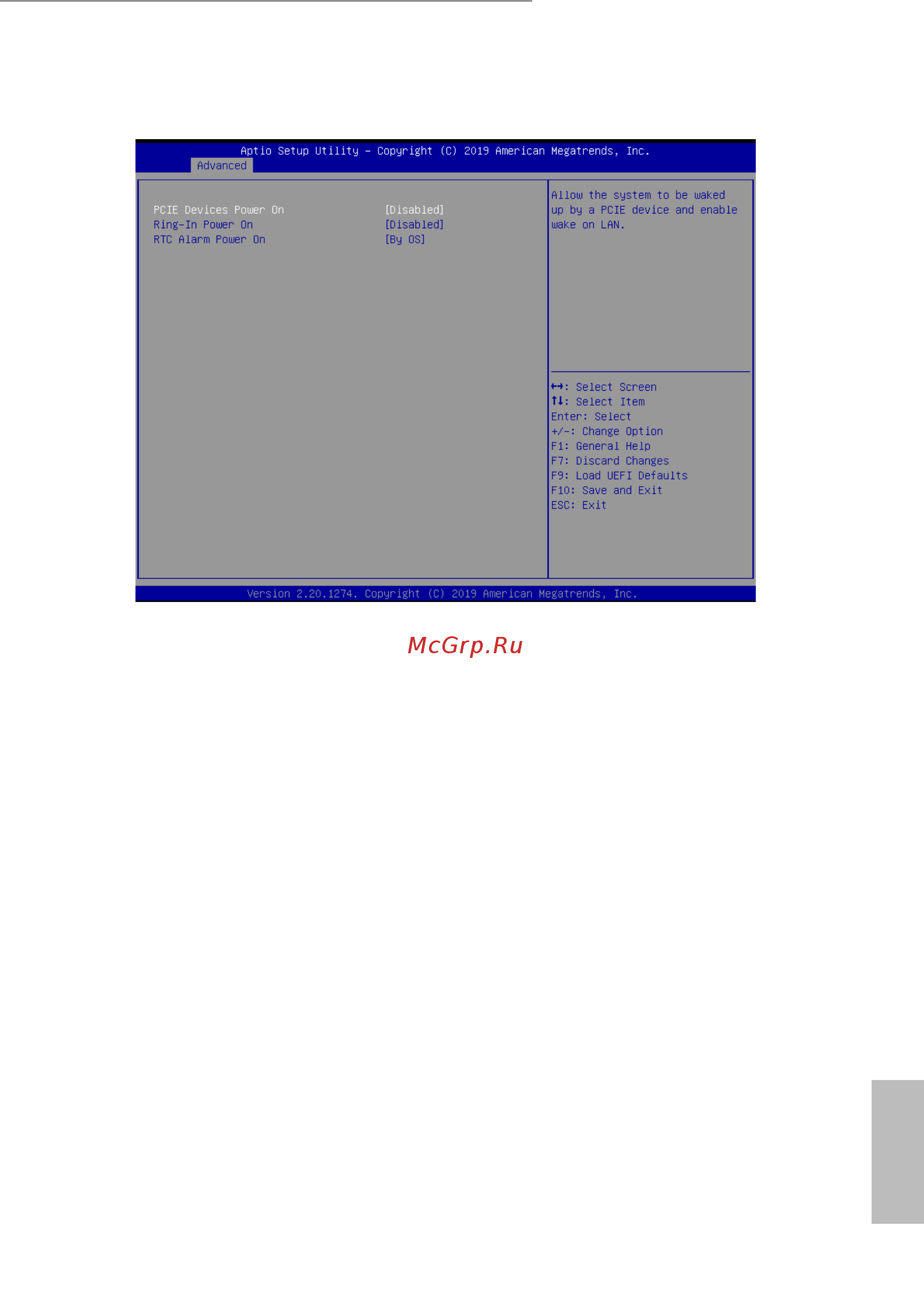

3.3.5 ACPI Conguration
PCIE Devices Power On
Use this item to enable or disable PCIE devices to turn on the system from the power-so-
o mode.
Ring-In Power On
Use this item to enable or disable Ring-In signals to turn on the system from the power-
so-o mode.
RTC Alarm Power On
Use this item to enable or disable RTC (Real Time Clock) to power on the system.
