EP2C612D16FM2
10 11
English
6
5
3
2
4
1
7
8

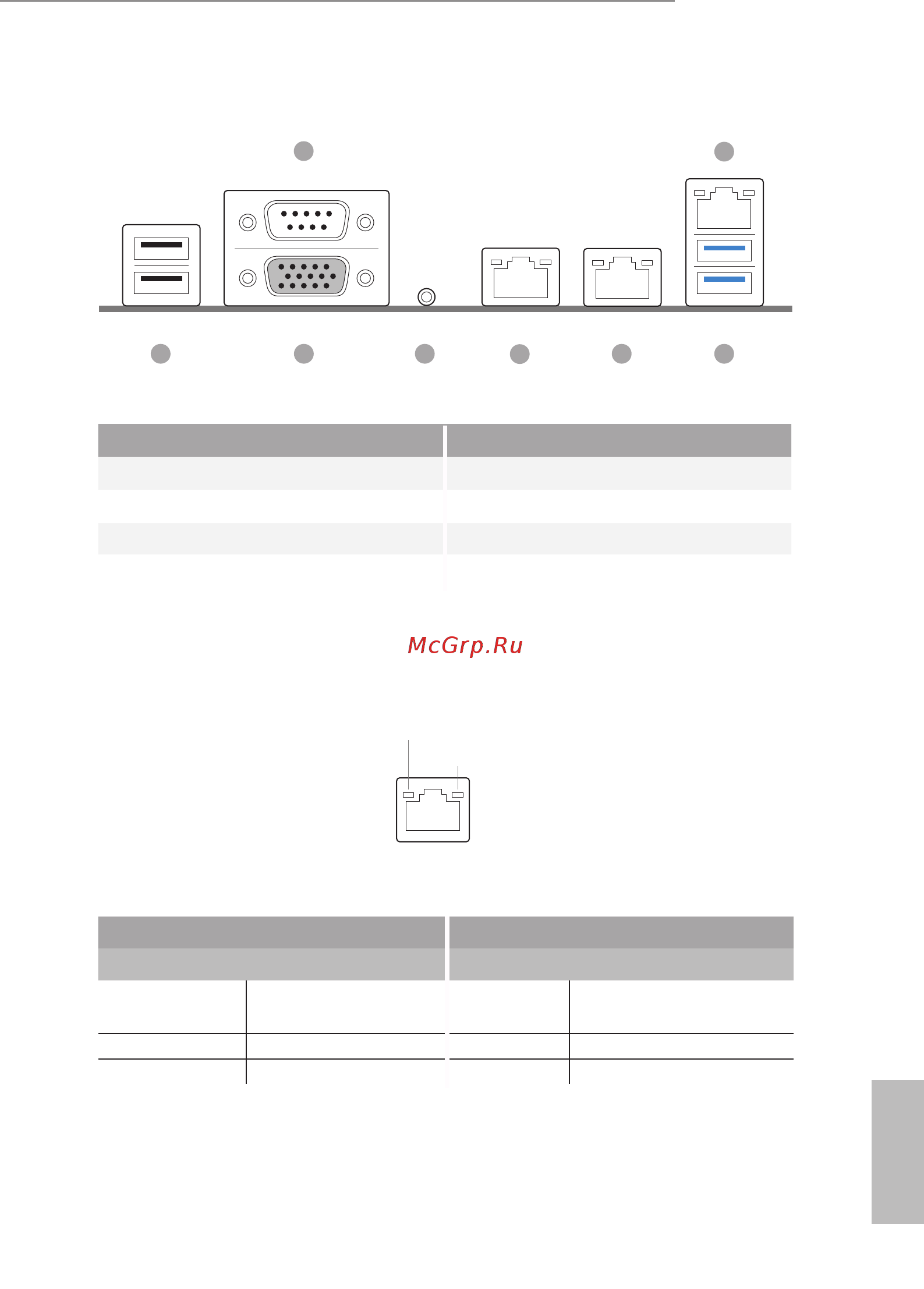

1.6 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB_1_2) 5 LAN RJ-45 Port (LAN1)**
2 Serial Port (COM1) 6 LAN RJ-45 Port (LAN2)**
3 VGA Port (VGA1) 7 LAN RJ-45 Port (IPMI_LAN)*
4 UID Switch (UID) 8 USB 3.0 Ports (USB3_1_2)
LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
