EP2C612D16FM2
44 45
English

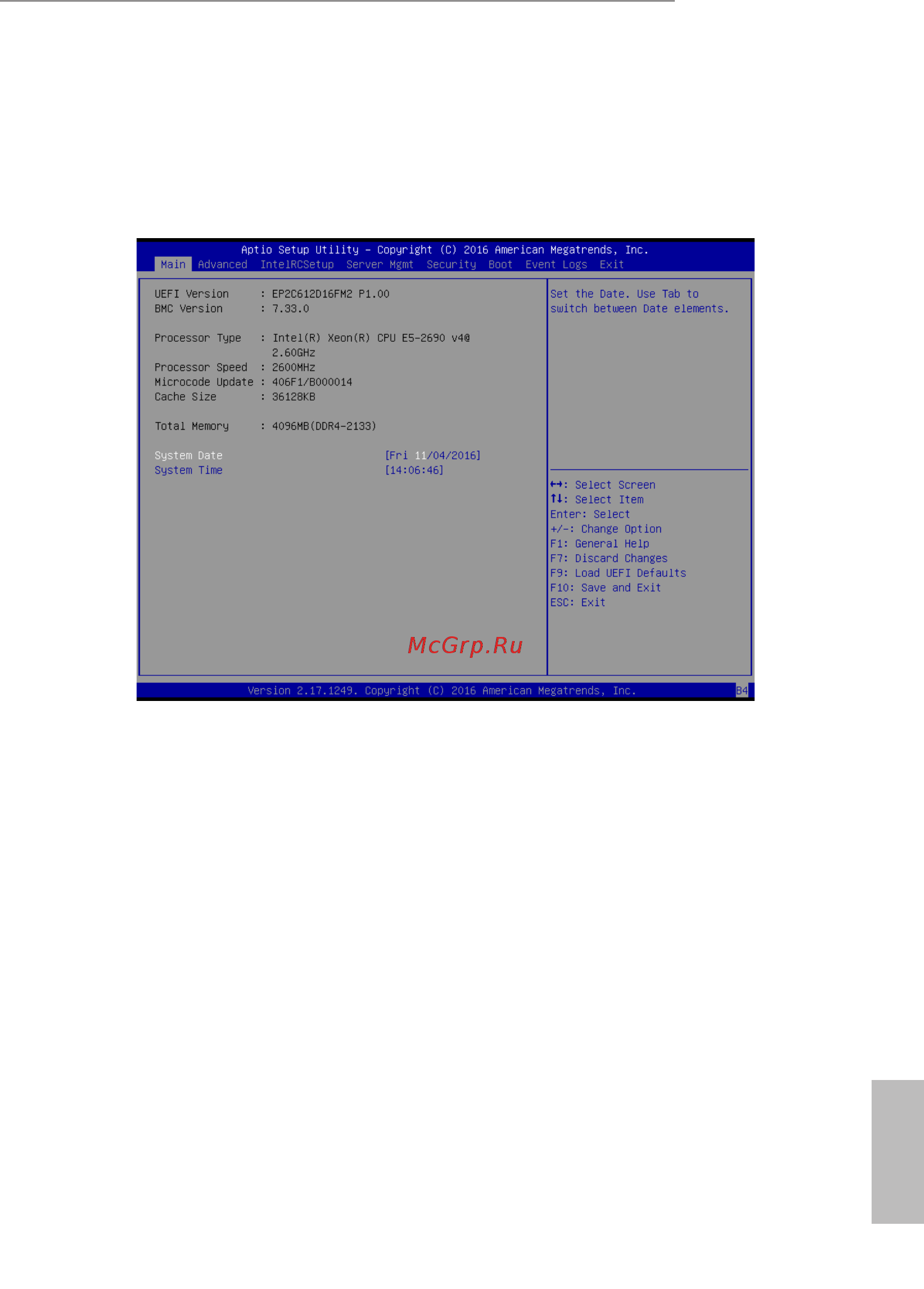

3.2 Main Screen
Once you enter the UEFI SETUP UTILITY, the Main screen will appear and display the
system overview. e Main screen provides system overview information and allows you
to set the system time and date.
